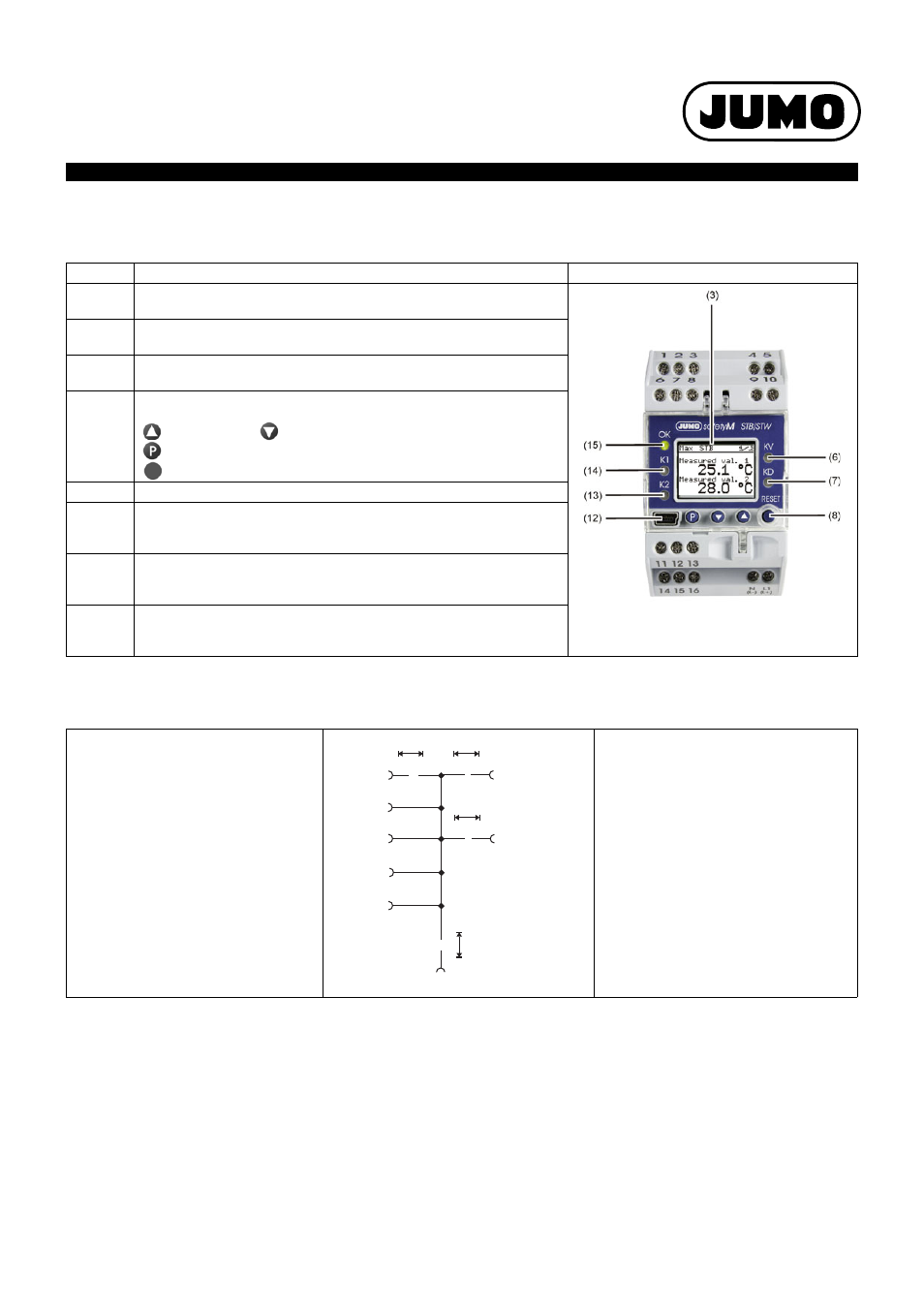

Display and control elements
Electrical isolation
Legend: Comment
3 LCD display
Black/white with background lighting 96 x 64 pixels
6 LED KV (yellow)
Is lit if the pre-alarm is triggered.
7 LED KD (yellow)
Is lit if the diagnostic processor has performed a switch-off
8 Keys
(can only be operated when the transparent hood is folded upward)
Increase value, Decrease value
Programming
RESET
12 Setup interface
13 LED K2 (red)
Is always simultaneously lid with K1 when errors occur
on analog input 1 or 2 or in the event of limit value exceedance
14 LED K1 (red)
Is always simultaneously lid with K2 when errors occur
on analog input 1 or 2 or in the event of limit value exceedance
15 LED OK
Green: Good range
Off: Error occurred
(1) Analog inputs
(3) Binary input
(5) Setup interface
(6) Display
(7) Analog output
(8) Voltage supply
(2) Relay output alarm
(4) Relay output pre-alarm
»
3700 V AC
»
3700 V AC
(1) (2)
(4)
(3)
(5)
(8)
(6)
(7)
»
3700 V AC
50 V DC
»
