IGBT Power Converter 200A [Patent No. EP1 126 591 B1] 02.08
41
5 Settings
Factory setting
The trimmer is set to approx. 20 %.
The signal output provided is a floating contact or an optocoupler, depending
on the extra code.
Type: relay
Type
optocoupler
In the case of a load fault, the floating contact drops out, or the collector-
emitter path of the optocoupler goes high-resistance.
The signal output is also active if the maximum temperature of the converter is
exceeded (overheat), if the safety cut-out in the power section has been
triggered or if the semiconductor fuse has blown (fuse).
k
factory setting
H
The smallest change in resistance that can be detected is 5 % of
the nominal load resistance.
709050 /
X3 -
XX
-
XXX -
XXX - 200
/ 252
709050 /
X3 -
XX
-
XXX -
XXX - 200
/ 257
H
The functions „SIC voltage reserve exhausted“ or „Current limit
active“ can also be applied to the signal output if they are activated
as described in the following sections:
v Chapter 5.8.2 „SIC voltage reserve (SIC reserve)“
v Chapter 5.10 „Setting the current limit (max. current adjust)“

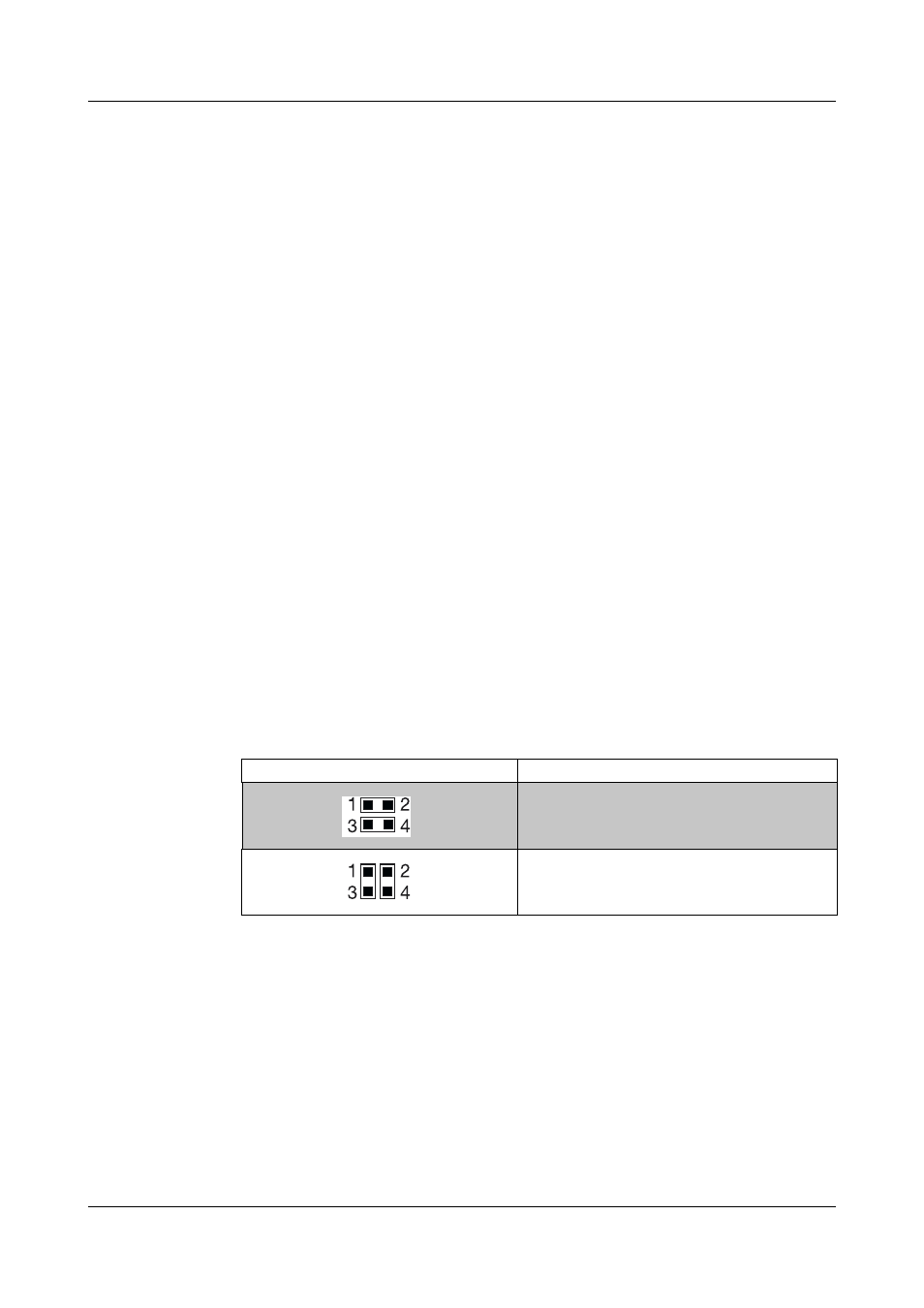

Jumper setting
Response
Underload detection
Overload detection
H
The total and partial load failure monitoring (underload) also allows
overload monitoring. For this purpose, both jumpers on the pin
strip X106 must be turned through 90°.
v Chapter 5.2 „Setting switches S101, S103, S104, S105, S106
