Page 31: Operating principle
IGBT Power Converter 200A [Patent No. EP1 126 591 B1] 02.08
31
5 Settings
5.1 Operating principle
The
J IPC can be used wherever a transformer was previously used to
reduce the voltage level.
It functions as an electronic transformer that produces a pulsed DC output.

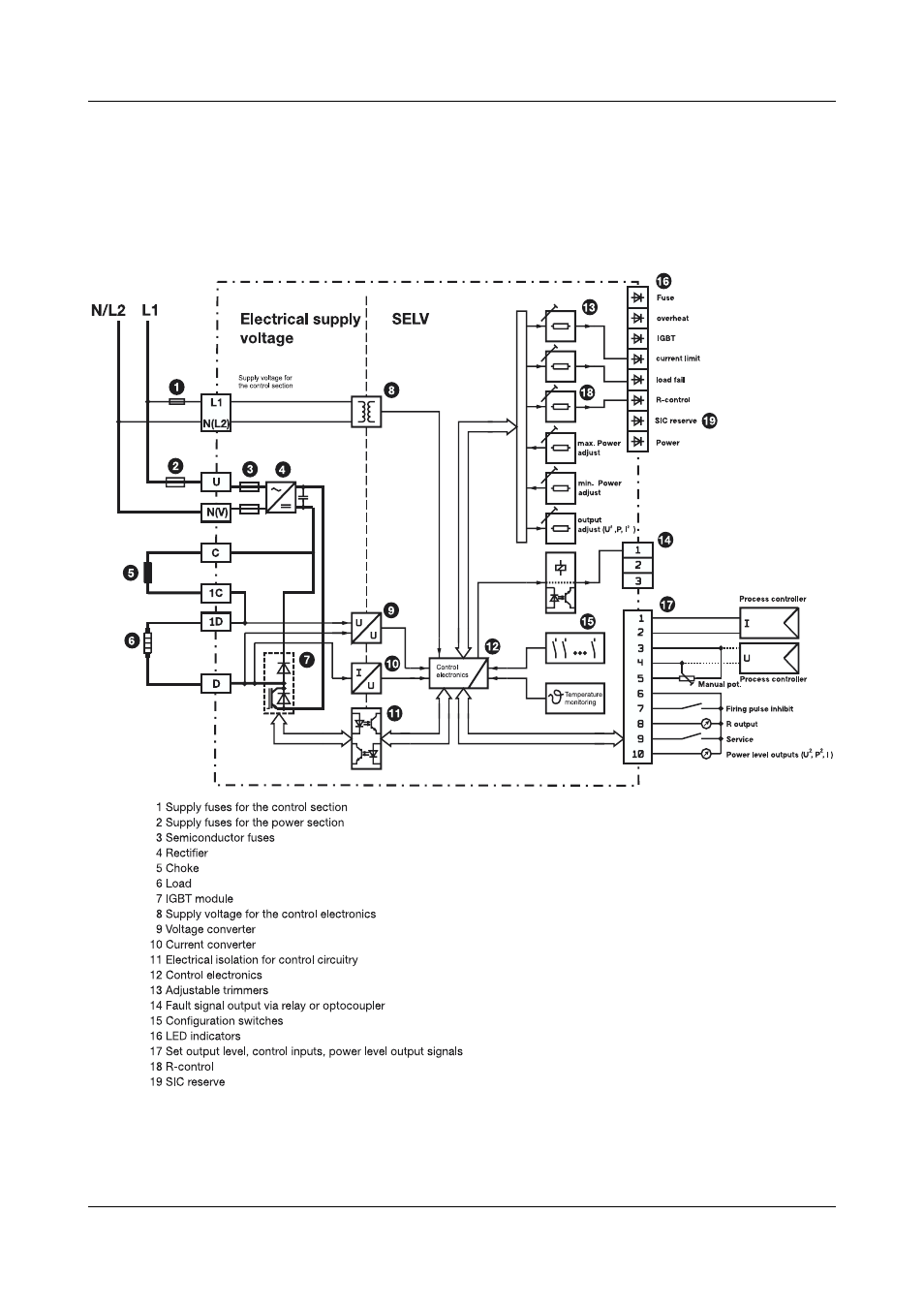

Block diagram
