IGBT Power Converter 200A [Patent No. EP1 126 591 B1] 02.08 23
4 Electrical connection

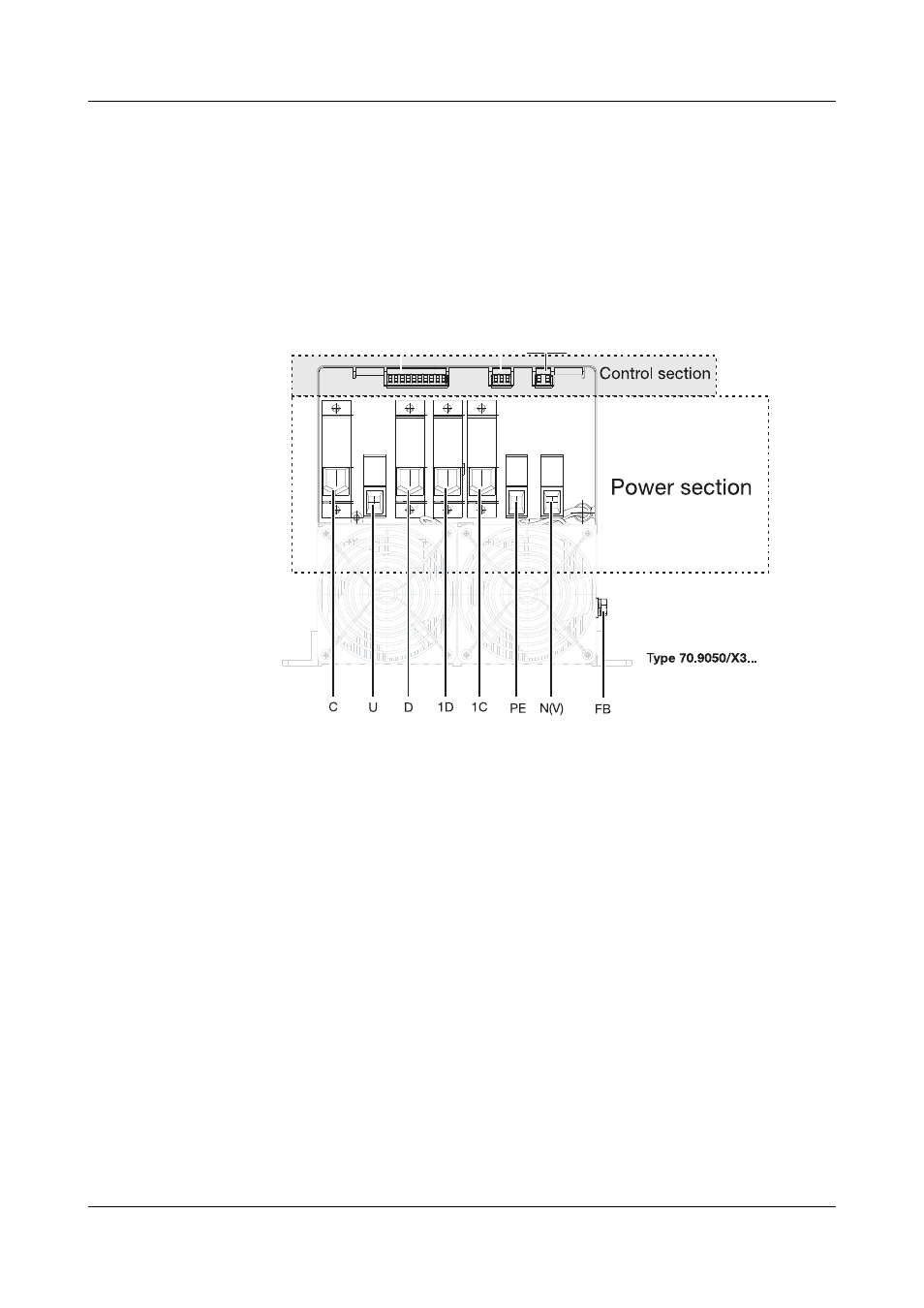

4.1 Screw connections in the power section
Tool - Screwdriver
- Allen key, width across flats 5 mm and 6 mm
h Disconnect the system from the electrical supply on all poles.
h Make the connections to the screw terminals only with cables that have a
suitable cross-section and are fitted with cable lugs.
V The electrical connection must only be carried out by qualified
personnel!
H
An Allen key, width across flats 5 mm, can be used to tighten the
screws in the power section at a max. torque of 6-8 Nm.
Conductor cross section with cable lugs: 10 to 50mm
2
An Allen key, width across flats 6mm, can be used to tighten the
screws in the power section at a max. torque of 15-20Nm.
Conductor cross section with cable lugs: 35 to 95mm
2
