3 Installation
22
IGBT Power Converter 200A [Patent No. EP1 126 591 B1] 02.08

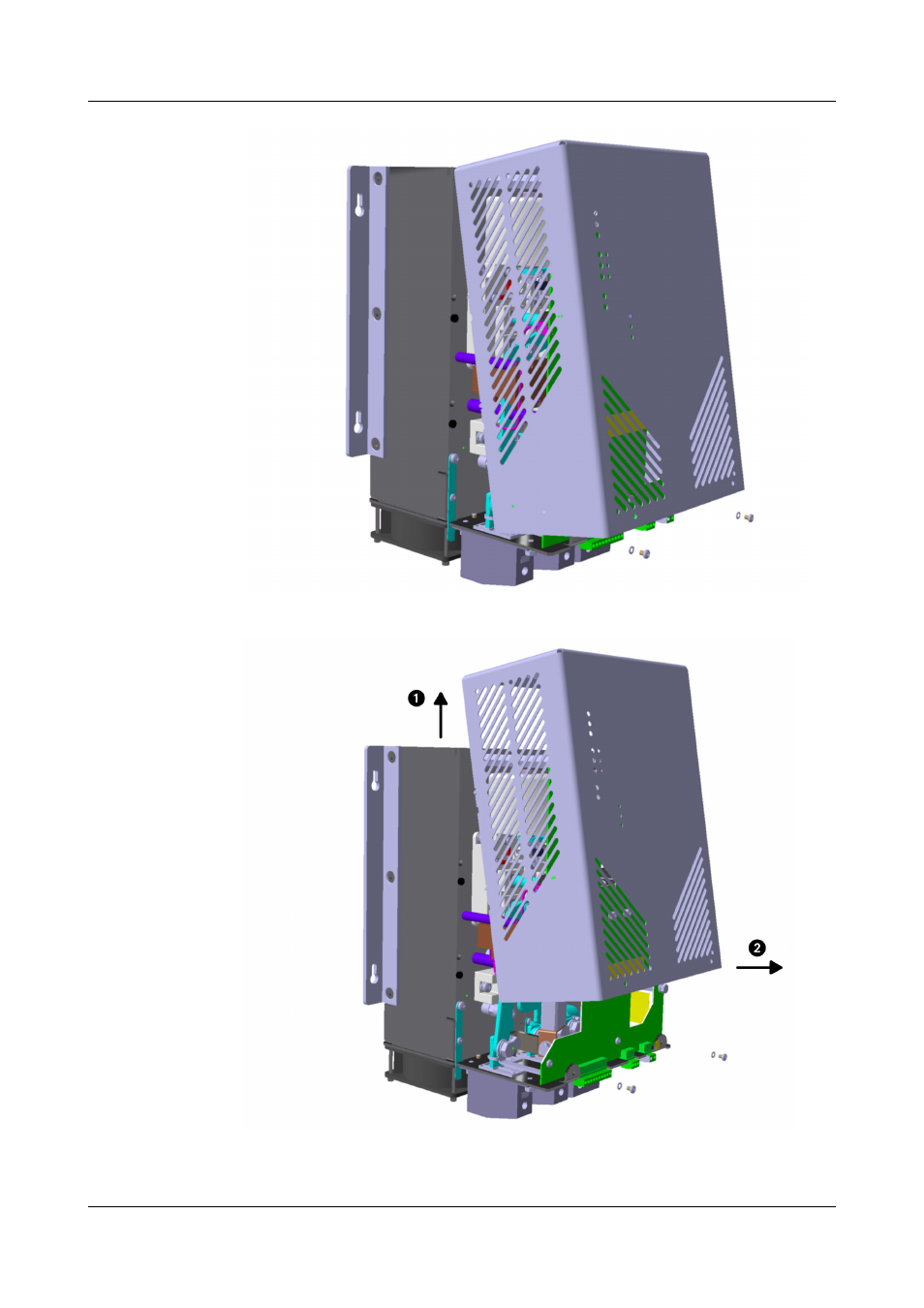

h Lift the cover out of the groove ᕡ and take it off forward ᕢ
