5
The BCG450-SD uses a "Sealed Micro-Style Connector" for the DeviceNet con-
nection. The DeviceNet part of the gauge is powered via the DeviceNet connector.
Pin Function
1 Drain
2 V+ nominal +24 V (range +11
… +25 V)
3 V–
4 CAN_H
5 CAN_L
Pin Function
1 Relay Setpoint A, n.o. contact 1)
2 Measuring signal output (0 … +10.13 V)
3 Threshold Setpoint A, output (0 … +10 V)
4 Relay Setpoint A, common contact 1)
5 Supply sensor electronics common
6 Threshold Setpoint B output (0 … +10 V)
7 Degas on, active high
8 Supply sensor electronics +24 Volt
9 Relay Setpoint B, n.o. contact 1)
10 Gauge identification
11 Relay Setpoint B, common contact
1)
12 Signal common GND
13 do not connect
14 do not connect
15 do not connect
1)
Type of setpoint function assigned to relays is programmable (
→ 26).
3 4
2
5
1
15
8
9
1

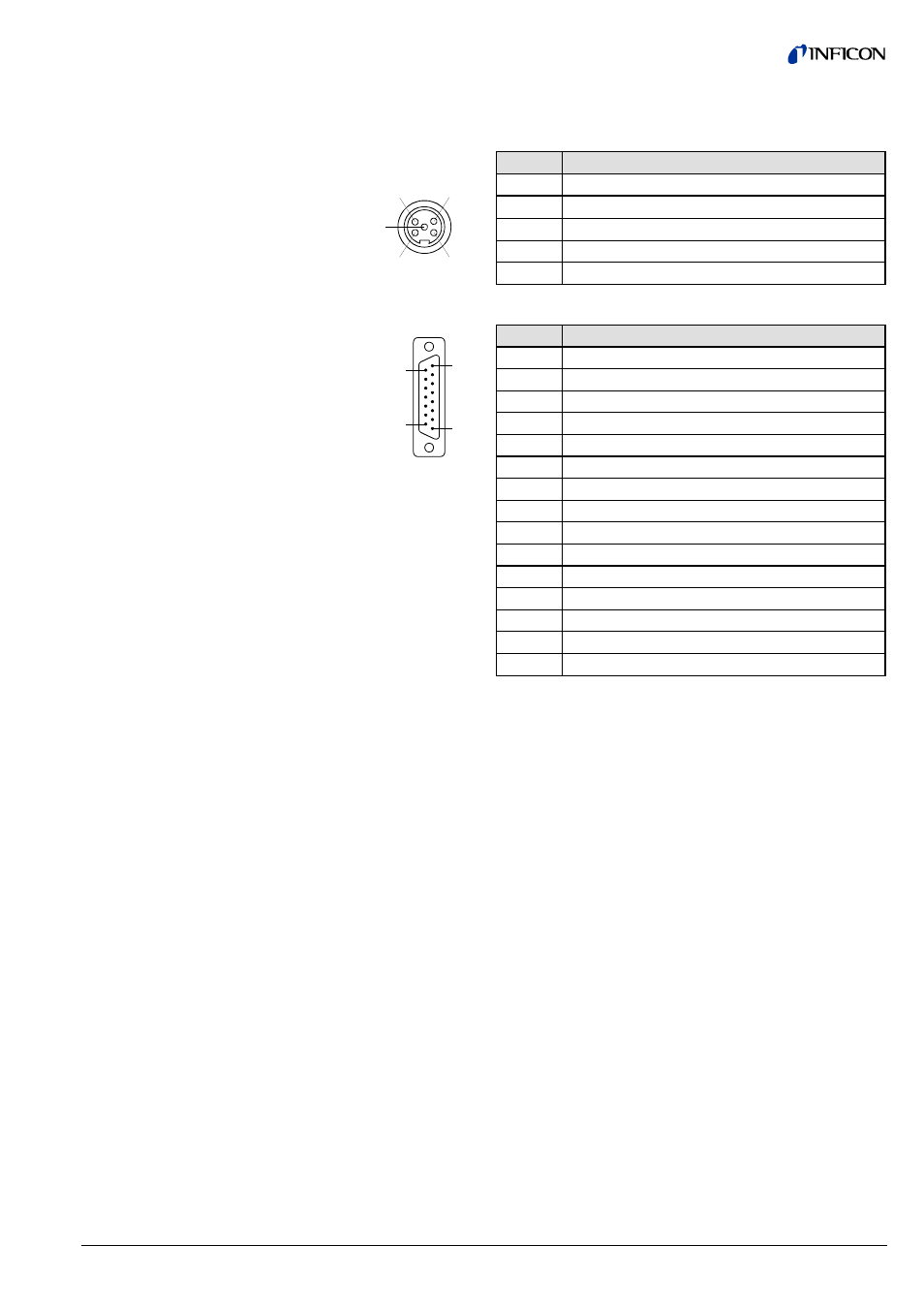

1.3 Connectors on the
Device
Pin Assignment of the Sealed
Micro-Style Connector
Pin Assignment of the 15 pin
D-Sub connector
