These Boolean attributes are used to enable (1) or disable (0) the S-Device Super-
visor object’s process of setting Exception bits. When disabled, corresponding bits
are never set; and, if they were set, disabling clears them. Also, alarm and warning
states are not retained; when enabled, bits will be set only if the corresponding
condition is true.
The default state for these Enable attributes is enabled (1).

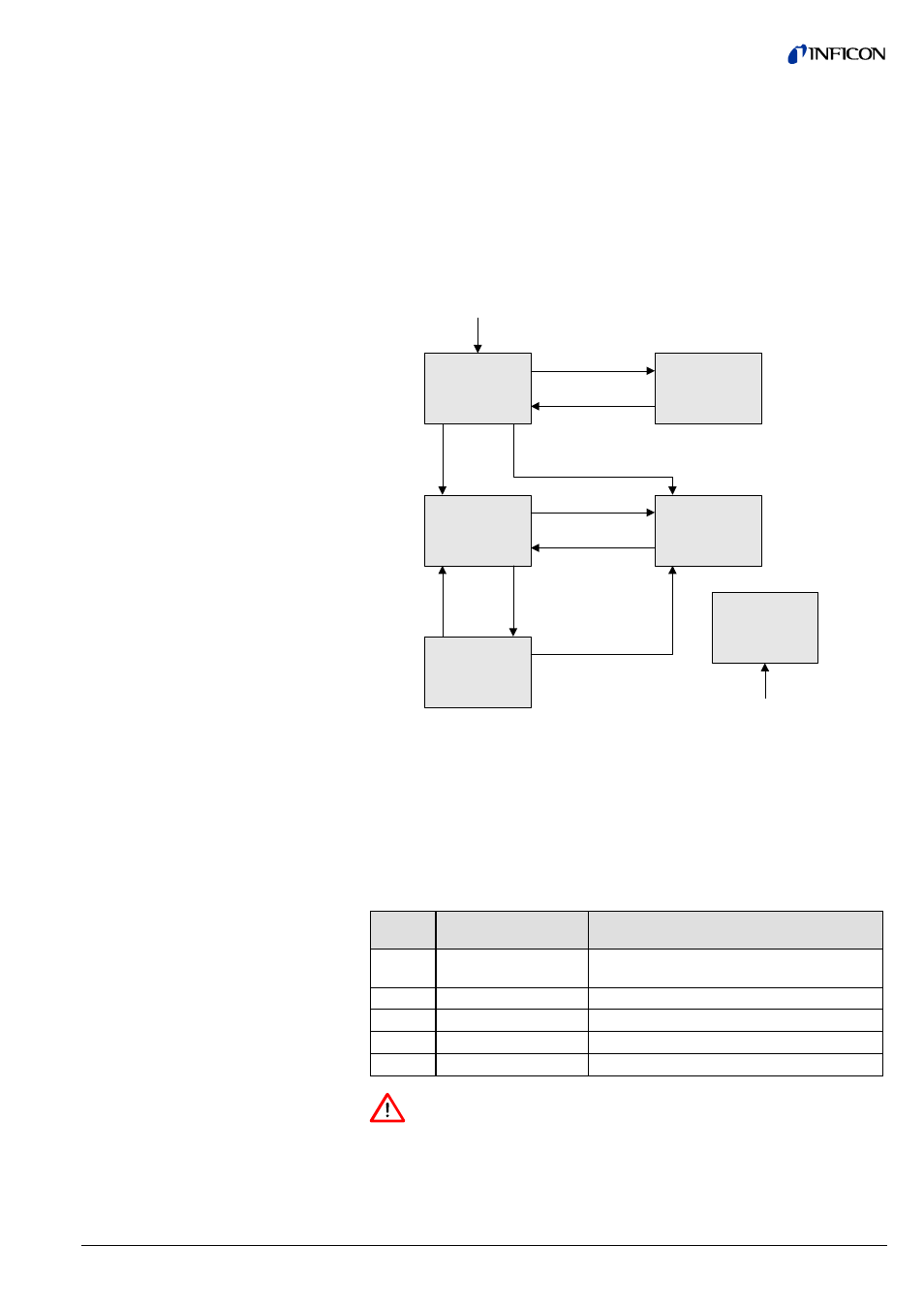

SELF-TEST
EXCEPTION
SELF-TESTING
ABORT
CRITICAL FAULT
IDLE
EXECUTING
Self-Test Failed
Power Applied, or
Reset Request from any state except CRITICAL FAULT, or
Perform Diagnostics Request from any state except CRITICAL FAULT or ABORT
Self-Test
Passed
Exception Condition
Cleared
Critical Fault
from any state
Start
Request
Stop
Request
Recover Request
Abort Request
Abort Request
Abort Request
Recover Request or
Abort - Used to transition the device application objects to the aborted state. This
service request may be (and generally will) originated internally, from application
objects.
Recover - Used to transition the device application objects, out of the abort state,
to the idle state. This service request may be originated internally, from application
objects.
Perform_Diagnostics - Used to instruct the DS object to perform a diagnostic test.
Service
Code
Service Name Description of Service
0E
h
Get_Attributes_Single Returns the contents of the specified
attribute.
10
h
Set_Attributes_Single Modifies an attribute value.
05
h
Reset Resets the device to the Self-Testing state.
06
h
Start Starts the device execution.
07
h
Stop Moves the device to the Idle state.
The device transitions from the IDLE state to the EXECUTING state by a
START Request (Service Code 06
h
) or by the receipt of the first valid I/O
data.
You will not get any valid measurement values from the device until this ser-
vice has been requested or the I/O-poll message has been received.
Alarm Enable and Warning
Enable
2.3.3 S-Device Supervisor
Object States
2.3.4 S-Device Supervisor
Common Services
