Installation Page 2 - 8 Section 2
2.3 Locations and Mounting
There are six #10-32 threaded mounting holes on each side of the T3000 that can be used
for custom mounting the unit. It is recommended that the unit be located as close as
possible to the vacuum chamber electrical feedthroughs, in order to minimize cable losses
for the high current connections. Locations for these mounting holes are shown in the
outline drawing of Figure 2.3-1.

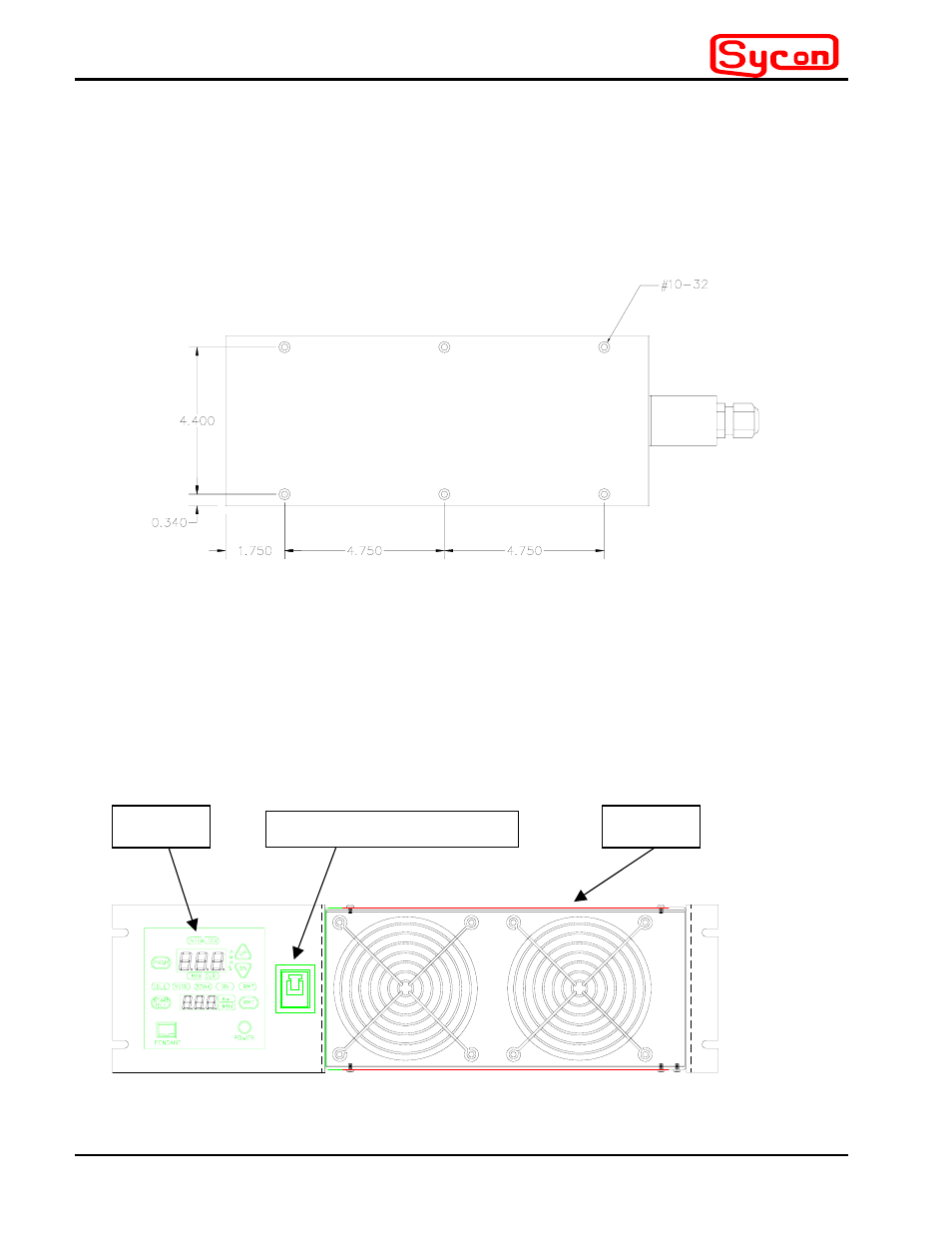

Figure 2.3-1 Location of Six Mounting Holes on T3000 Side Panels
The T3000 power supply and the RS3000 controller are also designed to mount in a
standard 19.0-inch equipment rack using a custom front panel. The panel contains a power
ON/OFF switch with a built-in circuit breaker. The panel and switch are available from
Sycon Instruments. Four screws, two on each side of the front panel, should be used to
secure the unit in place. Figure 2.3-2 shows the mechanical arrangement for side-by-side
rack mounting of the two units.
Figure 2.3-2 Side-By-Side19” Rack Mount Configuration
Power ON/OFF Switch
T3000 RS3000
