43

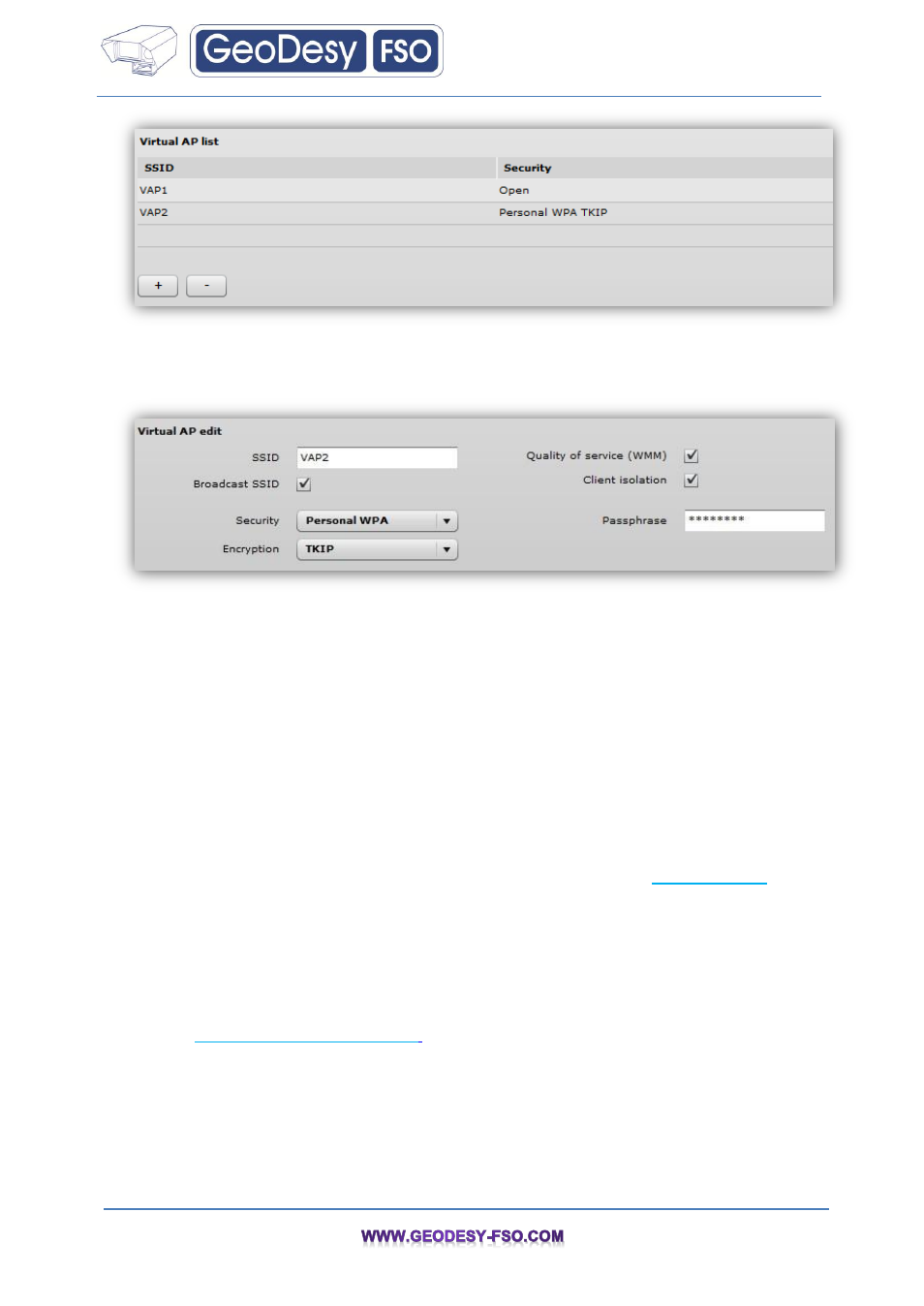

To create a new Virtual AP, click on + button to add new entry on the VAP table, then select this entry
and specify required parameters:
SSID
– specify the unique name for the VAP [string].
Broadcast SSID
– when this option is selected the particular SSID is visible during network scans on
a wireless station. W hen unselected, the VAP SSID is not visible and not broadcasted to wireless
stations.
Quality of service (WMM)
– enable to support quality of service for prioritizing traffic.
User isolation
– enable the user Layer 2 isolation. The Layer 2 isolation blocks the wireless clients
from communicating with each other.
Each VAP security is configured by default as an “open system”, which broadcasts a beacon signal
Including the configured SSID. For more secure network choose one of the security mechanisms for
Each VAP interface.
Security
– choose the wireless security and encryption method from the drop-down list (for detailed
security configuration, refer to the respective section Access Point (auto WDS) Security Settings) .
 Open – no encryption.
 WEP – 64bit and 128bit key.
 Personal – preshared key encryption with WPA/WPA2 using AES or TKIP.
 Enterprise – RADIUS server based authentication with WPA/WPA2 encryption using AES or
TKIP (requires configured RADIUS server).
 UAM – Web browser based user authentication method. UAM authentication is available only if
Access Point is working in router mode. For UAM configuration details refer at the respective
chapter
Universal Access Method (UAM) .
Wireless clients must be able to process the W PA or WPA2 information element and
respond with a specific security configuration.
7.2.10 Wireless ACL
Wireless ACL is active only in Access Point (auto WDS) and iPoll Access Point wireless mode.
