29
IP address
– specify the IP address of the device LAN interface.
Subnet mask
– specify the subnet mask of the device LAN interface.

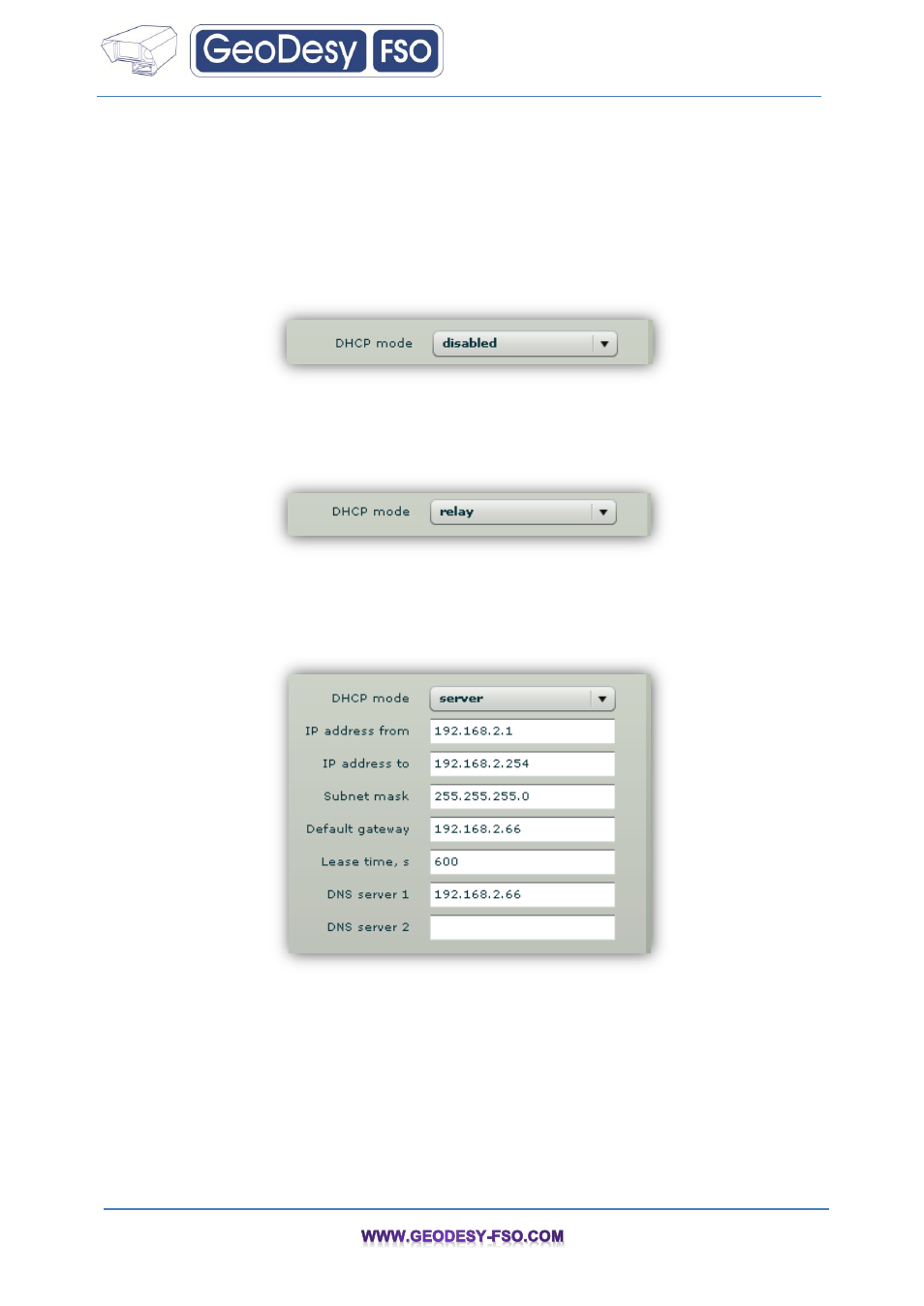

LAN DHCP Settings
DHCP mode
– choose disabled to disable DHCP on LAN interface.
DHCP mode
– choose relay to enable DHCP relay. The DHCP relay forwards DHCP messages
between subnets with different sub layer broadcast domains.
DHCP mode
– choose server to enable DHCP server on LAN interface.
IP address from
– specify the starting IP address of the DHCP address pool.
IP address to
– specify the ending IP address of DHCP address pool.
Subnet mask
– specify the subnet mask.
Default gateway
– specify DHCP gateway IP address.
Lease time
– specify the expiration time in seconds for the IP address assigned by the DHCP server.
DNS server
– specify the DNS server IP address.
