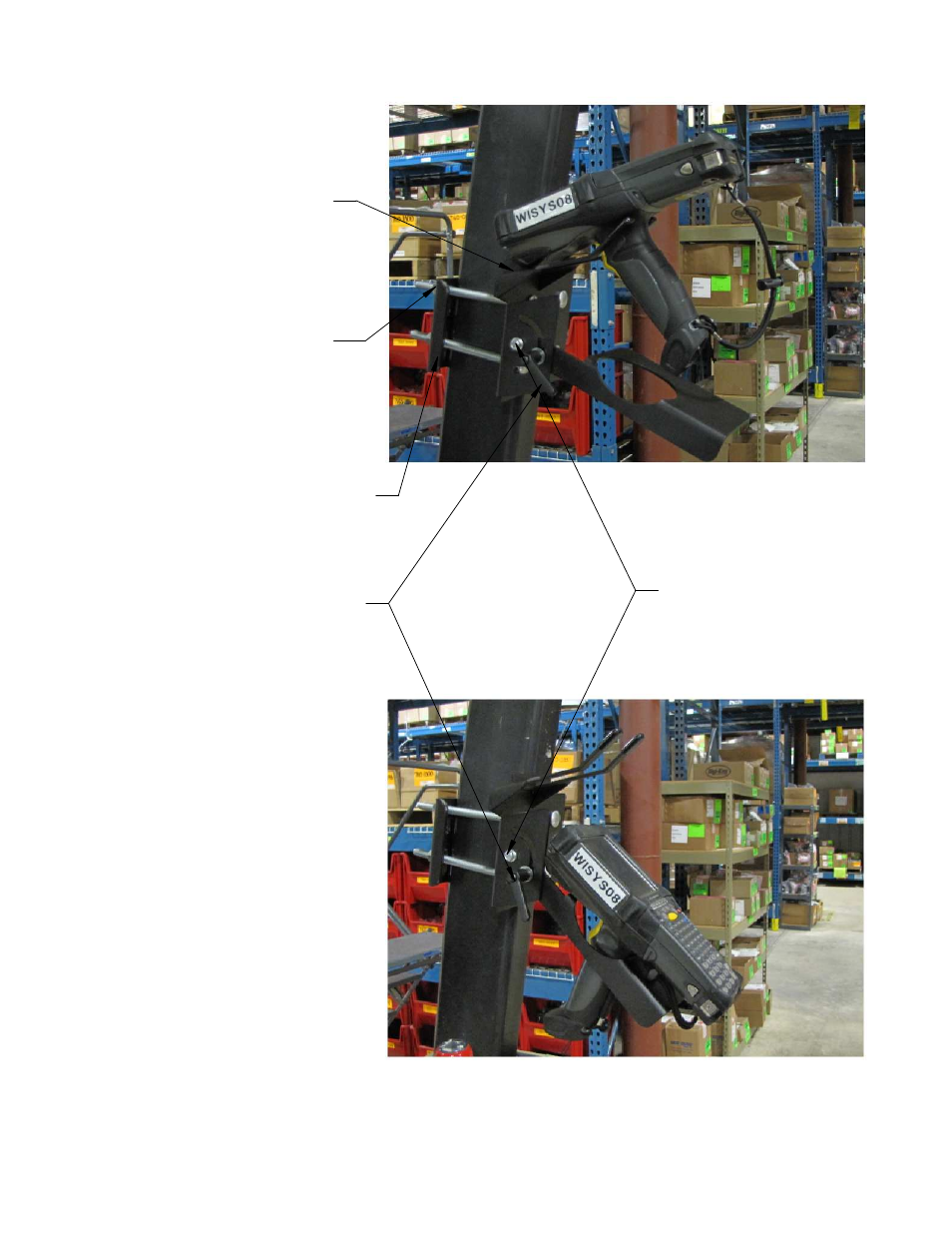

Figure 1.- Example of Assembly
in Secure position
Position so this surface
is relatively level
Position the 3/8 bolts as close to
the pillar as possible to prevent
bowing the components
Please note the orientation of
bends on backer plate
Note: the adjustment handle
can be tightened. This will lock
the lower section & provide a
stable position that will allow
for data entry by the end user
2 of 3
Note: Please tighten to
class 5 bolt specs
(65-88 inch-pounds)
