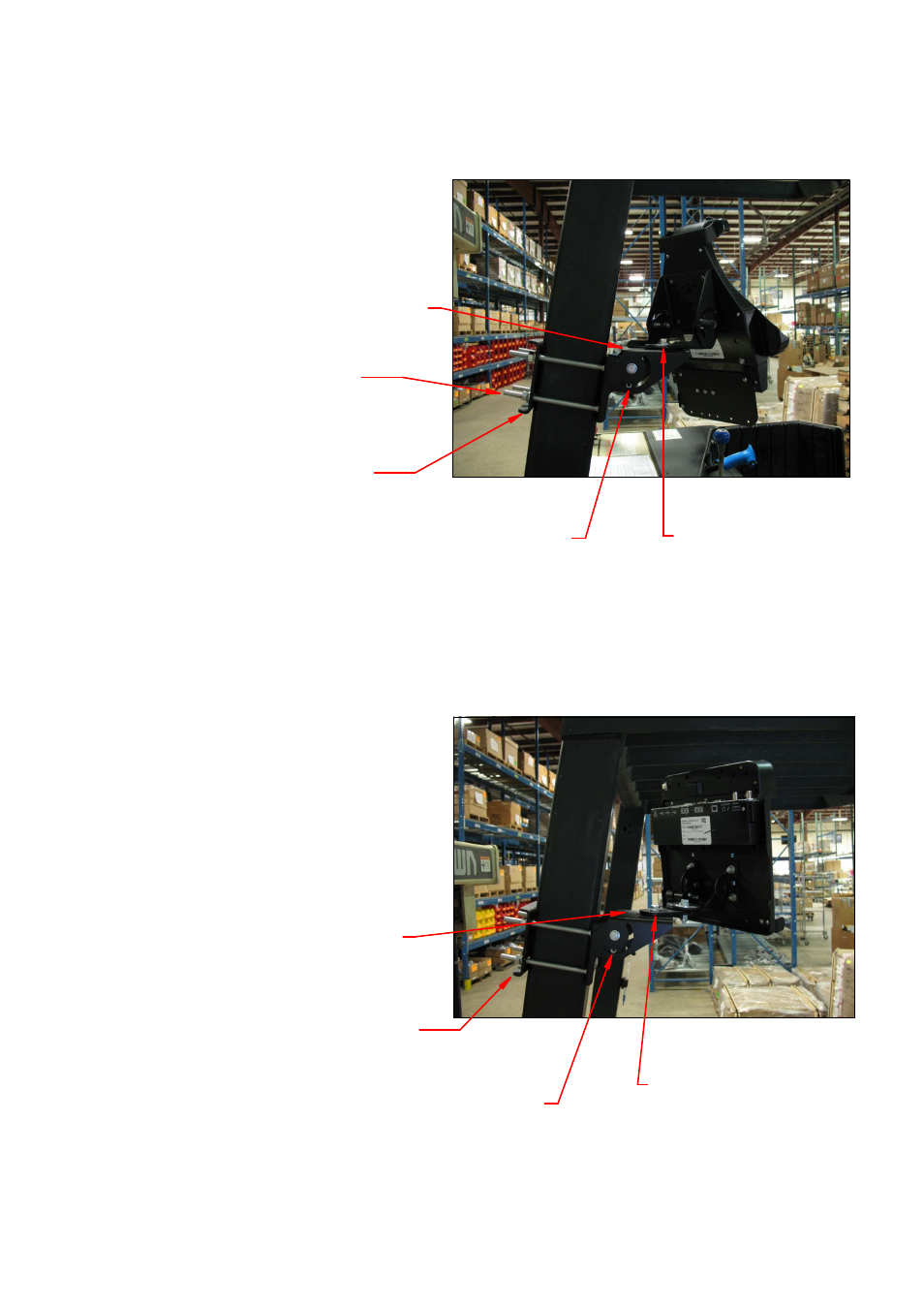

Figure 1. - Example of Dual Clam Shell Assembly
7160-0366 = Full Assembly with Small Back Plate
7160-0367 = Full Assembly with Adapter and
Large Back Plate
Figure 2. - Example of Clam Shell with
0-90 Clevis and 3" Arm
7160-0364 = Full Assembly with Small Back Plate
7160-0365 = Full Assembly with Adapter and
Large Back Plate
2 of 5
Note: 1/4" bolts and flat washers have been provided
in the hardware bag and can be installed in the open
location opposite the lever handles to lock the clam
shells in place.
Note: The 3/8" pivot bolt
can be tightened to lock
the mount in place.
Position so this surface
is relatively level
Position the 3/8 bolts as close to
the pillar as possible to prevent
bowing the components
Note orientation of bends
on backer plate
Note: The 3/8" pivot bolt
can be tightened to lock
the mount in place.
Note: 1/4" bolts and flat washers have been provided
in the hardware bag and can be installed in the open
location opposite the lever handles to lock the clam
shells in place.
Position so this surface
is relatively level
Note orientation of bends
on backer plate
