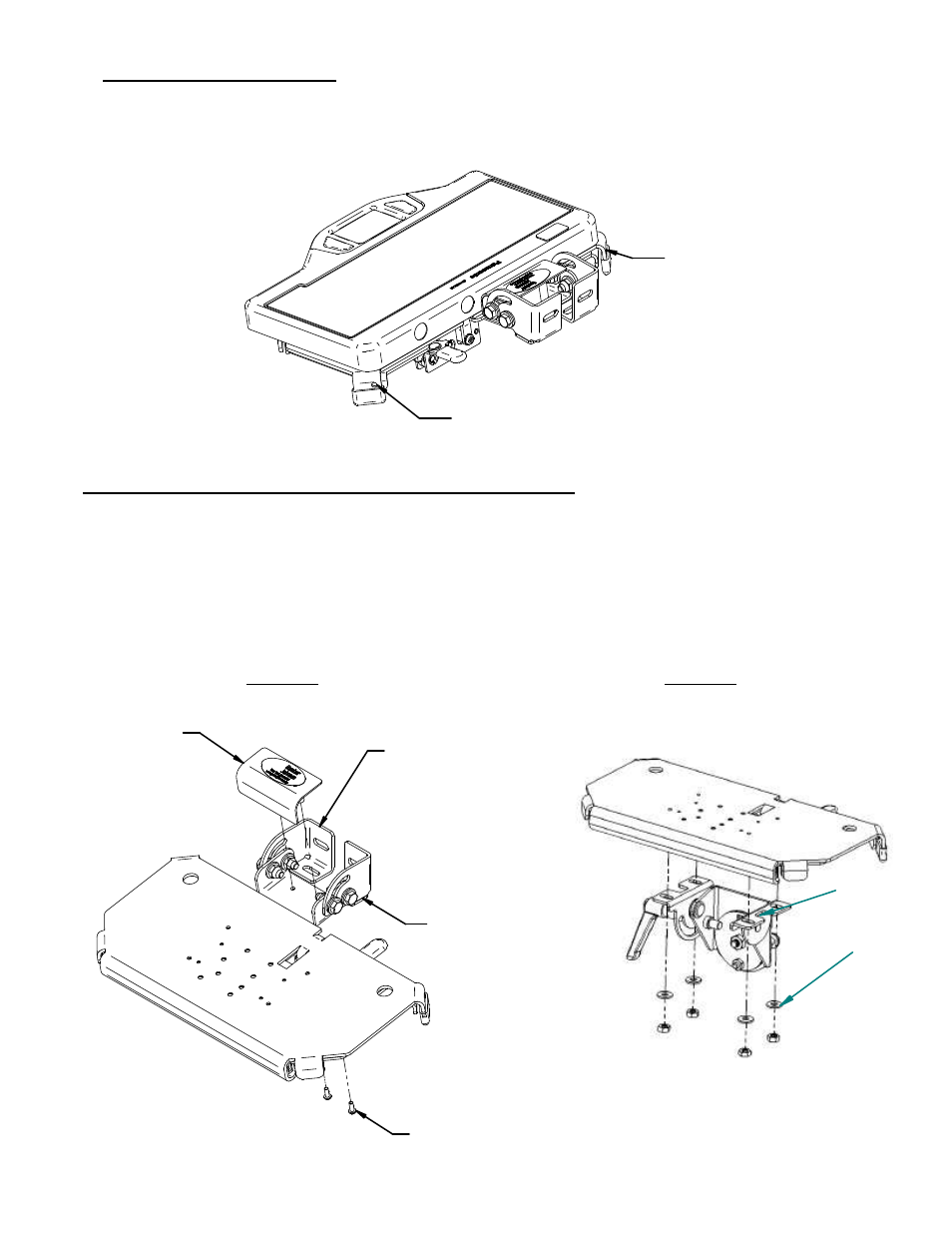

Attaching the Keyboard Mount to the Mounting Surface:
The keyboard mount has a tilt/mounting bracket that allows for mounting the support on any
flat surface ranging from horizontal to vertical. Attach the tilt/mounting bracket using
1/4-20unc hex bolts, washers, and nuts that were provided in hardware bag 7120-0232.
NOTE: The bolt provided may be to long or short for your application. Should that
condition occur please substitute an appropriate length which can be purchased at any
hardware store.
Cover bracket
Mounting flange for
vertical to 45
v
mounting surfaces
Mounting flange for
horizontal to 45
v
mounting surfaces
Secure Cables to Keyboard Tray:
Secure the keyboard cable to the keyboard tray using a cable tie.
Cable tie hole
Cable tie hole
#6-32unc mounting hardware
Page 3 of 3
7160-0330 7160-0498
4X 1/4-20
Nuts and
Washers
Clevis
