7160-0330

INSTALLATION INSTRUCTIONS

Product

Revision

Form

KEYBOARD MOUNT - QUICK RELEASE

Rev. B

INST-521

If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868

Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or conseq uential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupan ts, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufacture s specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.

© copyright 2011 Gamber-Johnson, LLC

Printing Spec: PS-001

Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or conseq uential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupan ts, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufacture s specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.

The 7160-0330 keyboard tray is a universal keyboard mount that can be used to hold just about any size
keyboard. The keyboard tray has a hole pattern that matches the current Panasonic keyboard that is used with the
PDRC display, the TG3 keyboard, the iKey FT-88-911-TP, and many keyboards with a 30mm x 38mm AMPs
pattern. There are strips of adhesive backed Dual Lock located in the hardware bag for customers that choose to
use the keyboard tray with keyboards other than those listed.

The 7160-0498 is the same keyboard tray as the 7160-0330 without the mounting flange. Instead it is mounted
with a quick release clevis.

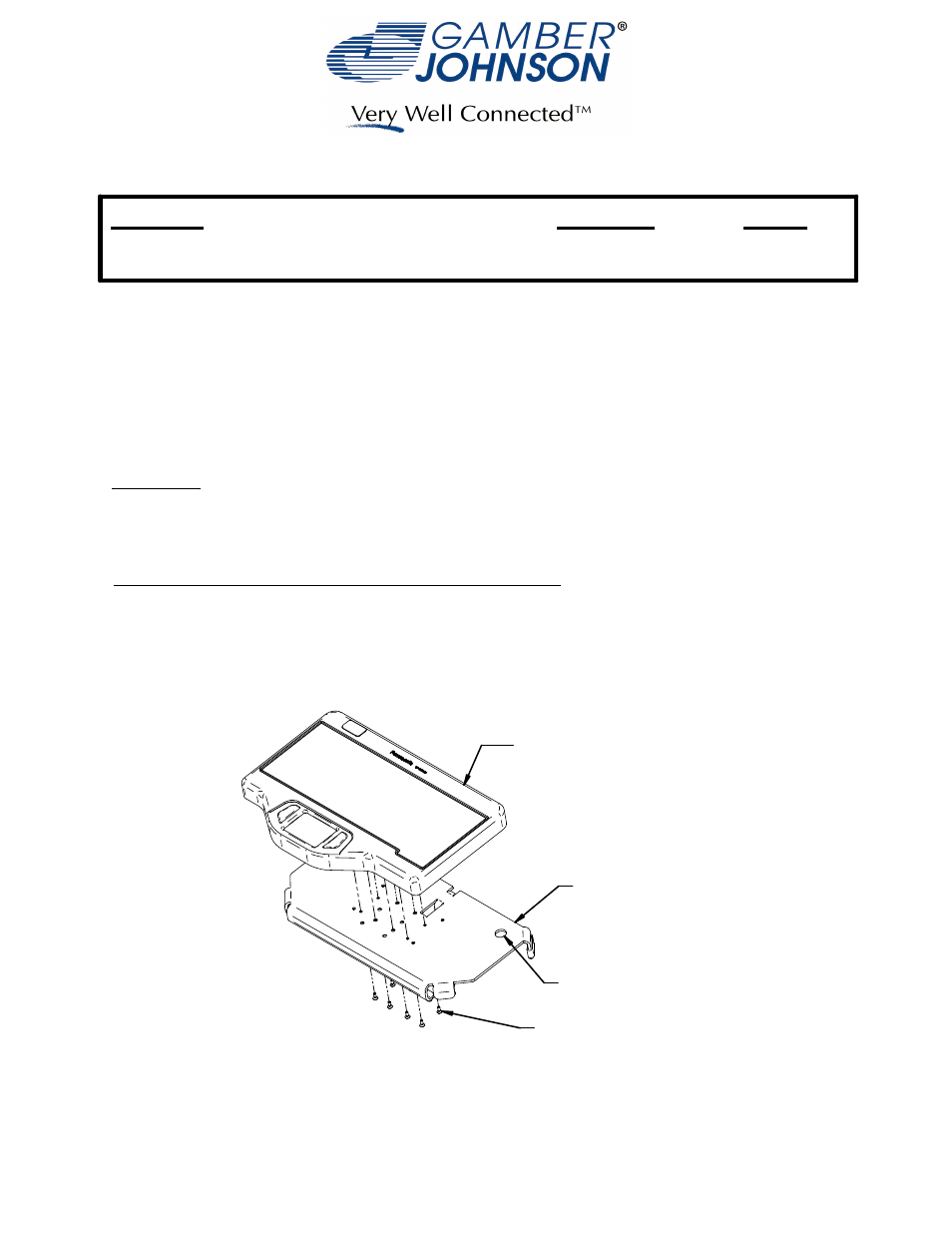

Attaching a Panasonic or TG3 Keyboard to the Keyboard Tray:

Attach the Panasonic keyboard to the keyboard tray assembly with the (8) M3 x 8MM flat head machine screws
found in hardware bag 7120-0473. Attach the TG3 keyboard to the keyboard tray assembly with the (4) 8-32unc
x 3/8 flat head machine screws found in hardware bag 7120-0473. Attach the iKey keyboard with (4) 6-32 x 3/8
pan head machine screws, not supplied.

Mounting Hardware

Keyboard Tray

Panasonic, TG3, or iKey keyboard

Align iKey keyboard
feet with 1/2-in holes.

Tools Needed

Phillips head screw driver
7/16-in wrench

Page 1 of 3
