7160-0302
INSTALLATION INSTRUCTIONS
Product Revision Form
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Inteface Plate, Data911 Rev. C INST-506
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© copyright 2011 Gamber-Johnson, LLC
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
The inteface plate is designed to adapt the Data911 10.4", 12" and 15" screens to the
Universal Interface Plate (7160-0275) using the Gamber Johnson 4.09" x 2.0" hole pattern.
Refer to the installation instructions for the Universal Interface Plate and the Universal
Display Mount (7160-0272, 7160-0273)
for additional installation instructions.

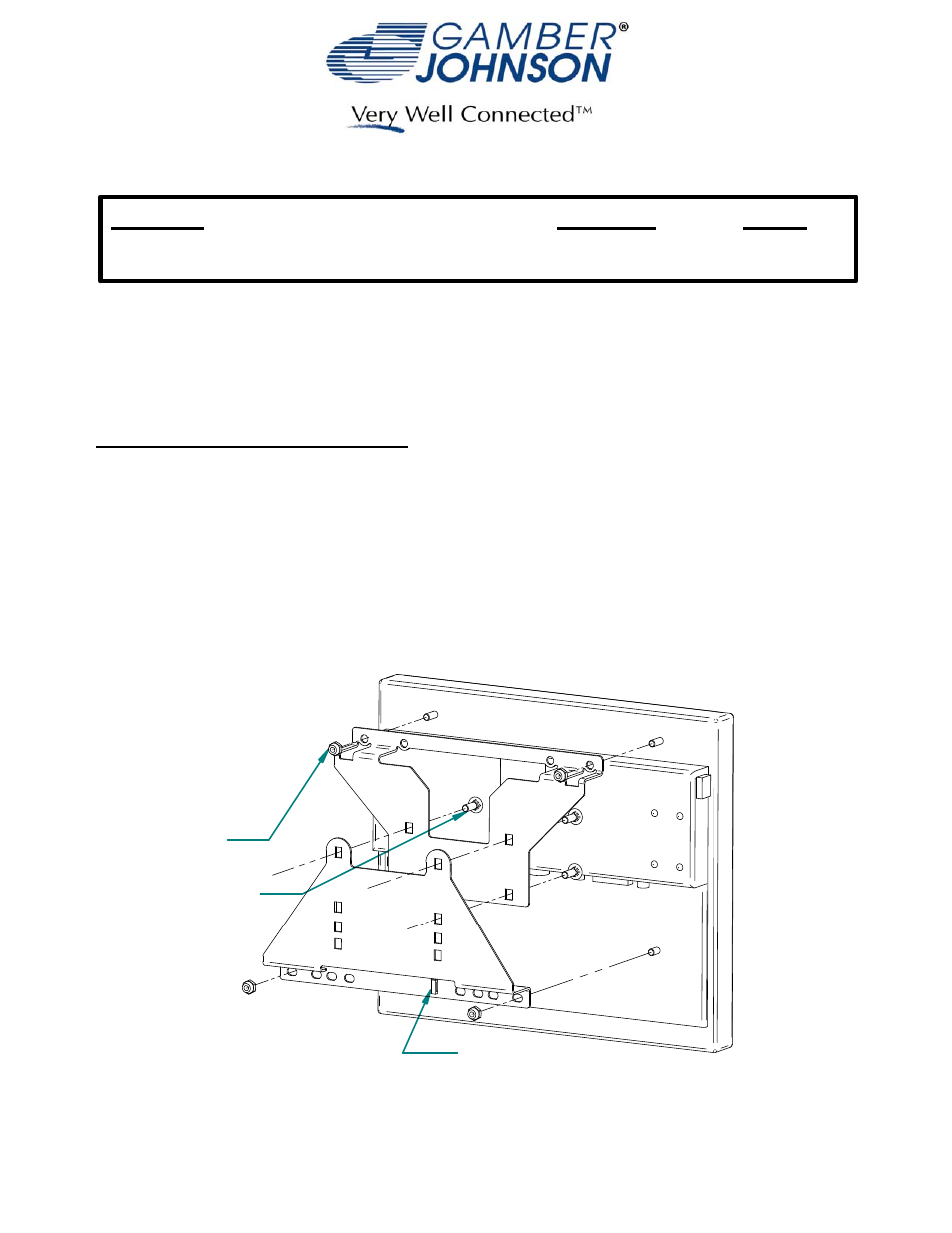

Attaching the Data911 15" Display"
Overlap the plates as shown below. The upper plate has a cutout for the fan. The upper plate
should be covered by the lower plate. Install the four carriage bolts into the square holes in
both the plates, as shown. (Nuts can be temporarily installed to hold the carriage bolts in
place.)
Install the screen using the provided 1/4-20 nuts.
Install the cables. Strain relief the cables using the provided anchor point and the provided
cable ties.
Install the assembly to the Universal Interface Plate (7160-0275) using the povided 1/4-20
nuts (not shown).
4X 1/4-20 Nuts
Strain Relief
Anchor Point
4X 1/4-20
Carriage Bolts
and Nuts (not shown)
