Manual EKS Light and Light FSA
8 Parameter assignment of the Electronic-Keys via the
Electronic-Key-Manager EKM software

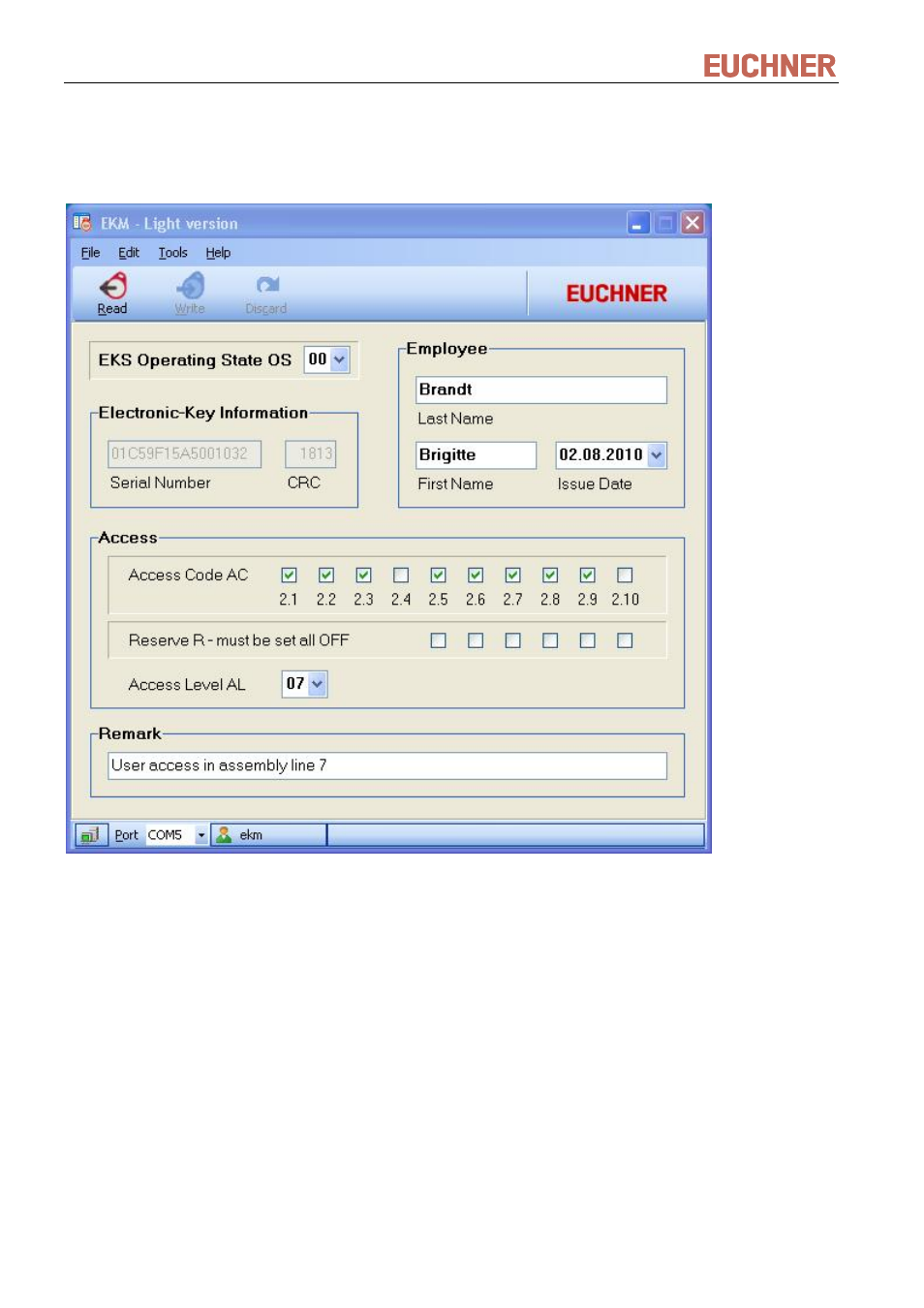

EKM input mask for the operating states (OS) 0 and 1
The values entered here correlate with the sample DIP switch setting in operating state 0 (see section 4.3.2 DIP
switch settings in operating state 0).
The input mask can be customized with the aid of the Electronic-Key-Manager software.
Perform Electronic-Key parameter assignment in the following sequence:
1. Select desired value for the operating state (OS).
2. Input the desired access code (AC) in binary form according to the DIP switch nomenclature. Important: It is
essential to set the reserve bits R to OFF (as shown in the Figure above). Remove the tick from the check
boxes if necessary.
4. Select the desired access level (AL).
5. Further administrative inputs, such as the employee name, issue date or remarks, are optional and are not
necessary for the function of EKS Light.
6. Write data onto the Electronic-Key.
