Manual EKS Light and Light FSA

7.3.1.4 Circuit diagram

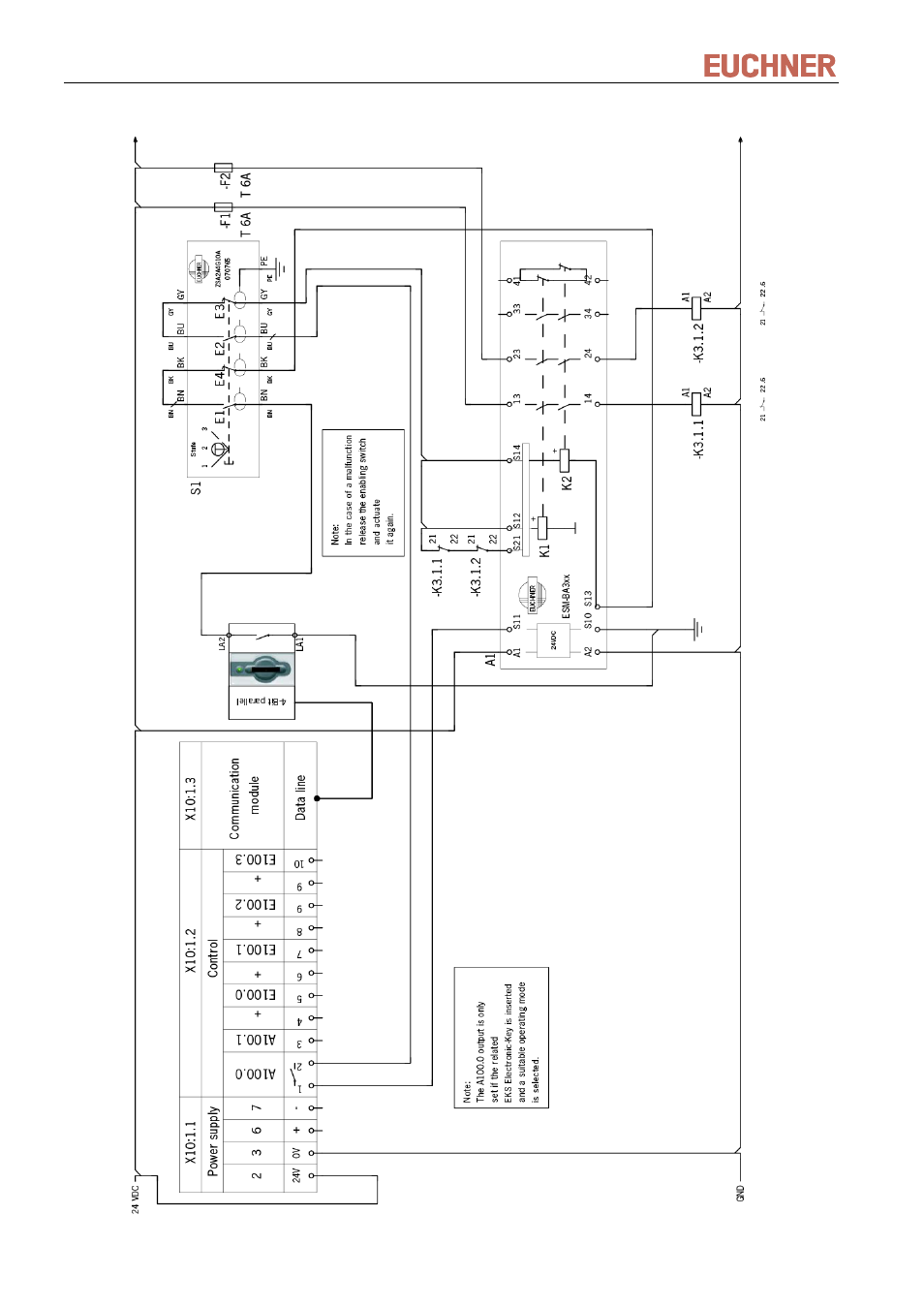

Figure 6: Circuit diagram with enabling switch

Page 34/40
