4.4 Operating state 1

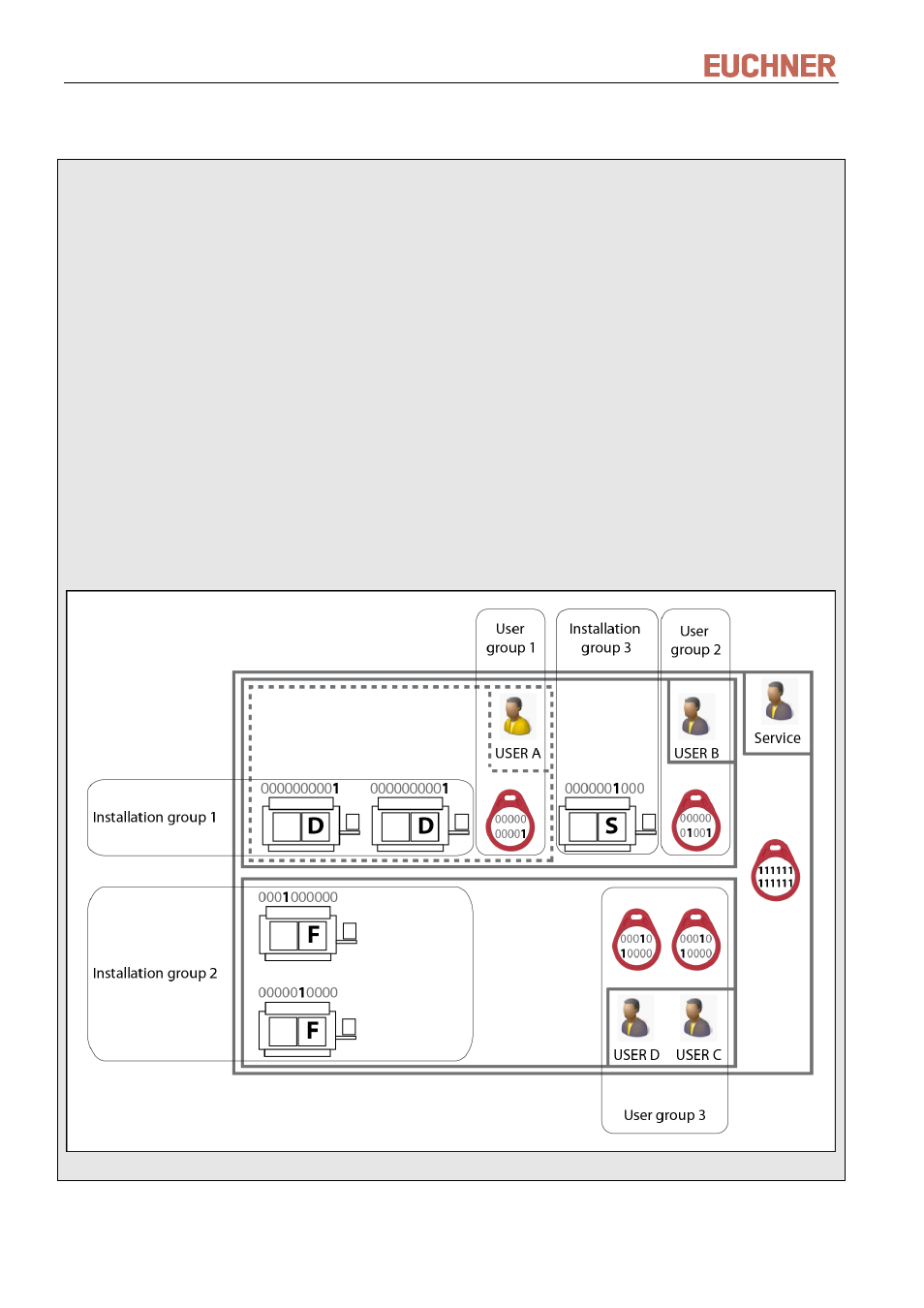

Application example:

Requirement:

 There are two lathes D in a factory. They are to be operated by USER A and USER B.

USER B additionally is to be able to operate a grinding machine S.

 There are also two milling machines F, which are both to be operated by USER C and USER D.

 The

service technician

is to have access to all machines.

Solution with EKS Light:

 A certain bit in the access code is set for the two lathes D using the DIP switch on the read station (here: bit 0). Position

of the DIP switch: 0000000001.

 Bit 3 is set for the grinding machine S. Position of the DIP switch: 0000001000.

 Bit 4 is set for one of the two milling machines F, and bit 6 is set for the other one. Position of the DIP switches:

Function of the DIP switches 0000010000 and 0001000000.

USER A receives an Electronic-Key with the access code 0000000001 (for lathes D).

USER B receives an Electronic-Key with the access code 0000001001 (for the lathes D and the grinding machine S).

USER C and USER D receive an Electronic-Key with the access code 0001010000 (for the milling machines F). Bits 4

and 6 were set on every Electronic-Key here.

 The

service technician

receives an Electronic-Key on which all bits from 0 to 9 are set (access code 1111111111).

 In addition to the access code, each user is assigned an access level with a value from 0 to 15.
