Manual EKS Light and Light FSA
Parameter assignment for the Electronic-Keys is performed exclusively via a programming station on the PC.
An EKS Electronic-Key adapter with USB interface (order No. 092 750) or with serial interface (order No. 084
750) is installed on the PC for this purpose. Programming is performed via the Electronic-Key-Manager EKM
software with an input mask suitable for the operating state (see section 8 Parameter assignment of the
Electronic-Keys via the Electronic-Key-Manager EKM software)
Due to the non-contact transfer of data, the Electronic-Key adapter is designed with a high degree of protection
suitable for industry from the access side. The Electronic-Key adapter is fastened from the rear side of the panel
in order to exclude unauthorized tampering from the operator side.
The current state of the Electronic-Key adapter is displayed using a 3-color LED.
The Electronic-Keys are tag shaped. The complete transponder with memory chip and antenna is integrated
into the Electronic-Key. The transponder does not have a battery.
The Electronic-Key is placed on the Electronic-Key adapter for operation. The power supply for the transponder
and the data are transferred contactlessly between the Electronic-Key adapter and Electronic-Key.

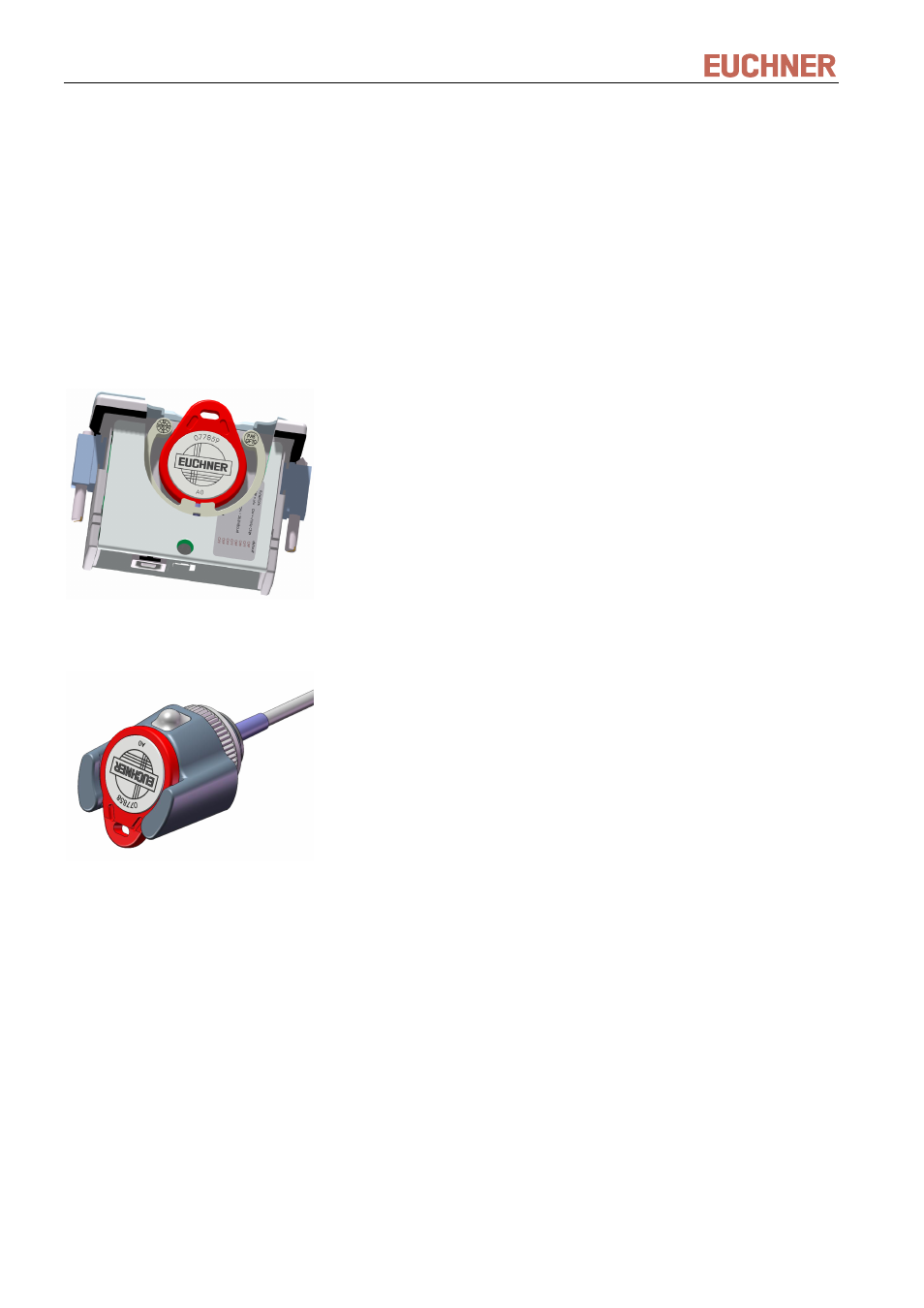

Figure 2: Cut-away illustration of an Electronic-Key adapter with Electronic-Key in the compact version
Figure 3: Illustration of an Electronic-Key adapter with Electronic-Key in the modular version
