Manual EKS Light and Light FSA
5 Technical data

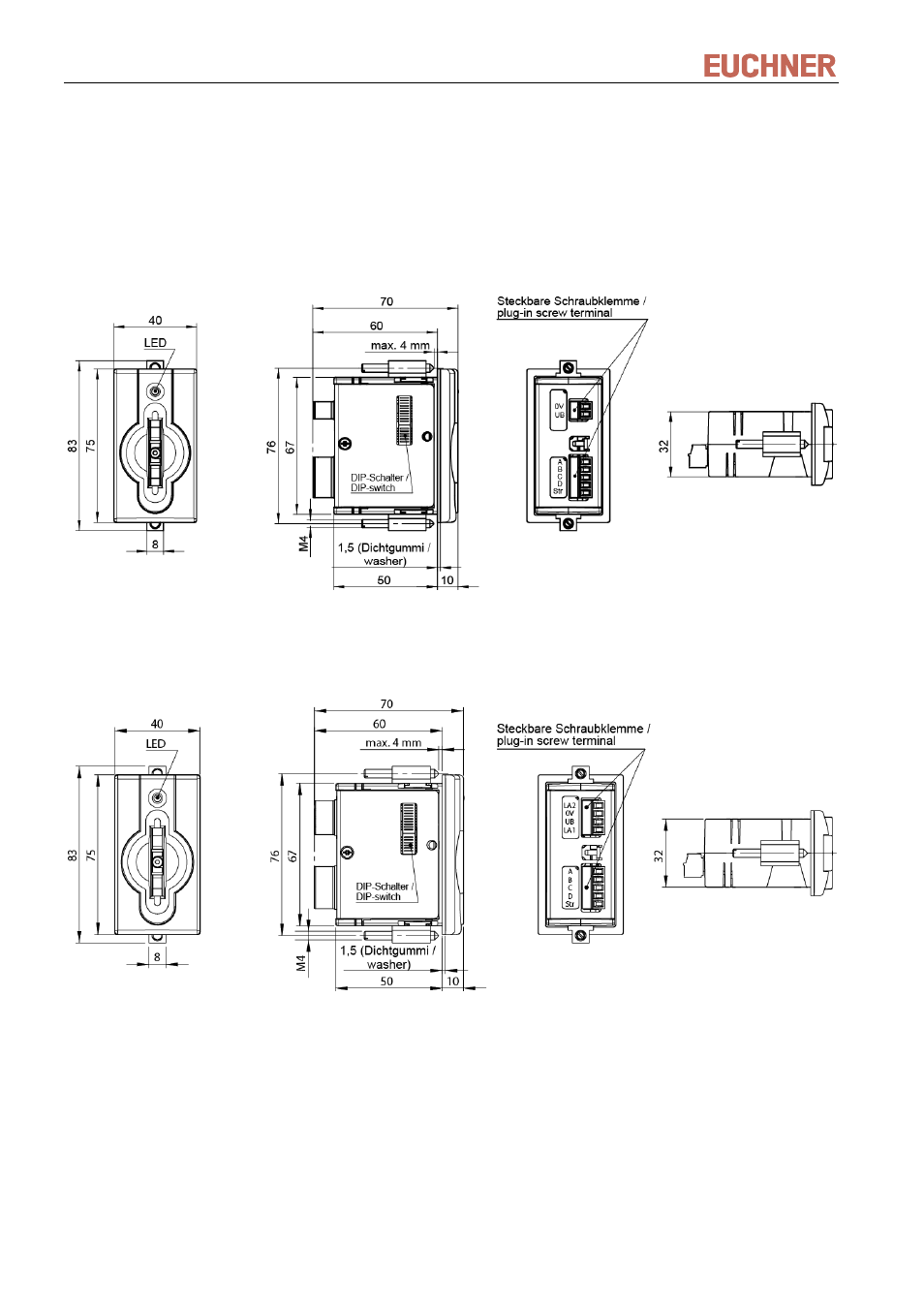

5.1 Dimension drawing of Electronic-Key adapter compact
For installation in a control panel you must provide a cut-out 33 mm x 68 mm according to DIN 43700.
5.1.1 Version EKS-A-IP…
5.1.2 Version EKS-A-IP… FSA
Page 22/40
Subject to technical modifications
110845-04-03/12
