Manual EKS Light and Light FSA

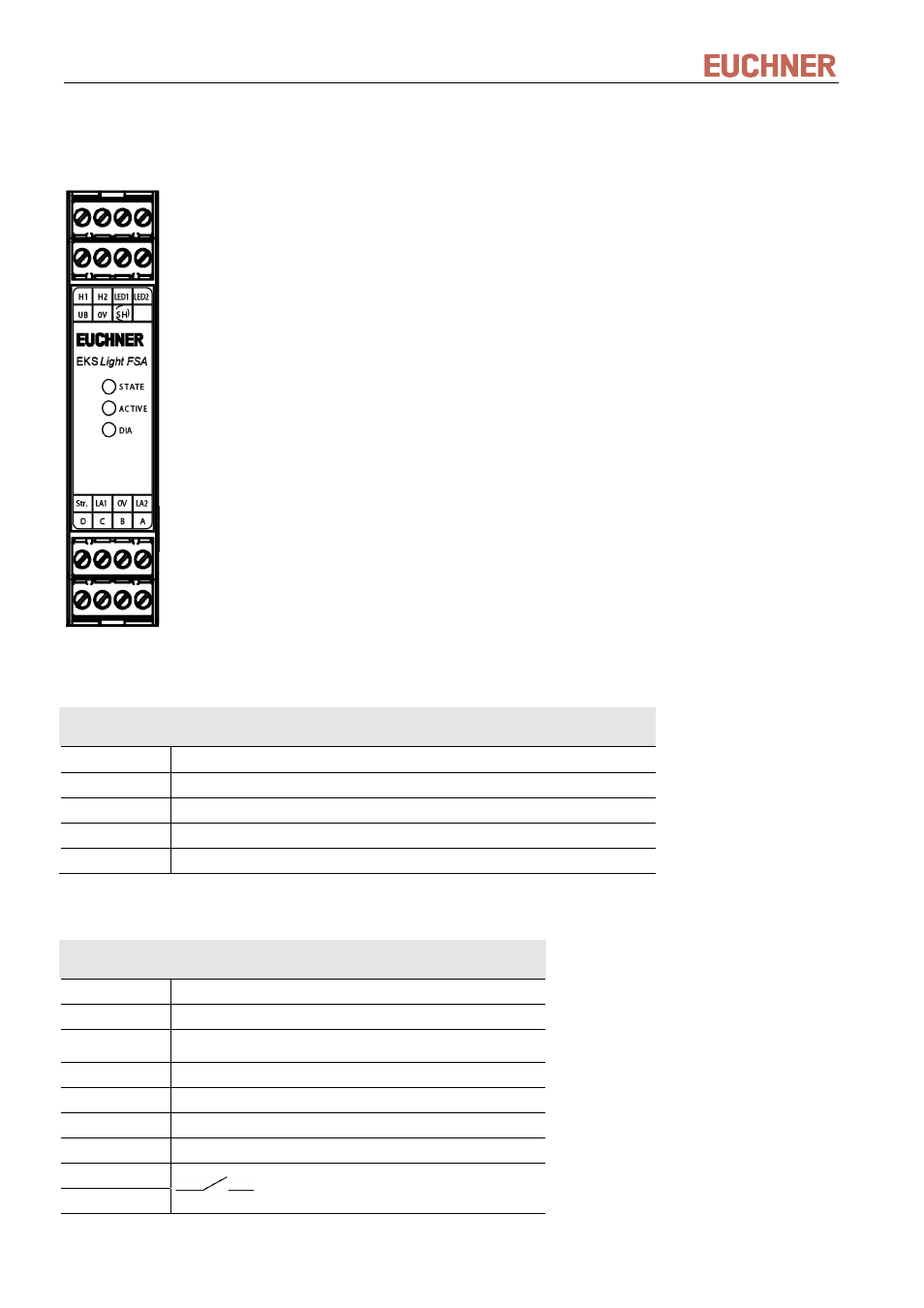

5.6 Connector assignment for interface adapter modular

5.6.1 Connection to FHM Electronic-Key adapter

Designation

Function

Wire color

H1

Antenna of FHM Electronic-Key adapter

BN

H2

Antenna of FHM Electronic-Key adapter

WH

LED1

LED of FHM Electronic-Key adapter

YE

LED2

LED of FHM Electronic-Key adapter

GN

SH

Shield of FHM Electronic-Key adapter

BK

5.6.2 Power supply, interface (4-bit parallel plus strobe) and switching contact LA

(FSA version only)

Designation

Function

U

B

Supply voltage DC + 24 V

0V

Power supply DC 0 V

Str.

The strobe output is High if there is a valid Electronic-Key
in the Electronic-Key adapter.

D

High corresponds to decimal value of 8 (MSB)

C

High corresponds to decimal value of 4

B

High corresponds to decimal value of 2

A

High corresponds to decimal value of 1 (LSB)

LA1

LA2

Normally open contact channel LA

Page 26/40

Subject to technical modifications

110845-04-03/12
