Manual EKS Light and Light FSA

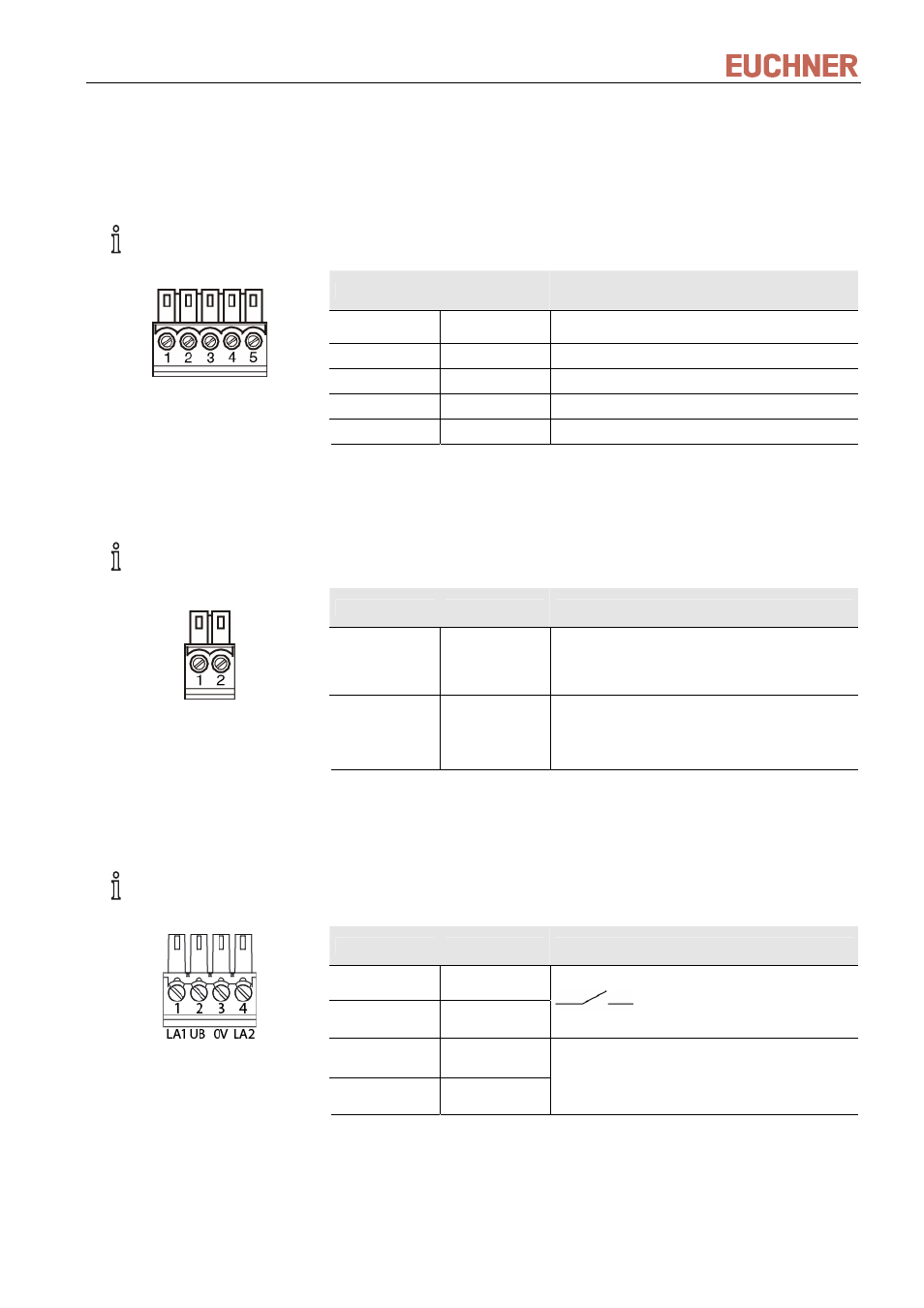

5.5 Connector assignment for compact version
5.5.1 Plug-in screw terminals of the interface (4-bit parallel plus strobe)
Information!
The coded plug for connection of the data interface is included with the Electronic-Key adapter.
Pin Designation Function
1 Strobe
Output is High if a valid Electronic-Key is
inserted
2 D High corresponds to decimal value of 8 (MSB)
3 C High corresponds to decimal value of 4
4 B High corresponds to decimal value of 2
Coded plug, 5-pole
with screw terminals
Conductor cross-section 0.14 ... 1,5 mm²
Tightening torque 0.22 Nm 5 A High corresponds to decimal value of 1 (LSB)
5.5.2 Plug-in screw terminals for power supply
Information!
The coded plug for connection of the power supply is included with the Electronic-Key adapter.
Pin Designation Function
1 U
B
Power supply DC + 24 V
Coded plug, 2-pole
with screw terminals
Conductor cross-section 0.14 ... 1,5 mm²
Tightening torque 0.22 Nm
2 0V Power supply DC 0 V
5.5.3 Plug-in screw terminals for power supply and switching contact LA
(only FSA version)
Information!
The coded plug for connection of the power supply and switching contact LA is included with the
Electronic-Key adapter.
Designation Pin Function
LA1 1
LA2 4
Normally open contact channel LA
U
B
2 Power supply DC + 24 V
Coded plug, 4-pole
with screw terminals
Conductor cross-section 0.14 ... 1,5 mm²
Tightening torque 0.22 Nm 0V 3 Power supply DC 0 V
