Manual EKS Light and Light FSA
4.1 Function of the DIP switches
The following settings can be made with the DIP switches:
 S1.1 (bit no. 15) even parity bit (even)
The number of switches set to ON from S1.2 to S2.10 is determined. If this value is an even number, then
switch S1.1 is set to OFF (respectively it remains in the factory setting). If this value is an odd number, then
switch S1.1 is set to ON.
 S1.2 (bit no. 14) no function
It is essential to set switch S1.2 to OFF!
 S1.3 to S1.6 (bit nos. 10 to 13) operating state
The operating state is set in binary form using switches S1.3 to S1.6. A decimal value from 0 to 15 can be
set.
 S2.1 to S2.10 (bit nos. 0 to 9) access code
The access code is set using switches S2.1 to S2.10. The interpretation of the values set here differs
depending on the operating state.

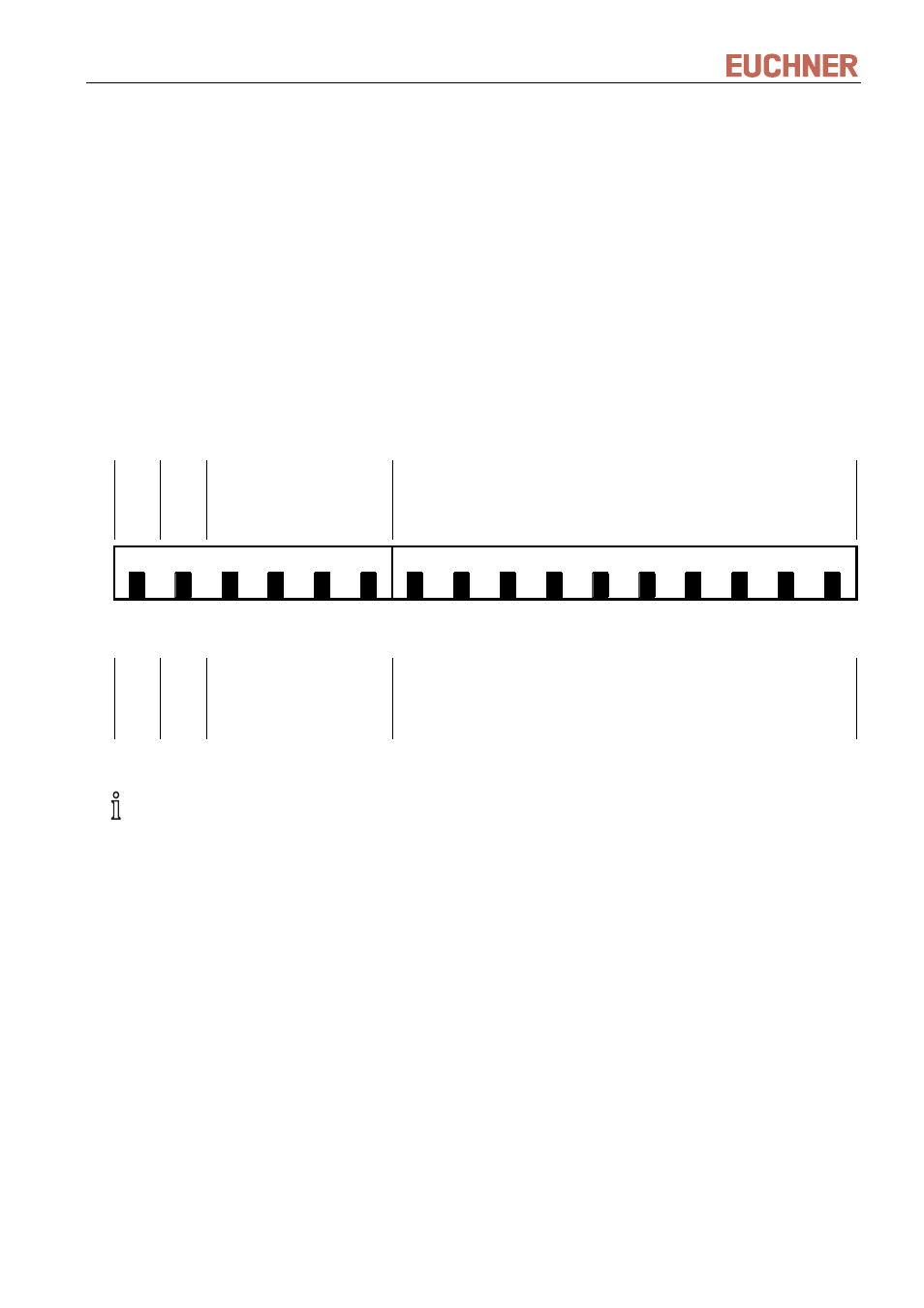

Bit
no. 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
MSB LSB MSB LSB
1 bit 1 bit 4 bits 10 bits
ON
OFF
S1.1 S1.2 S1.3 S1.4 S1.5 S1.6 S2.1 S2.2 S2.3 S2.4 S2.5 S2.6 S2.7 S2.8 S2.9 S2.10
Even
parity
No
funct.
Operating state
Operating State OS
Value: 0...15
dec
Access code
Access Code AC
Different use depending on operating state
(factory setting: all switches in OFF position)
Information!
The settings are only applied when the power supply is switched on.
If all switches are set to OFF, the entire parameter assignment is reset to the factory setting.
