Operating Instructions Safety System CES-A-UBA-01/CES-A-UBA-01B
31

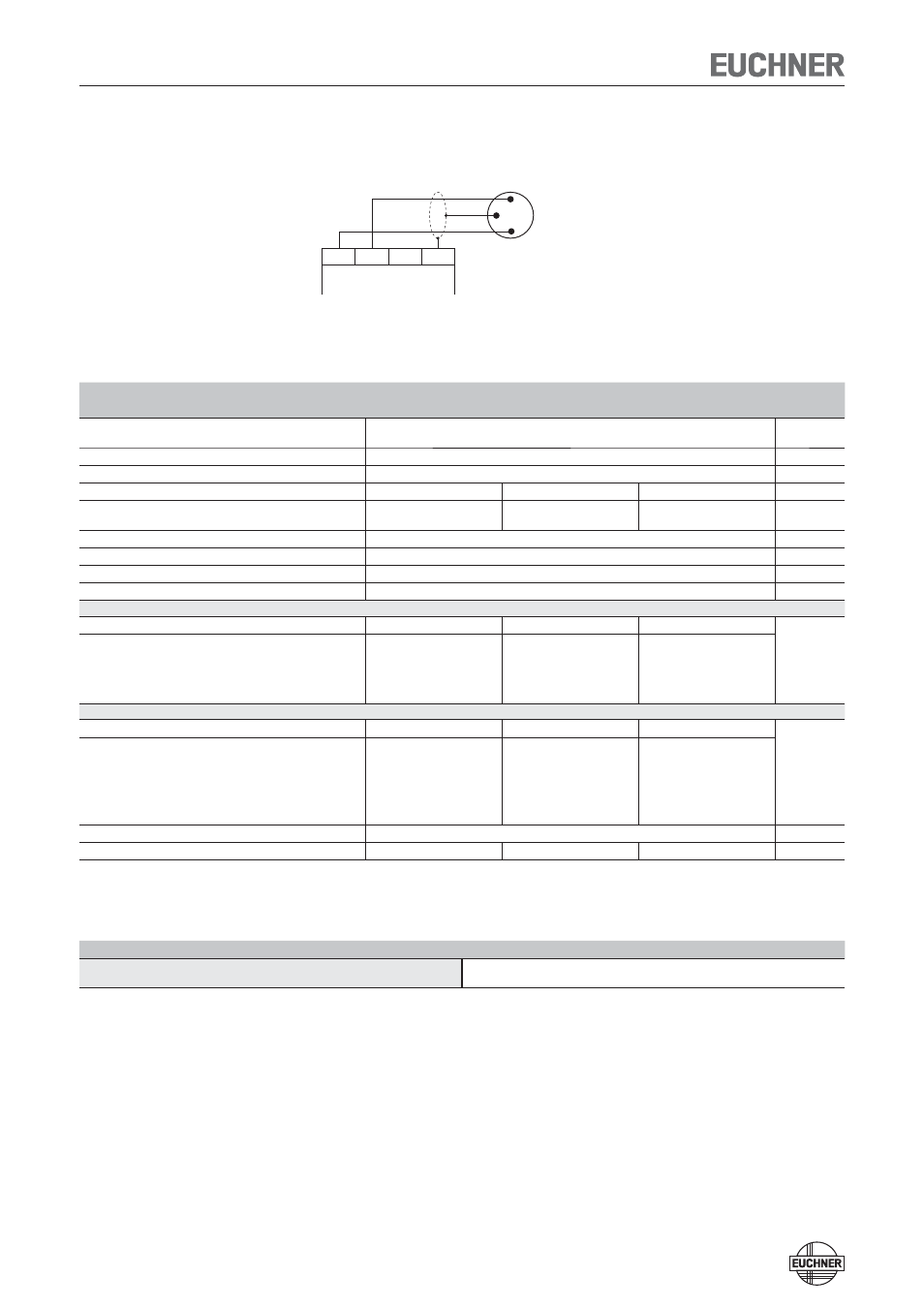

Pin assignment
Read head with plug connector
Technical Data
Parameter Value Unit
min. typ. max.
Housing material Nickel-plated CuZn housing sleeve
Plastic PBT GF20 cap
Dimensions M12 x 1, length 38 mm
Weight (incl. 10 m cable) 0.2 kg
Ambient temperature -25 - +70 °C
Ambient pressure
(only of active face in installed condition)
- - 10 bar
Degree of protection IP67
Installation position Any
Method of operation Inductive
Power supply Via evaluation unit
In combination with actuator CES-A-BMB on evaluation unit CES-A-UBA-01
Assured switch-off distance S
ar
- - 8.5
mm
Operating distance for center offset m = 0 1)
- Switch-on distance - 2.5 -
- Assured switch-on distance S
ao
1.6 - -
- Switching hysteresis 0.2 0.3 -
In combination with actuator CES-A-BMB on evaluation unit CES-A-UBA-01B
Assured switch-off distance S
ar
- - 10
mm
Operating distance for center offset m = 0 1)
- Assured switch-off distance S
ar
- - 10
- Switch-on distance - 5 -
- Assured switch-on distance S
ao
3.5 - -
- Switching hysteresis 0.1 0.3 -
Connection M8 plug connector (snap-action and screw terminals), 3-pin
Connection cable - - 15 m
1) These values apply to non-flush installation of the read head in steel.
Ordering table
Series Order no. / item
CES-A-LMN-SC
077790
CES-A-LMN-SC
H11 H12 SH1
1
3
4
BN
WH Screen
View on the plug
connector of the
read head Evaluation unit
CES-A-UBA...
