Operating Instructions Safety System CES-A-UBA-01/CES-A-UBA-01B
17
Technical Data
Note!
If a product data sheet is included with the product, the information on the data
sheet applies in case of discrepancies with the operating instructions.
Evaluation unit CES-A-UBA...
Ì
Housing for DIN rail mounting, IP 20
Ì
Relay output
Ì
1 read head can be connected

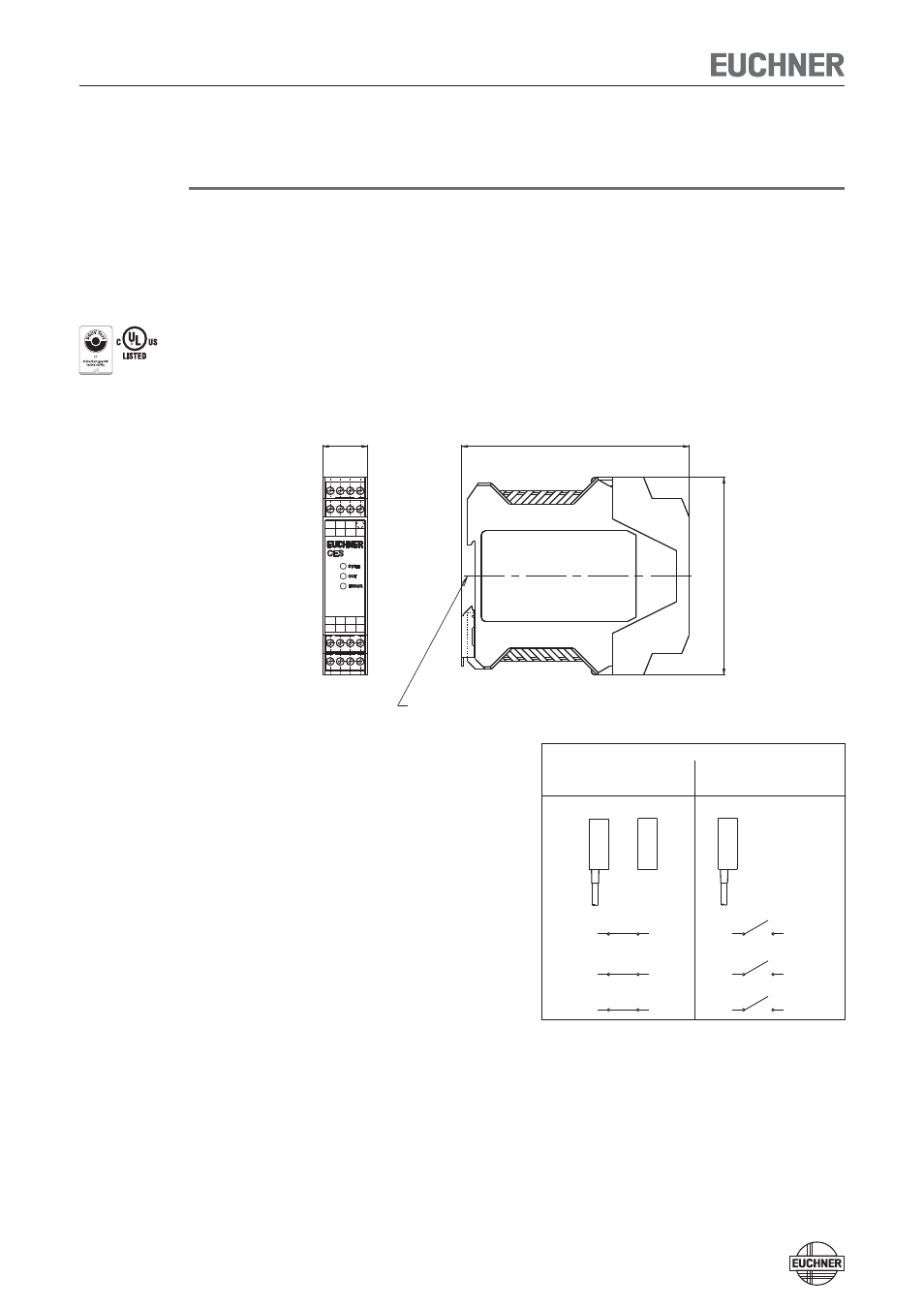

Dimension drawing
Switching characteristics
Ì
2 safety outputs
(relay outputs)
Ì
1 door monitoring contact
(semiconductor output,
not a safety output)
Approvals
Safety guard
closed
(actuator detected)
Open
(actuator not in the operating
distance)
Read head Actuator Read head
13 14
23 24
24 V OUT
13 14
23 24
24 V OUT
CES
STATE
OUT
ERROR
114 22,5
99
13 14 23 24
GND ERR OUT TST
24V 0V
H11 H12 SH1
Suitable for standard 35 mm DIN rail
