Routine Maintenance

Adjusting pan belt tension:

Step 1:

Power-down the fixture (see

) and disconnect

any power and data cables from the upper enclosure.

Step 2:

Place the fixture on its side on a stable surface.

Step 3:

Remove any hook or hanging hardware from the data module side of the upper

enclosure and loosen the two rubber feet on that side.

Step 4:

Remove the two screws securing the data module to the upper enclosure and

carefully slide the module out of the upper enclosure. Place the module out of the

way, keeping all connectors plugged in.

Step 5:

Loosen, but do not remove, the four screws securing the pan motor assembly to

the upper enclosure.

Step 6:

Pinch the pan belt together a few times to adjust the motor placement. Allow the

motor to settle against the spring. Make sure the spring is centered on the plate.

Step 7:

Tighten the motor screws in a star pattern.

Step 8:

Carefully slide the data module back into the upper enclosure. Ensure that no

wires are pinched in the process.

Step 9:

Reinstall and tighten the two screws securing the data module to the upper

enclosure.

Step 10: Retighten the screws securing the rubber feet on the data module side and

reinstall any removed hanging hardware or hooks, if necessary.

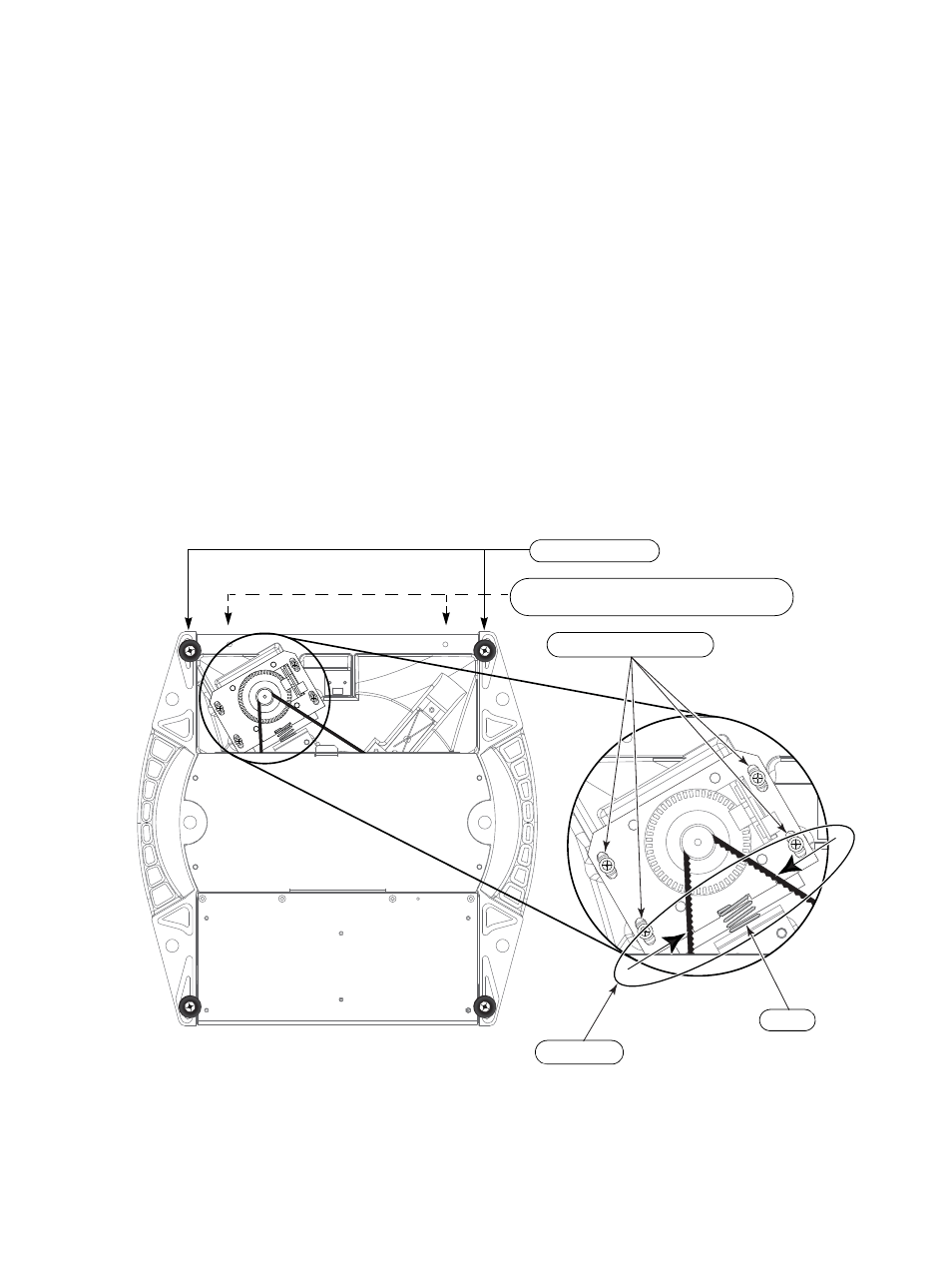

Data module screws on opposite side of upper

enclosure. (Module not shown in this drawing.)

Pan Motor Assembly

Spring

Motor Adjustment Screws

Rubber feet screws

Belt Tension
