Basic Assembly

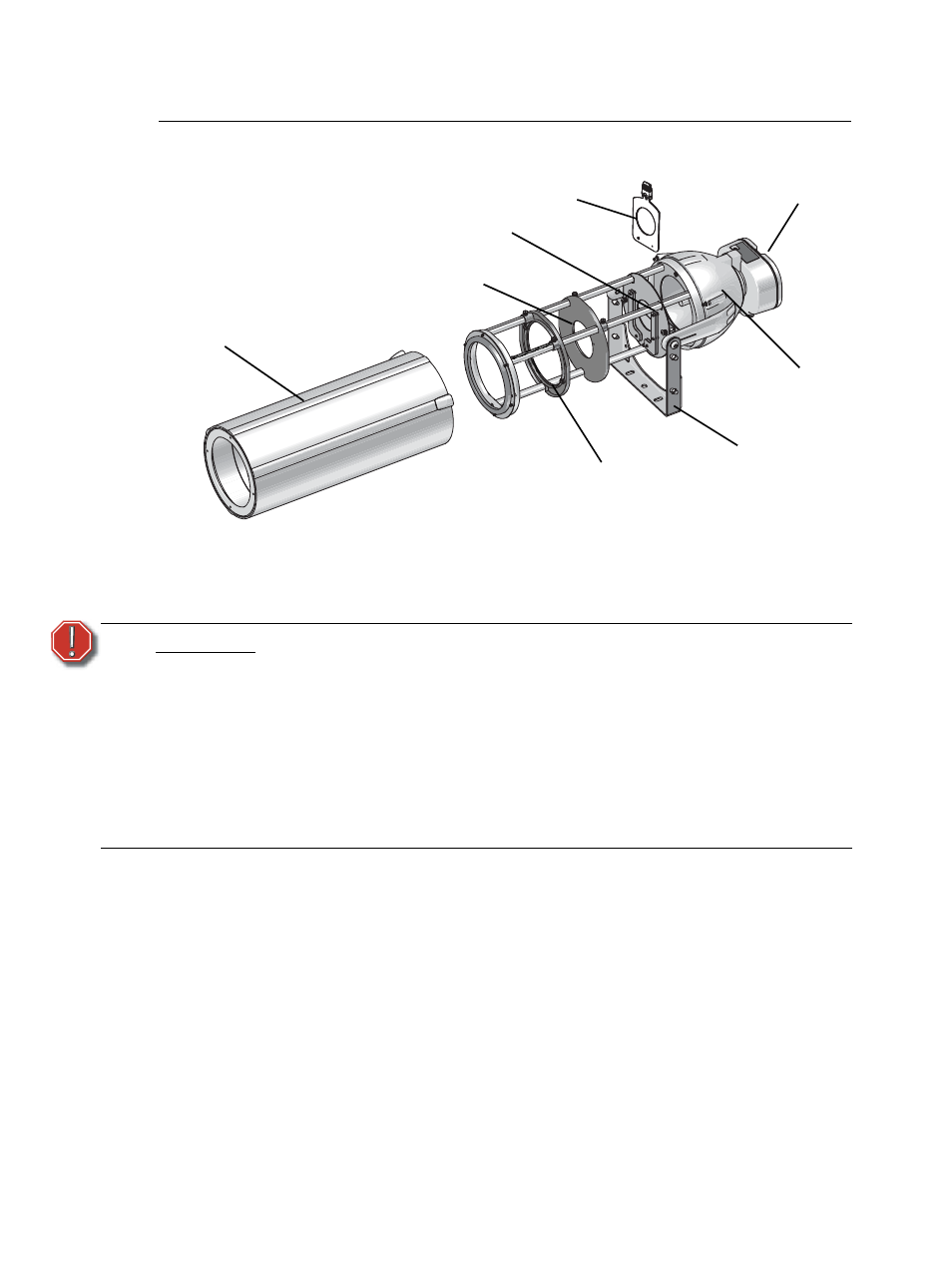

Figure-1 Components of the Source Four HID Zoom Fixture.
Basic Information
ETC’s Source Four XT HID Zoom is a Source Four spotlight for all-weather use. Powerful Source
Four optics, light output and energy savings in a sleek IP66-rated watertight and dust proof design.
XT features ETC’s Source Four Zoom optical system plus our long life 12,000-hour, 150W HID
lamp. Hang by yoke, place on ground, attach to poles and other structures.
There are two Source Four XT HID models available:
• 15° - 30° Zoom
• 25° - 50° Zoom
W A R N I N G : Please note the following safety warnings before use:
Do not use this fixture with a damaged power lead. If the power lead
(cordset) is damaged, it must be replaced.
Do not mount the fixture on or near combustible surfaces.
Do not use this fixture if glass lens is deeply scratched or cracked. Damaged
lenses must be replaced.
Do not operate the fixture for long periods of time without the barrel
installed.
Remove foam packing from internal lenses before connecting power to your
fixture.
Reflector
housing
Ballast Pattern holder
Barrel
Yoke
Focus lens
and frame
Field lens
and frame
Pattern holder
slots
15°- 30° shown
