3.3 CAN-CAN Daisy-Chain (CBL-RJ45CAN2)
Cable CBL-RJ45CAN2 is 20 cm long, it is used for “daisy-chaining” CAN nodes.
RJ45
Pin
No. Color
RJ45
Pin
No. Signal Description
1 Green 1 CAN-H CAN_H bus line
2 Yellow 2 CAN_L CAN_L bus line
3 White 3 CAN_GND CAN ground
4 — — — —
5 — — — —
7 — — — —
8 — — — —
body
Drain
Wire
body shield cable shield
1
The shields of the two RJ-45 plugs are connected to each other through the cable
braid.

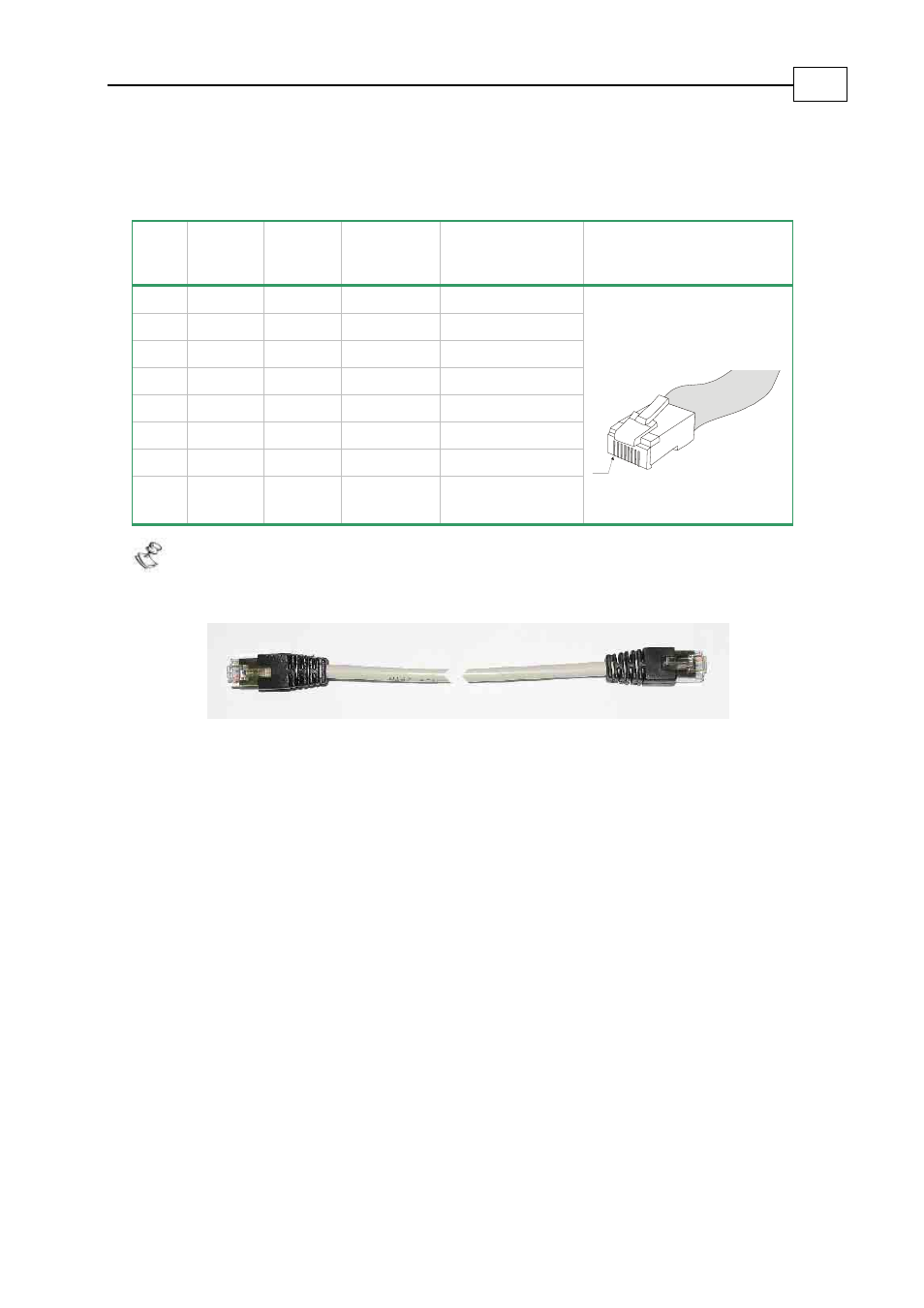

Figure 3: CAN Cable (Part No. CBL-RJ45CAN2)
