6. Power Cables
6.1 Auxiliary Power Cable (CBL-CEL24 -5 )
The auxiliary power cable is a 24-AWG shielded cable terminated by pins on the SimplIQ
side. The pins are screwed into the 2-pole Pheonix Terminal Block provided with the
Cornet.
Pin
No.
Color
Twisted &
Shielded
Wire
Signal
Description
1 Red +24VDC +24 VDC auxiliary power supply
2 Black
Pair
RET24VDC Return (common) of 24 VDC auxiliary power supply

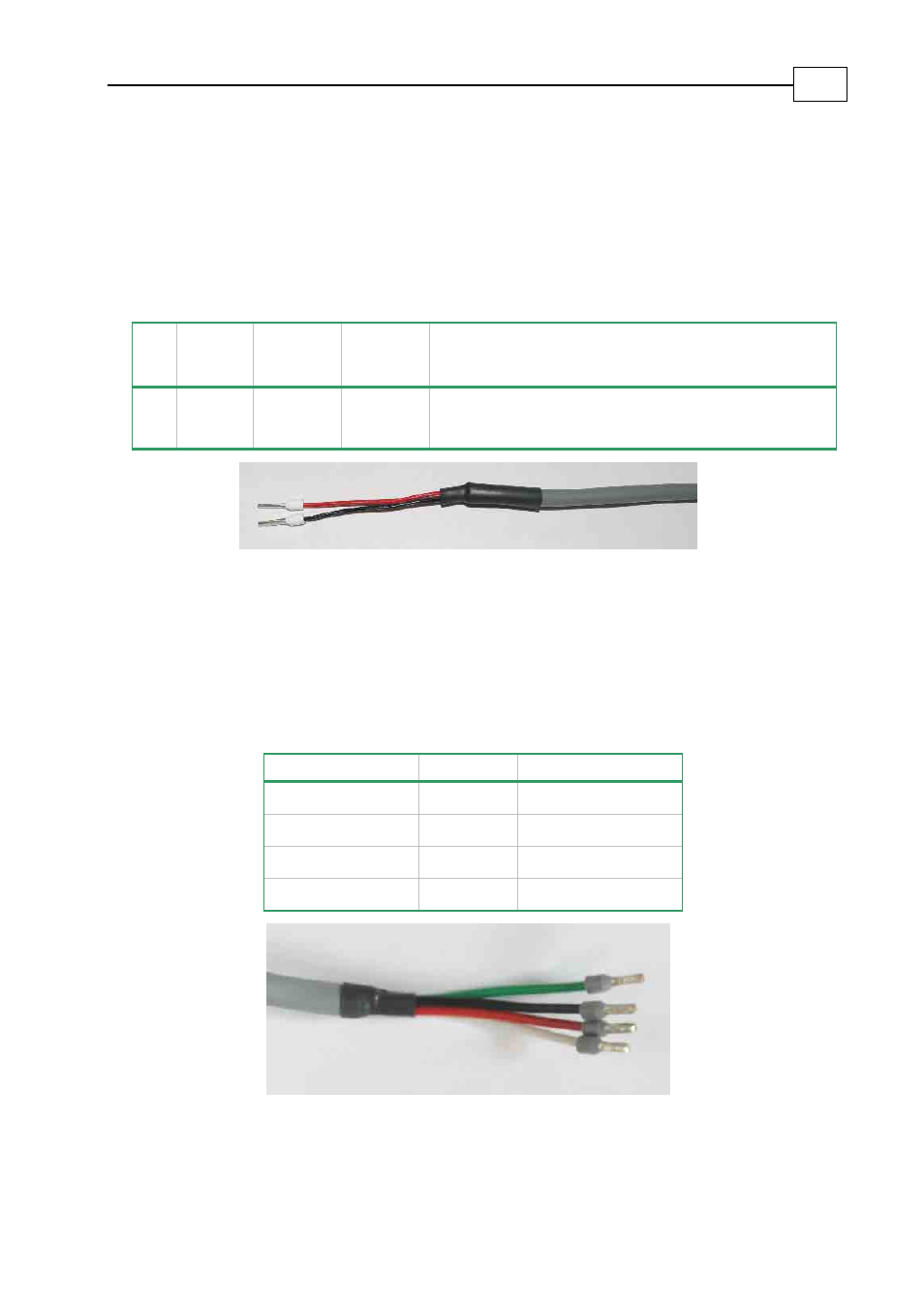

Figure 9: Auxiliary Power Cable (Part No. CBL-CEL24 -5 )
6.2 General Purpose Power Cable (CBL-MTRPWR -5 )
CBL-MTRPWR is a general-purpose motor power cable. It is made from four 14-AWG
shielded wires with pin terminals on the Cornet drive. The pins are connected to the
Pheonix Terminal Block supplied with the Cornet. The other end is open so that it can be
attached to a customer-specific connector.
Color Signal Description
White M1 Motor Phase 1 (U)
Black M2 Motor Phase 2 (V)
Red M3 Motor Phase 3 (W)
Green PE Ground
Figure 10: General-Purpose Power Cable (Part No. CBL-MTRPWR -5 )
