6.3 Motor Cable (CBL-MTRPWR1 -5 )
CBL-MTRPWR1 -5 is a 24-AWG shielded cable in which each wire, on the SimplIQ drive
side, is connected to a pin terminal and the wires on the motor side are connected to a 4-
pole socket. This cable is designed for connecting a Cornet to a Metronix APM-SAR, SA, SB
or SC motor.
Color
Signal
Drive Side Description
AMP Pin No.
Motor Side
Brown & White M1 Motor Phase 1 (U) 1
Pink & Grey M2 Motor Phase 2 (V) 2
Blue & Red M3 Motor Phase 3 (W) 3
Green & Yellow PE Ground 4

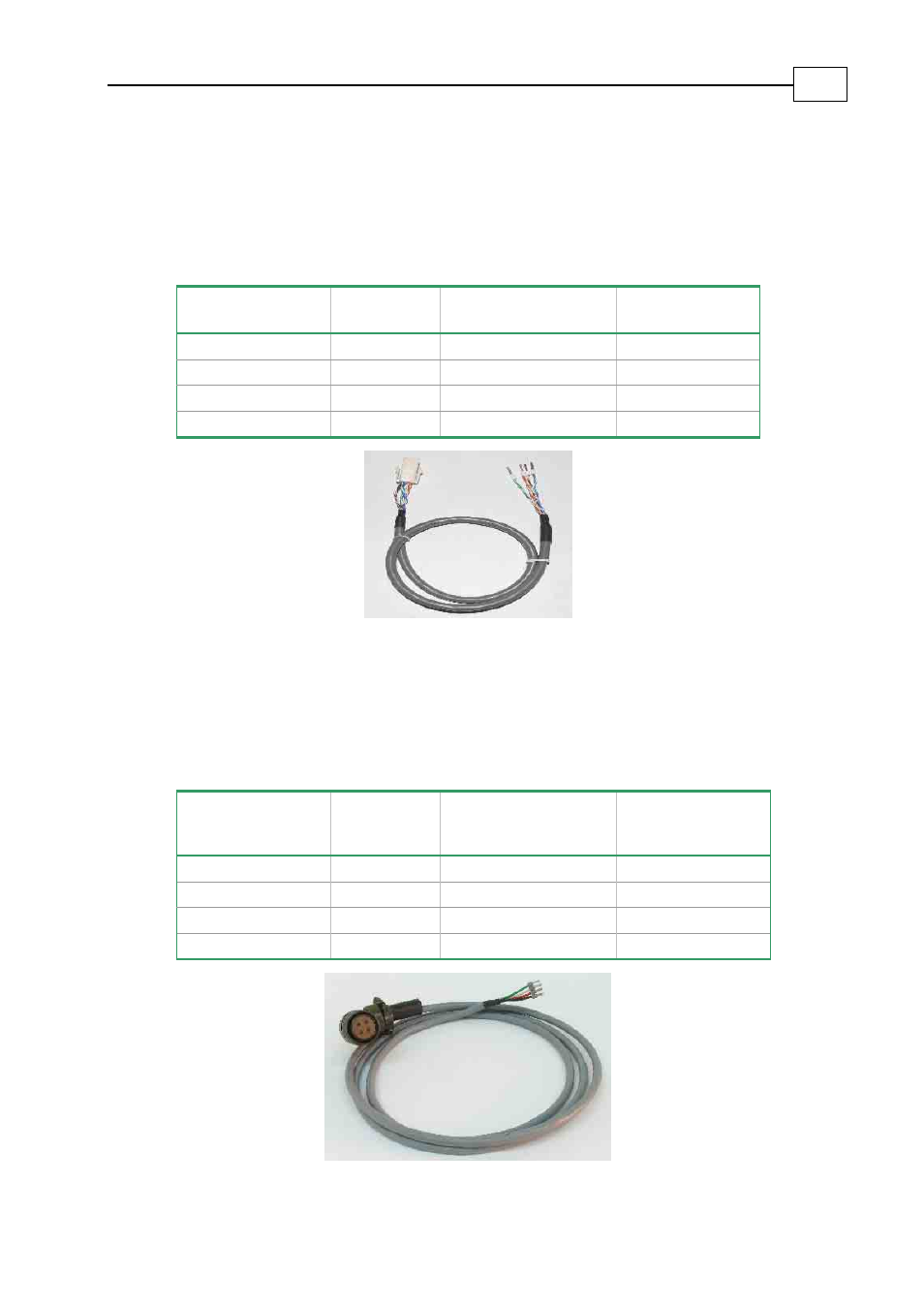

Figure 11: SAR, SA, SB, SC-type Motor Cable (Part No. CBL-MTRPWR1 -5 )
6.4 Motor Cable (CBL-MTRPWR2 -5 )
CBL-MTRPWR2 is designed to provide power to Metronix SE motors. It is made from four
14-AWG shielded wires with pin terminals on the Cornet side. The other end has an
Amphenol 4-pole socket so that it can be attached to an Amphenol plug on the motor.
Color
Signal
Drive Side
Description Amphenol
Pin No.
Motor Side
White M1 Motor Phase 1 (U) A
Black M2 Motor Phase 2 (V) B
Red M3 Motor Phase 3 (W) C
Green + Braid PE Ground D
Figure 12: SE-type Motor Cable (Part No. CBL-MTRPWR2 -5 )
Cornet Cable Kits
MAN-CBLKIT-COR (Ver. 1.0)
13
