4.3 Digital Outputs (CBL-D001 -5 )
The digital output cable is a 26-AWG shielded cable that is connected to the General I/O
port on the Cornet. It is connected using a 15-pin Hi-Density D-sub plug.
Pin Color Signal Pair Function Pin Position
1 Brown OUT1 Programmable output 1
6 White OUTRET1
pair
Programmable output return 1
2 Grey OUT2 Programmable output 2
7 Pink OUTRET2
pair
Programmable output return 2
3 Red OUT3 Programmable output 3
8 Blue OUTRET3
pair
Programmable output return 3
4 Green OUT4 Programmable output 4
9 Yellow OUTRET4
pair
Programmable output return 4
5 Orange OUT5 Programmable output 5
10 Cyan OUTRET5
pair
Programmable output return 5
11 Purple OUT6 Programmable output 6
12 Black OUTRET6
pair
Programmable output return 6

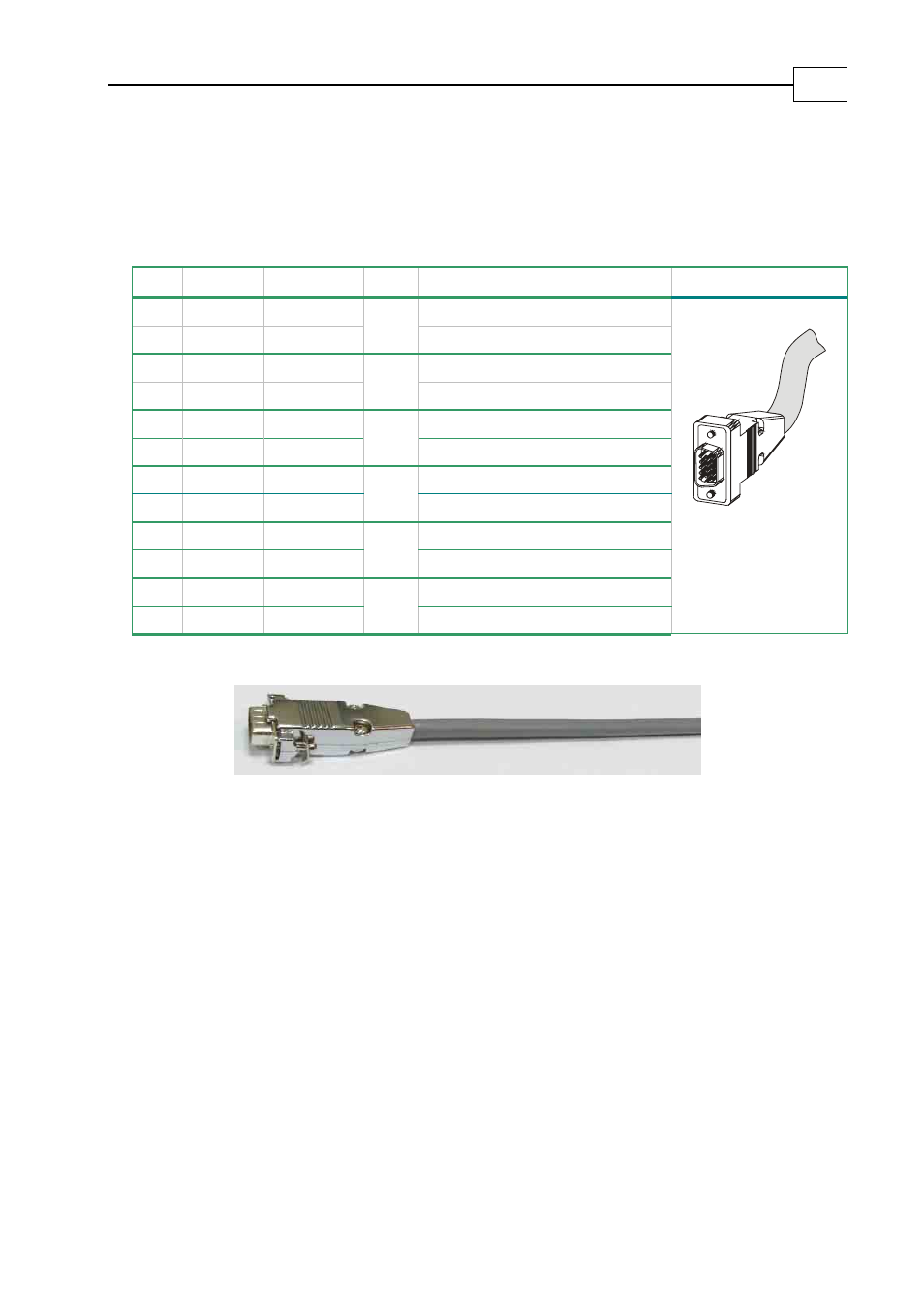

Figure 6: Digital Output Cable (Part No CBL-D001 -5 )
15 Pin
Hi-Density
D-sub
Plug
