3. Communication Cables
The communication cables use 26-AWG twisted pair shielded cable. They are connected
using an 8-pin RJ-45 plug. Elmo drives can communicate using the following options:
!
RS-232, full duplex
! CANopen
3.1 RS-232 Serial Communications (CBL-RJ452321 -5 )
RJ45
Pin
No. Color
D-type
Female
Pin No. Signal
Description
3 Brown 2 Tx RS-232 transmit
5 White 5 COMRET Communication
return
6 Green 3 Rx RS-232 receive
body
Drain
Wire
body shield cable shield
1
The shields of the RJ-45 and D-type plugs are connected to each other through the
cable braid.

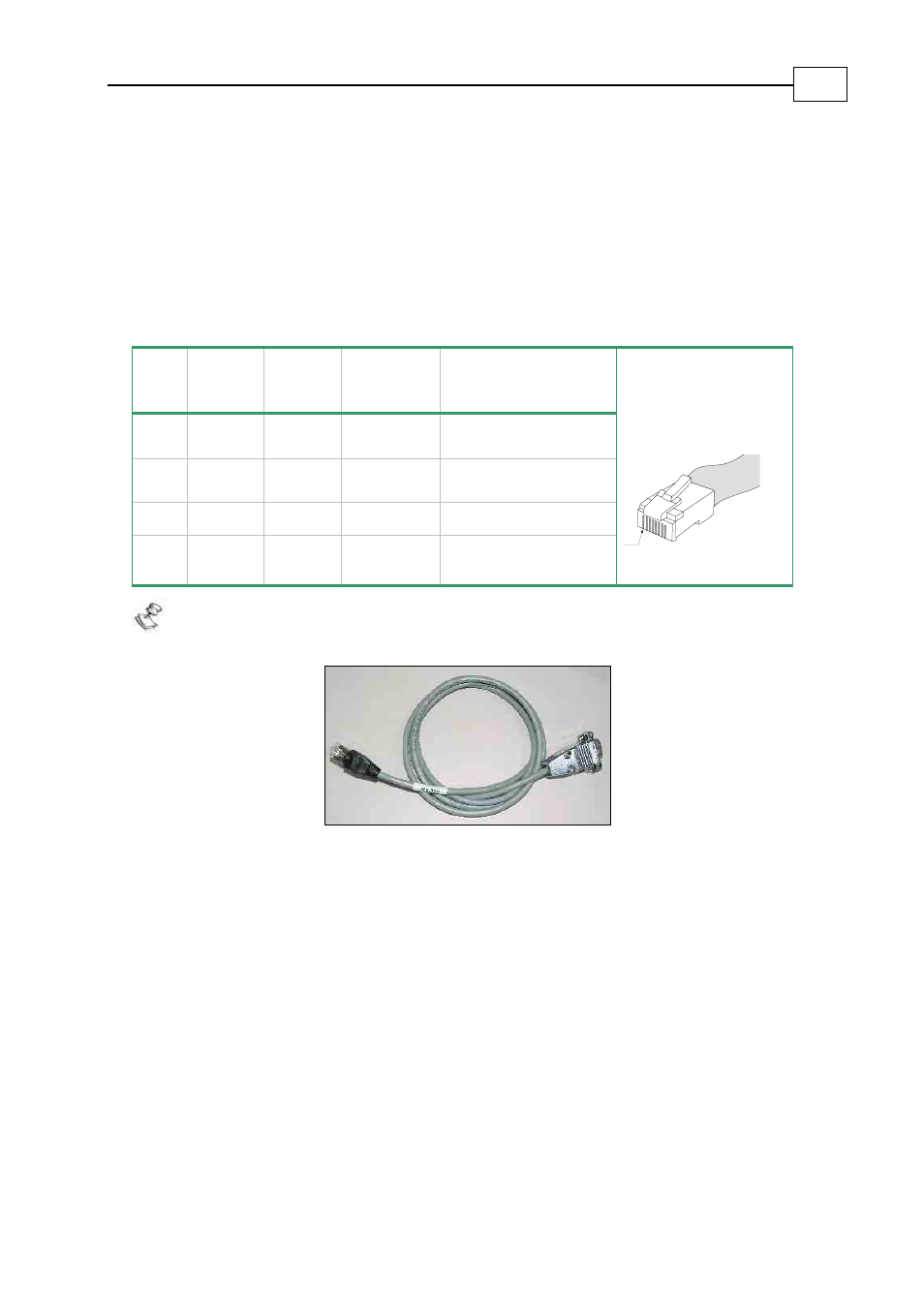

Figure 1: RS-232 Communications Cable (Part No. CBL-RJ452321 -5 )
Cornet Cable Kits
MAN-CBLKIT-COR (Ver. 1.0)
4
