5. Feedback Cables

The main feedback cables are made of 24-AWG shielded cable. The feedback cable has a 15-
pin D-sub plug which connects to the FEEDBACK A port on the Cornet.

•

The Main Feedback Cable (CBL-DFDBK) is open on the motor side so that it can be
connected to customer-specific connectors.

•

Encoder Cable CBL-MTRENC2 has a 15-pole socket on the motor side for Metronix
APM-SAR, SA, SB and SC motors.

•

Encoder Cable CBL-MTRENC4 has a 17-pole Amphenol socket on the motor side for
Metronix APM-SE motors.

5.1 Main Feedback Cable (CBL-DFDBK

-5

)

Pin

No. Color

Pairs

1 Green

10 Yellow

pair

2 Pink

3 White

4 Brown

pair

5 Orange

6 Cyan

pair

7 Blue

8 Red

pair

9 –

11 –

12 –

13 –

14 Black

The specific
functionality of each pin
is fully outlined in the
Cornet Installation Guide

(MAN-CORIG)

15 Purple

pair

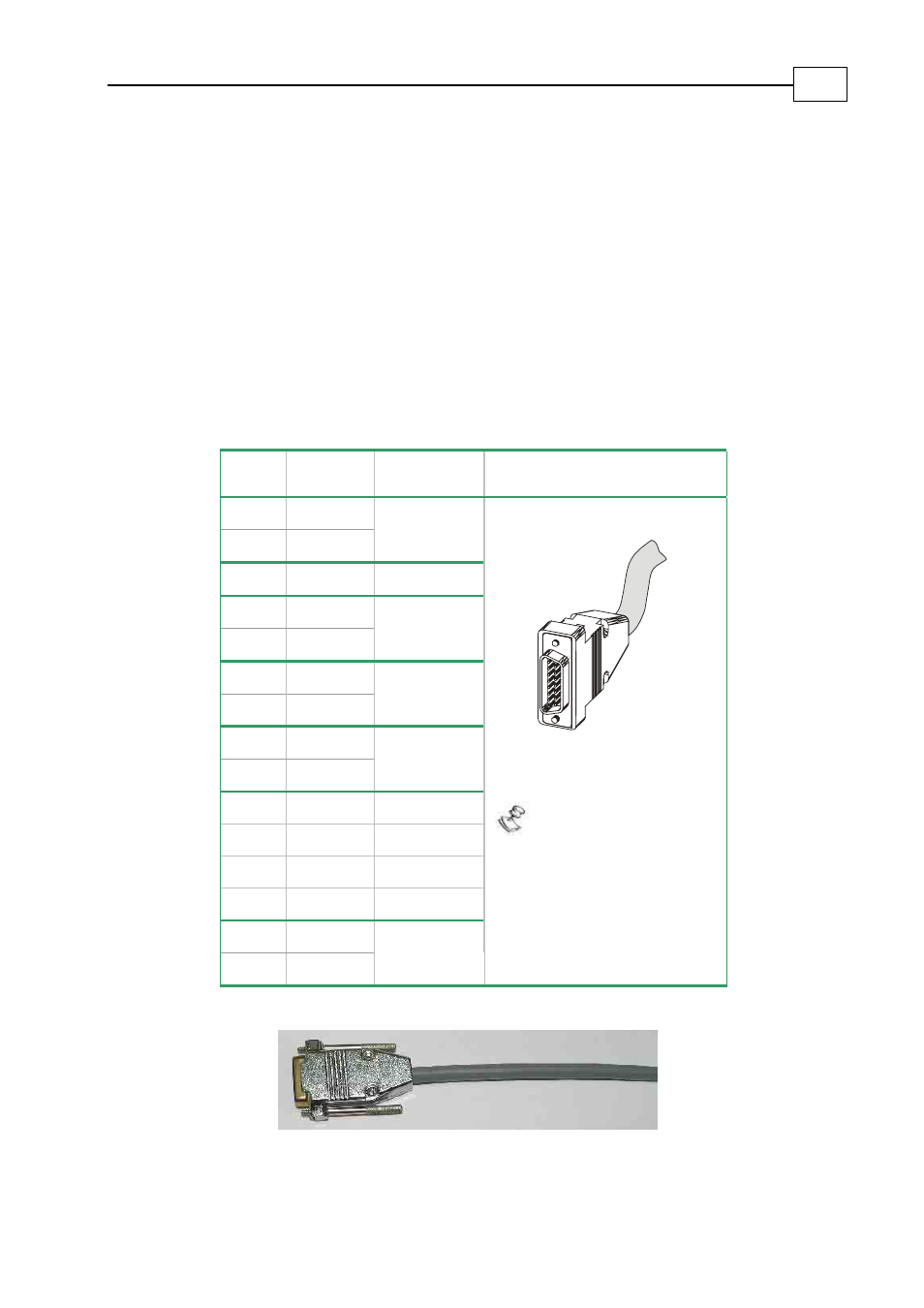

Figure 7: Single-sided Main Feedback Cable (Part No. CBL-DFDBK

-5

)

15 Pin
D-sub
Plug
