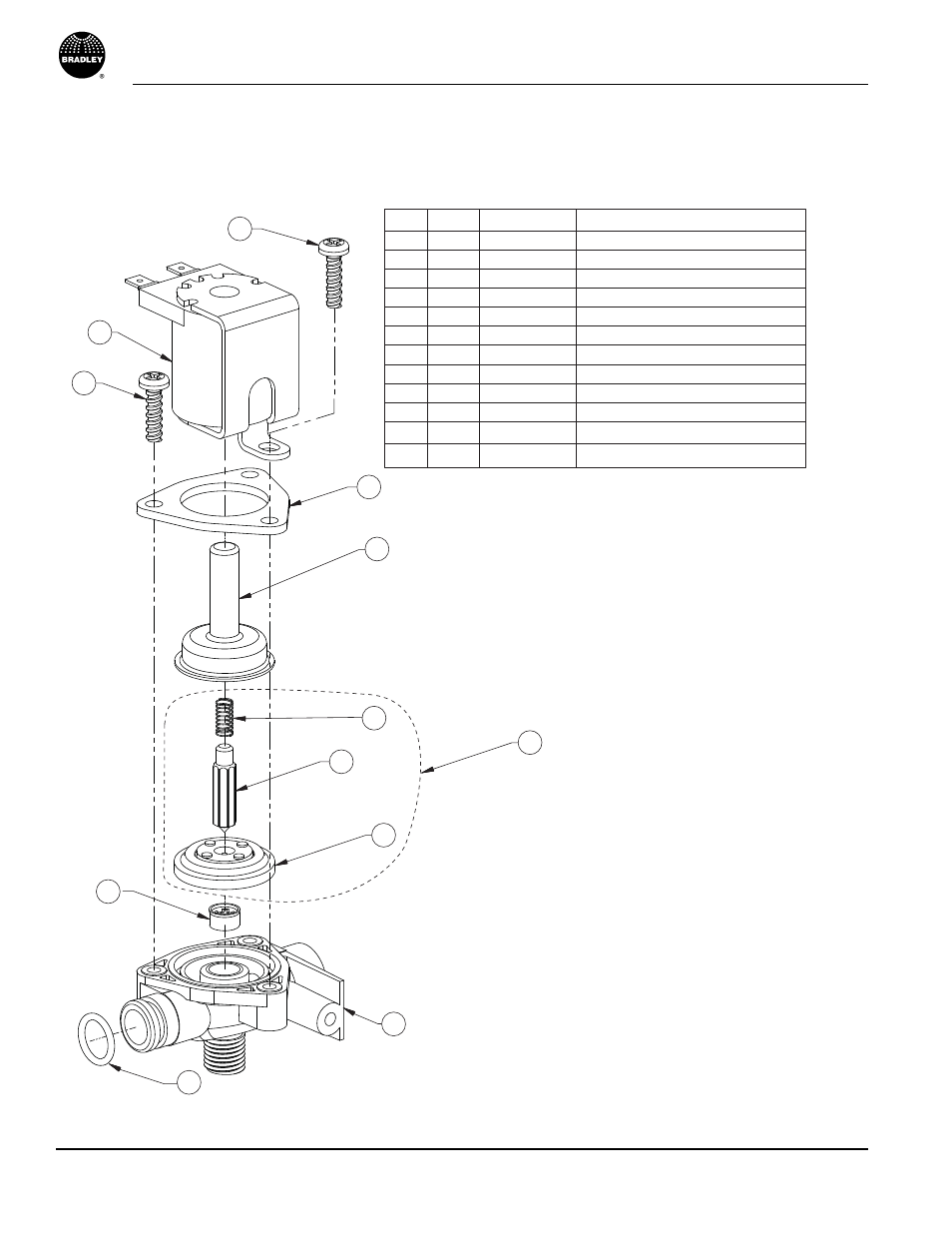

Infrared Valve (IR) — Assembly —
Solenoid Valve S07-068 (closed body) and S07-068A (thru body)
1
2
11
3
4
5
6
7
8
9
8
DESCRIPTION
QTY.
PART NO.
REF.
1
1
118-307
VALVE BODY, 1/4" CLOSED
2 1 269-983 DIAPHRAGM
3 1 269-577 ARMATURE
4 1 269-578 SPRING
5 1 269-1729 ARMATURE
HOUSING
6 1 269-1730 CLAMP,
ARMATURE
HOUSING
7 1 269-579 COIL,
SOLENOID
VALVE
8
3
160-447
SCREW, #8 X 5/8
9 1 125-165 O-RING,
#2-013
10
10
1
125-160
FLOW RESTRICTOR, .5 GPM
11 1 S65-113
REPAIR
KIT
1 1 118-307A VALVE
BODY,
1/4"
THRU
