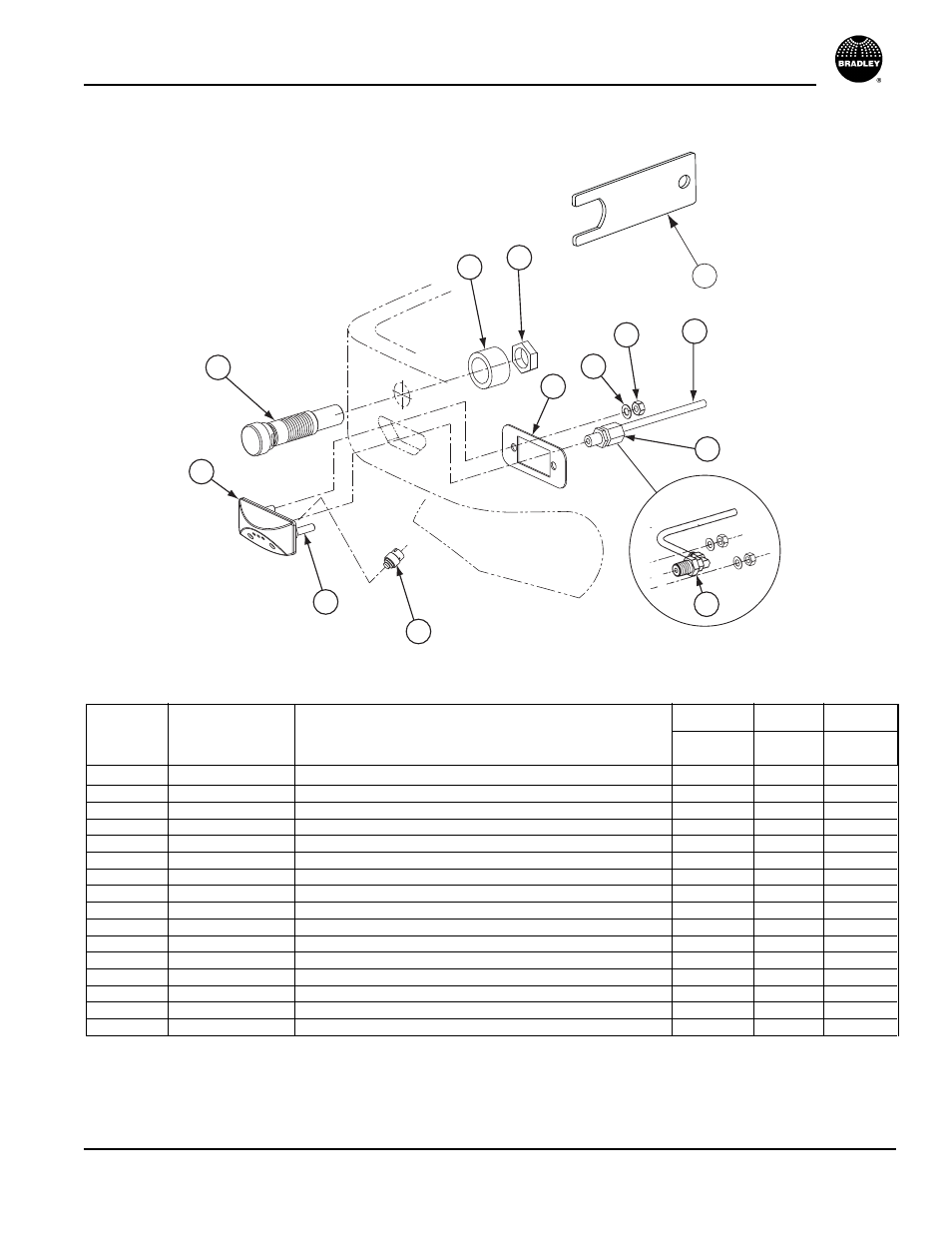

TouchTime
®
(TT) — Sprayhead (24V Plug-in Transformer)
10
1
2
9
3
4
11
12
6
7
8
5
13
Corner
Tri
Quad
Item
Part No.
Description
Qty
Qty
Qty
1
S83-139B
Switch Touchtime
2
3
4
2
269-1190
Window
4
6
8
3
115-131
Sprayhead
2
3
4
4
176-119
Threaded Rod
4
6
8
5
140-748
Backplate
2
3
4
6
161-026
Nut
4
6
8
7
142-002BS
Lockwasher
4
6
8
8
269-871
Fitting Straight (front sprayhead)
—
1
2
9
269-628
Fitting Swivel 90° (side sprayheads)
2
2
2
10
R68-600011-R
Tubing 1/4", Red (Specify Length in feet)
—
—
—
10
R68-600011-G
Tubing 1/4", Green (Specify Length in feet)
—
—
—
10
R68-600011-B
Tubing 1/4", Black (Specify Length in feet)
—
—
—
10
R68-600011-Y
Tubing 1/4", Yellow (Specify Length in feet)
—
—
—
11
182-115
Spacer
2
3
4
12
110-115
Nut, 1/2-14
2
3
4
13
130-023
Spanner Wrench
1
1
1
Parts List — TouchTime (Switch and Sprayhead)
