Terreon ® Multi-Fount Washfountains
Parts and Service Guide
30 Bradley Corporation • 215-1447 Rev. F; EN 07-005A 1/30/2008

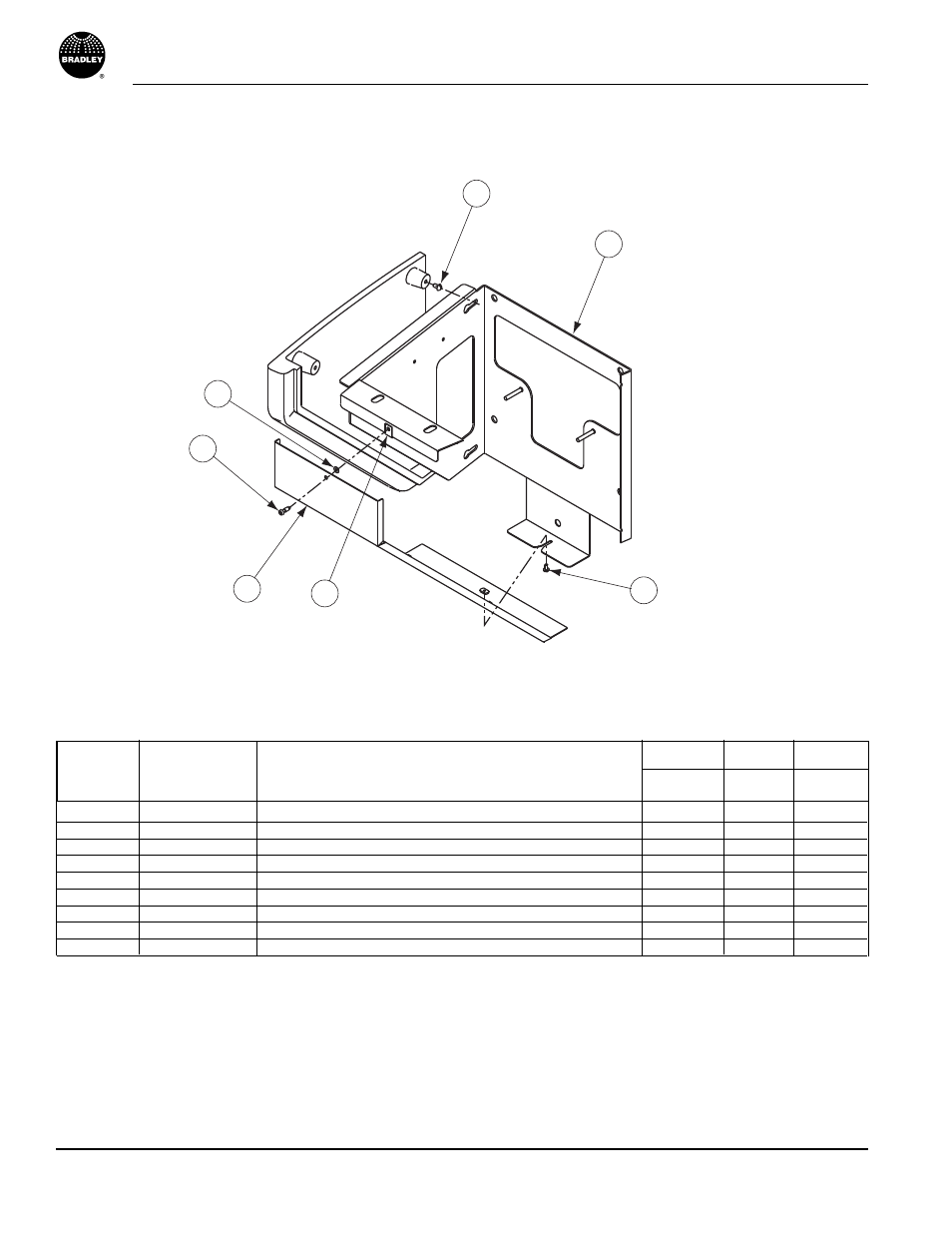

Wall Mount Pedestal — Assembly
1
2
6
7
3 4
5
Corner Tri Quad
Item Part No. Description Qty Qty Qty
1 S17-237 Pedestal Assy — 1 —
1 S17-280 Pedestal Assy — — 1
*2 160-169 Screw ¼-20 — 6 6
*3 P10-311 Screw 10-32 — 1 1
*4 146-055 Clip — 1 1
5 S04-102 Access Panel — Standard Height — 1 —
5 S04-107 Access Panel — Standard Height — — 1
**6 147-019 Screw — 1 1
**7 132-031 Washer — 1 1
Parts List — Wall Mount Pedestal
* Pedestal Assy (Item 1) part numbers include the screws and clip
** Access panel (Item 5) part numbers include the screw and washer
