Terreon
®
Multi-Fount Washfountains
Parts and Service Guide
14
Bradley Corporation • 215-1447 Rev. F; EN 07-005A
1/30/2008

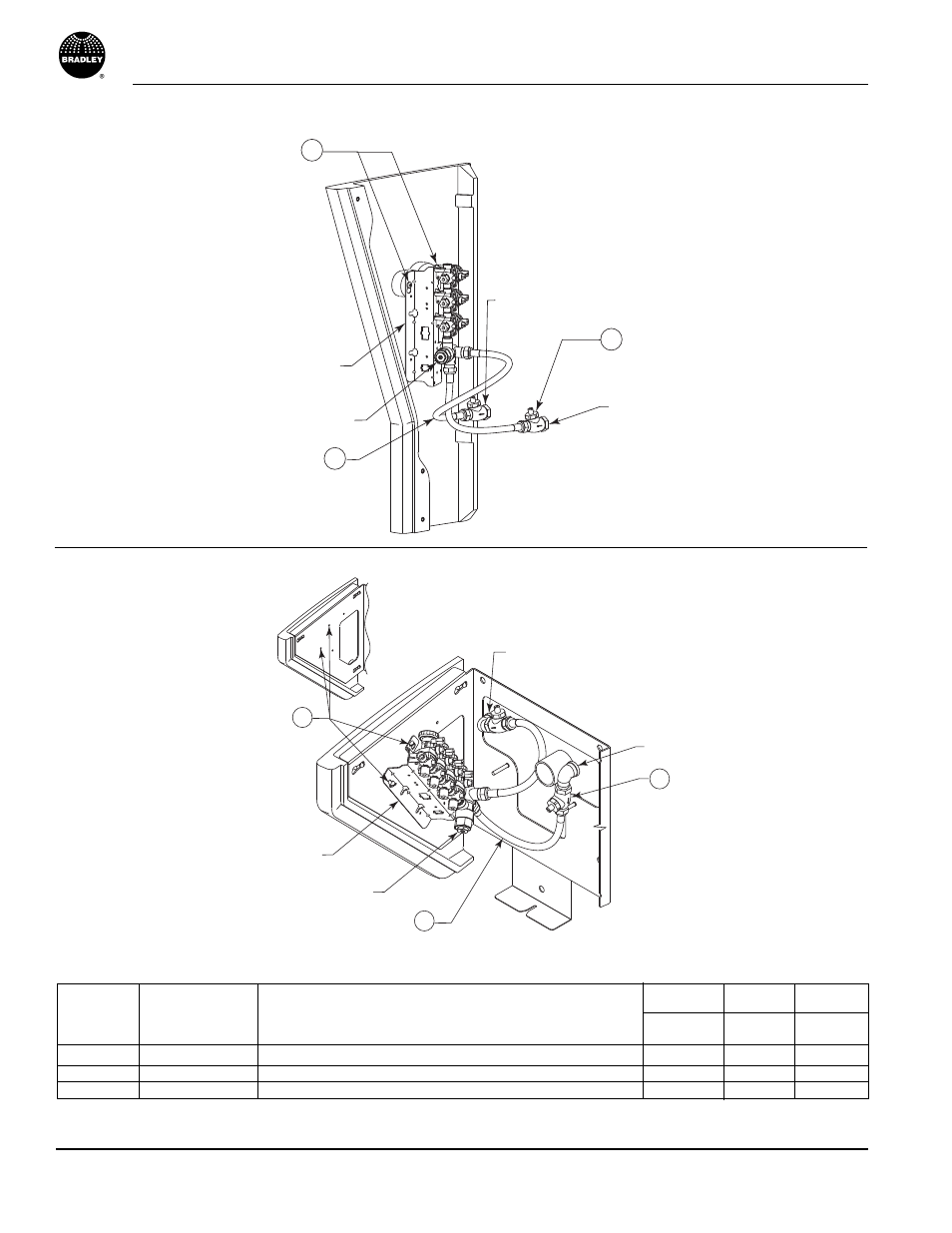

AST4 & IR Supply and Mixing Valve — Floor and Wall Mounted
Cold Supply Inlet
Hot Supply
Inlet
Vernatherm™ TMV
Air Valve Assembly
1
3
2
Tri-Fount Shown
Cold Supply Inlet
Hot Supply Inlet
Vernatherm™ TMV
Air Valve Assembly
2
1
3
Quadra-Fount Shown
Floor Mount
Wall Mount
Corner
Tri
Quad
Item
Part No.
Description
Qty
Qty
Qty
*1
269-1735
Flex Hose ½" NPT x 24" (Supply to TMV)
2
2
2
*2
S27-102
Check Stop
2
2
2
3
160-169
Screw
2
2
2
Parts List — Supply
*
Use Qty 1 for TL option, all models.
