Battery infrared (bir3) — sprayhead, Parts list — battery infrared sensor and sprayhead, Terreon – Bradley MF2922 User Manual
Page 15: Multi-fount washfountains
Parts and Service Guide
Terreon
®
Multi-Fount Washfountains
Bradley Corporation • 215-1447 Rev. F; EN 07-005A
15
1/30/2008

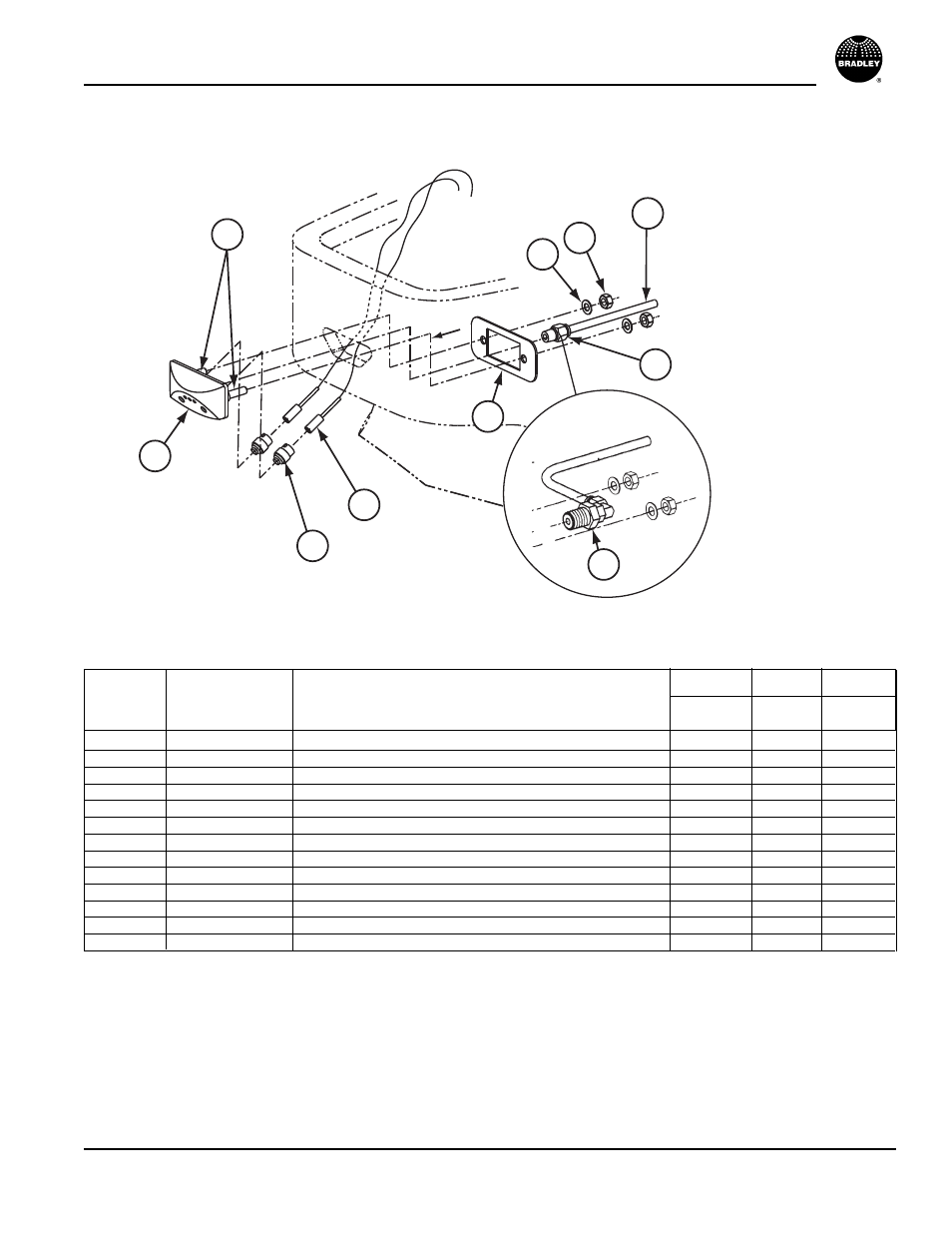

Battery Infrared (BIR3) — Sprayhead
10
1
2
3
4
5
6
7
8
9
Corner
Tri
Quad
Item
Part No.
Description
Qty
Qty
Qty
1
251-019A
Sensor Eye Leads
2
3
4
2
269-1190
Window
4
6
8
3
115-131
Sprayhead
2
3
4
4
176-119
Threaded Rod
4
6
8
5
140-748
Backplate
2
3
4
6
161-026
Nut
4
6
8
7
142-002BS
Lockwasher
4
6
8
8
269-871
Fitting Straight (front sprayhead)
—
1
2
9
269-628
Fitting Swivel 90° (side sprayheads)
2
2
2
10
R68-60001-R
Tubing 1/4", Red (Specify Length in feet)
—
—
—
10
R68-60001-G
Tubing 1/4", Green (Specify Length in feet)
—
—
—
10
R68-60001-B
Tubing 1/4", Black (Specify Length in feet)
—
—
—
10
R68-60001-Y
Tubing 1/4", Yellow (Specify Length in feet)
—
—
—
Parts List — Battery Infrared Sensor and Sprayhead
