Terreon ® Multi-Fount Washfountains
Parts and Service Guide
10 Bradley Corporation • 215-1447 Rev. F; EN 07-005A 1/30/2008

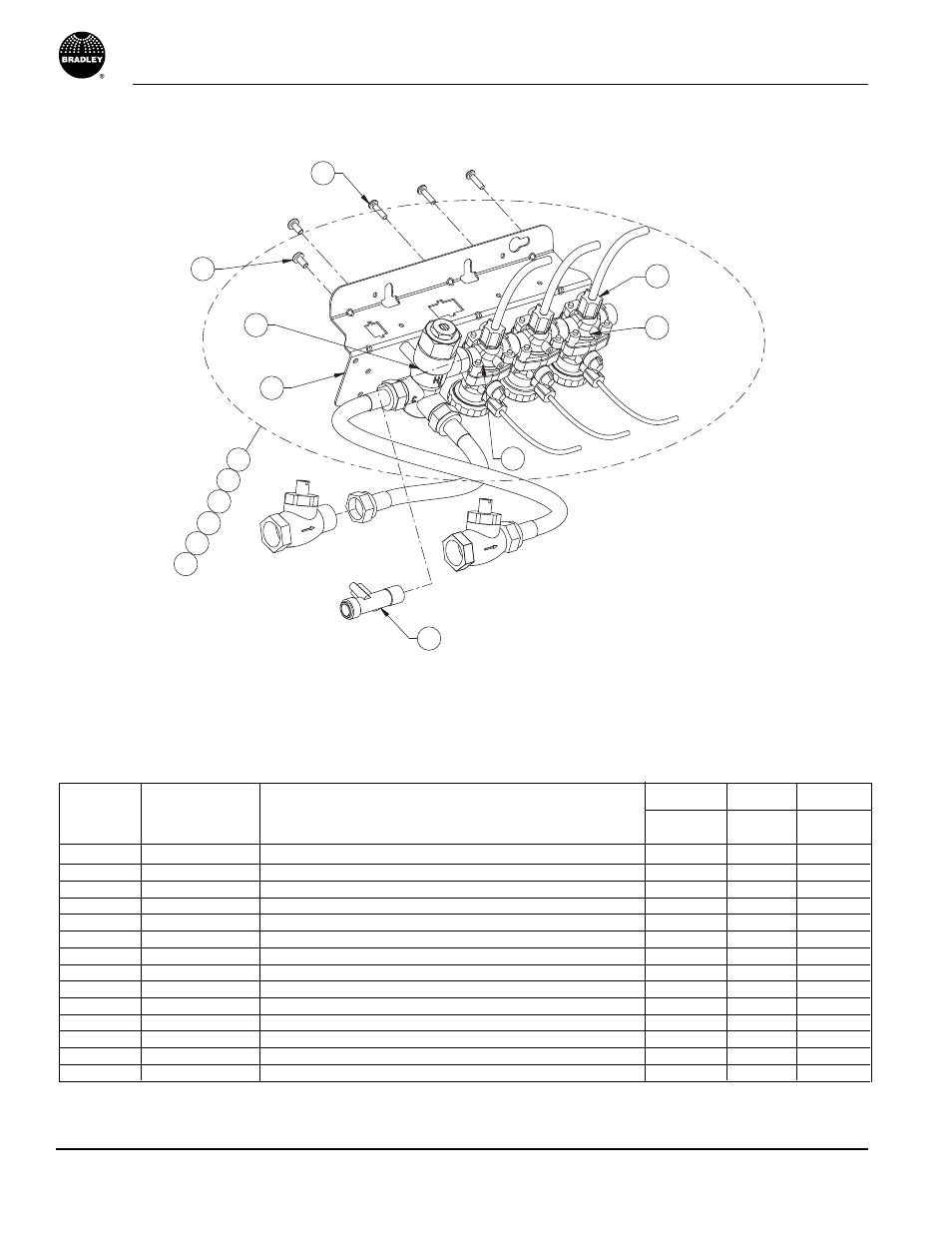

Air Metering Valve (AST4) — Assembly
10
11
12
7
13
9
8
1
2
3
4
5
6
Tri-Fount Shown
14
Corner Tri Quad
Item Part No. Description Qty Qty Qty
1 S08-452TMA TMA Dual Valve Assembly (includes 7-13 ) 1 — —
2 S08-452TL TL Dual Valve Assembly (includes 8-14 ) 1 — —
3 S08-453TMA TMA Tri Valve Assembly (includes 7-13 ) — 1 —
4 S08-453TL TL Tri Valve Assembly (includes 8-14 ) — 1 —
5 S08-454TMA TMA Quad Valve Assmbly (includes 7-13 ) — — 1
6 S08-454TL TL Quad Valve Assmbly (includes 8-14 ) — — 1
7 S01-520 Vernatherm Valve, 4 GP 1 1 1
8 140-928 Bracket, Ganged Valve 1 1 1
9 P18-054 Screw 10-24 x 3/8 PN 2 2 2
10 S07-078A AST4 Valve, through 1 2 3
11 S07-078 AST4 Valve, closed 1 1 1
12 110-231 Compression Nut, 1/4" 2 3 4
13 160-447 Screw 8-16 x 5/8 PN 2 3 4
14 S39-685 Adapter, Valve Inlet 1 1 1
Parts List — Air Metering Valve Assembly
