Terreon ® Multi-Fount Washfountains
Parts and Service Guide
26 Bradley Corporation • 215-1447 Rev. F; EN 07-005A 1/30/2008
Soap System ....Continued

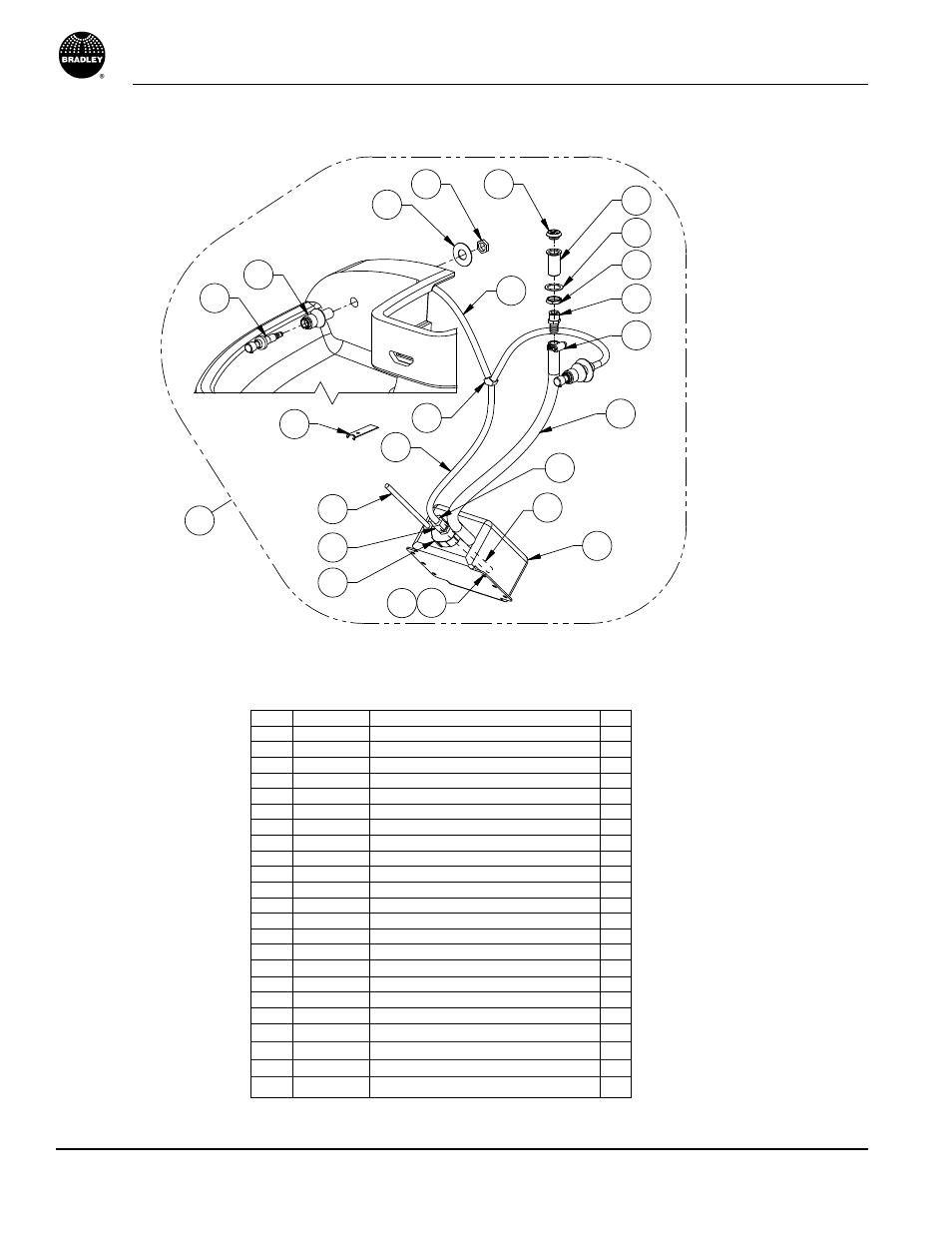

Parts List — Soap System
ITEM PART NO DESCRIPTION QTY
1 240-001 SOAP TANK 1
2 169-989 HOSE 5/8 ID *
3 146-040 HOSE CLAMP
4 169-916 MALE FITTING 1
1
5 110-093 NUT 1
6 142-002CJ WASHER 1
7 153-174 FILLER 1
8 136-011 SOAP FILLER CAP 1
9 R68-600021 TUBE VENT 3/16 *
10 136-049 SOAP TANK CAP 1
11 269-1832 BULKHEAD FITTING 1
12 R68-800002 TUBE SUPPLY 1/2 *
13 269-1833 TEE 1
14 110-115 NUT 2
15 142-002CB WASHER 2
16 S52-109 SOAP VALVE BODY ASSY 2
17 S09-083 SOAP VALVE 2
18 130-142 SOAP FILLER CAP WRENCH 1
19 161-026 NUT
20 142-002AV WASHER
21 269-1834 FERRULE
22 R68-600012 TUBE
23 S50-409 COMPLETE SOAP SYSTEM (incl. items 1-22) 1
2
2
1
*
1
2
4
5
6
7
3
9
10
19 20
22
21
11
12
13
12
14
15
16
17
18
8
23
* SPECIFY LENGTH IN FEET
