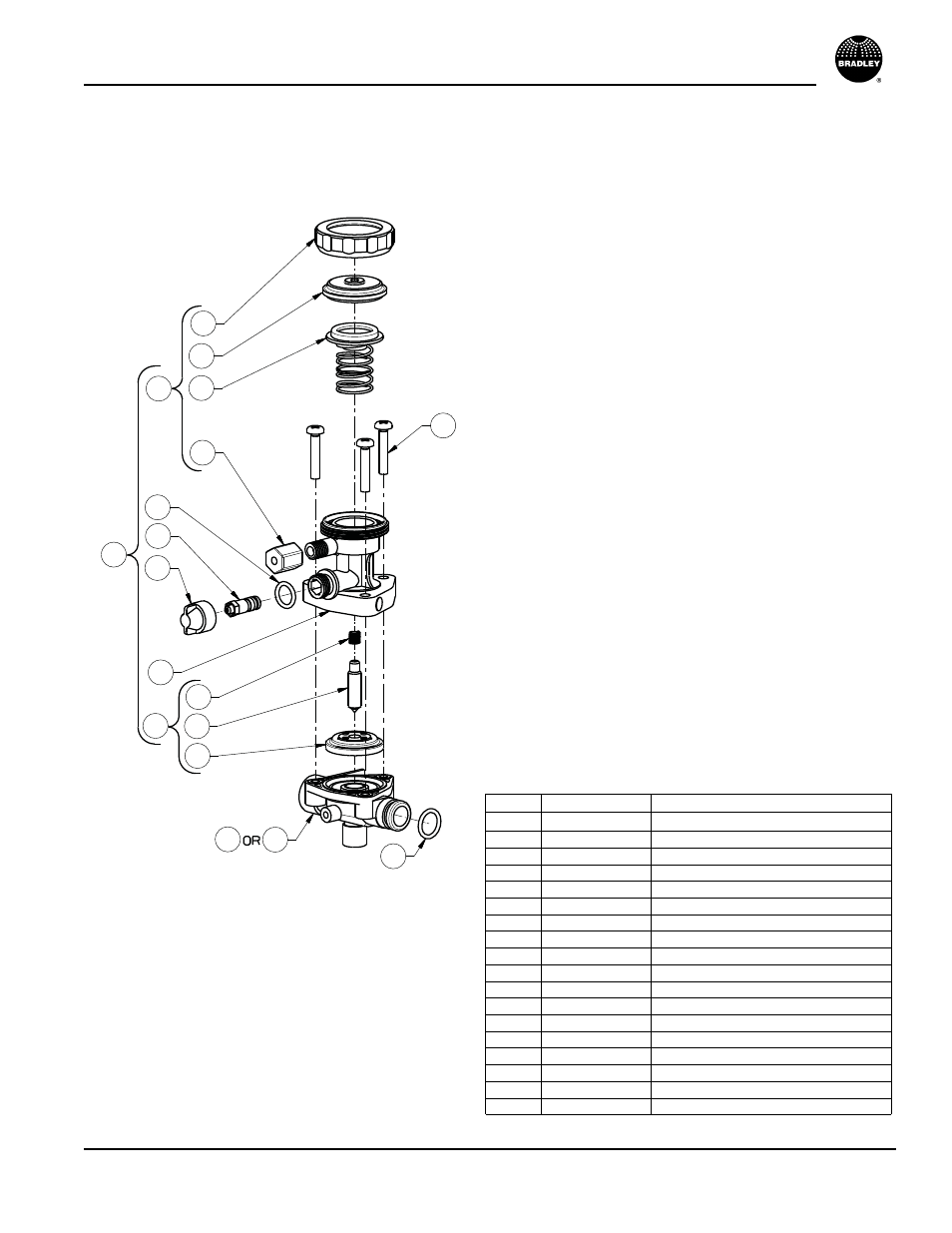

AST4 Valve Repair Kits
1
3
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
125-165
O-Ring
2
118-307A
Valve Body-Manifolded
3
118-307
Valve Body-Closed
4
269-983
Diaphragm
5
269-577
Armature, Valve
6
269-578
Spring, Valve
7
118-309
Cover, AST4 Valve
8
107-538
Cover, AST4 Valve Timer
9
S27-305
Timer, ASM, AST4 Valve
10
125-001BY
O-Ring
11
110-234
Compression Nut, 1/8”
12
S39-591
Magnet/Diaphragm Assy
13
107-535
Cover, AST4 Valve
14
110-233
Clamp Nut, AST4 Valve
15
160-449
Screw 8-16 x 7/8”
16
S65-261
Repair Kit-AST4Valve
17
S65-262
Repair Kit-AST4 Valve-Upper
18
S65-260
Repair Kit-AST4 Valve-Complete
ITEM
PART NO.
DESCRIPTION
