Parts and Service Guide
Terreon ® Multi-Fount Washfountains
Bradley Corporation • 215-1447 Rev. F; EN 07-005A 29 1/30/2008

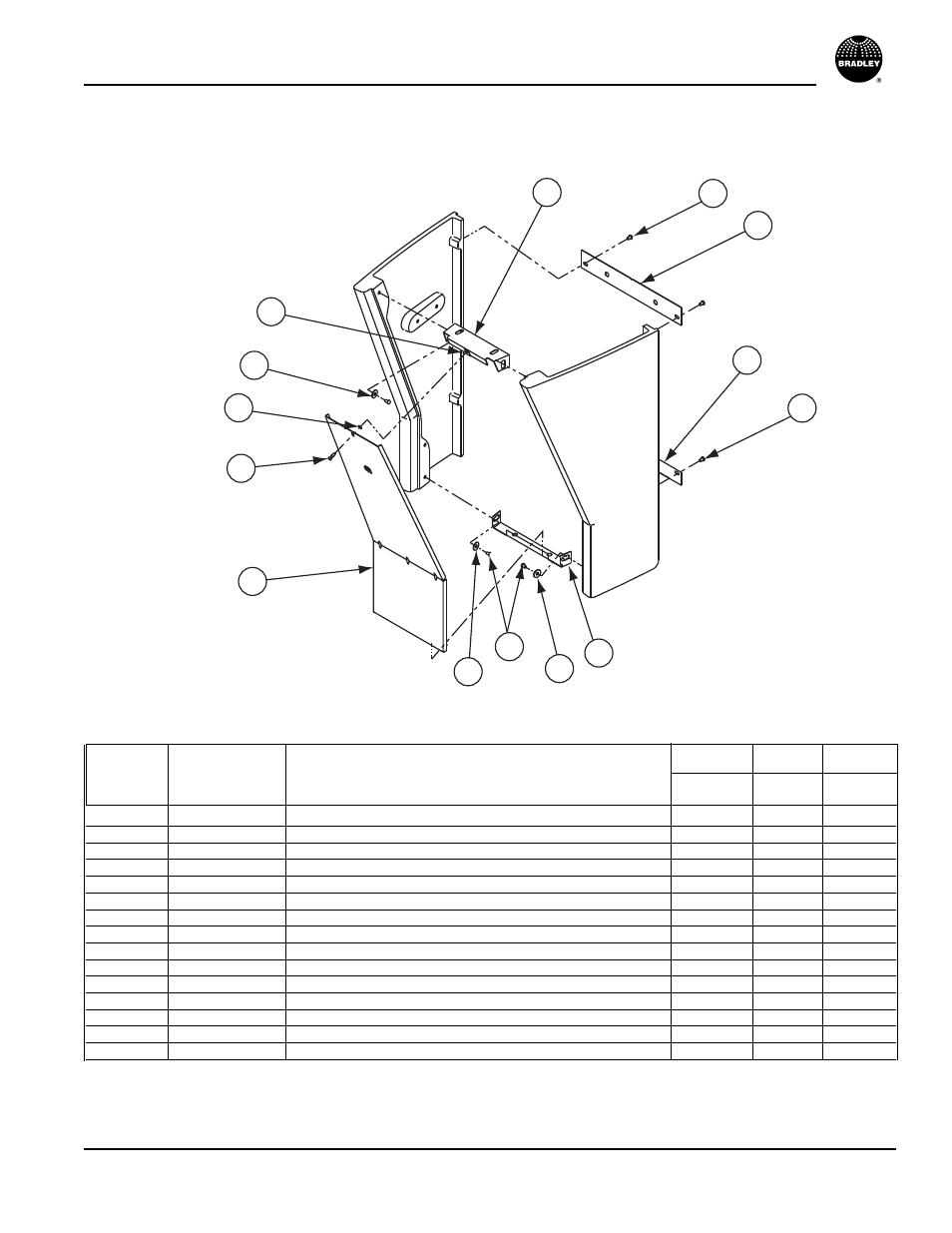

Floor Pedestal — Assembly
6
5
8
9
7
5
4
2
1
1
4
5
3
4
Corner Tri Quad
Item Part No. Description Qty Qty Qty
1 186-1589 Mounting Panel 2 2 —
1 186-1590 Mounting Panel — — 2
** 2 S04-056 Upper Bracket Assembly 1 1 —
** 2 S04-057 Upper Bracket Assembly — — 1
3 140-1011 Lower Bracket 1 1 —
3 140-1012 Lower Bracket — — 1
4 160-389 Screw ¼-20 x 1/2 8 8 8
5 142-002BJ Washer 4 4 4
6 146-055 Clip 1 1 1
7 S04-100 Access Panel — Standard Height 1 1 —
7 S04-095 Access Panel — Juvenile Height 1 1 —
7 S04-101 Access Panel — Standard Height — — 1
7 S04-096 Access Panel — Juvenile Height — — 1
* 8 132-031 Washer 1 1 1
* 9 147-019 Screw 1 1 1
Parts List — Floor Pedestal
* Access panel (Item 7) part numbers include the screw and washer.
** Upper Bracket Assembly includes Item 6.
