Bradley MF2922 - Manual (Page 5)

Parts and Service Guide
Terreon ® Multi-Fount Washfountains
Bradley Corporation • 215-1447 Rev. F; EN 07-005A 5 1/30/2008
Infrared (IR) — Valves (24V Plug-in Transformer)

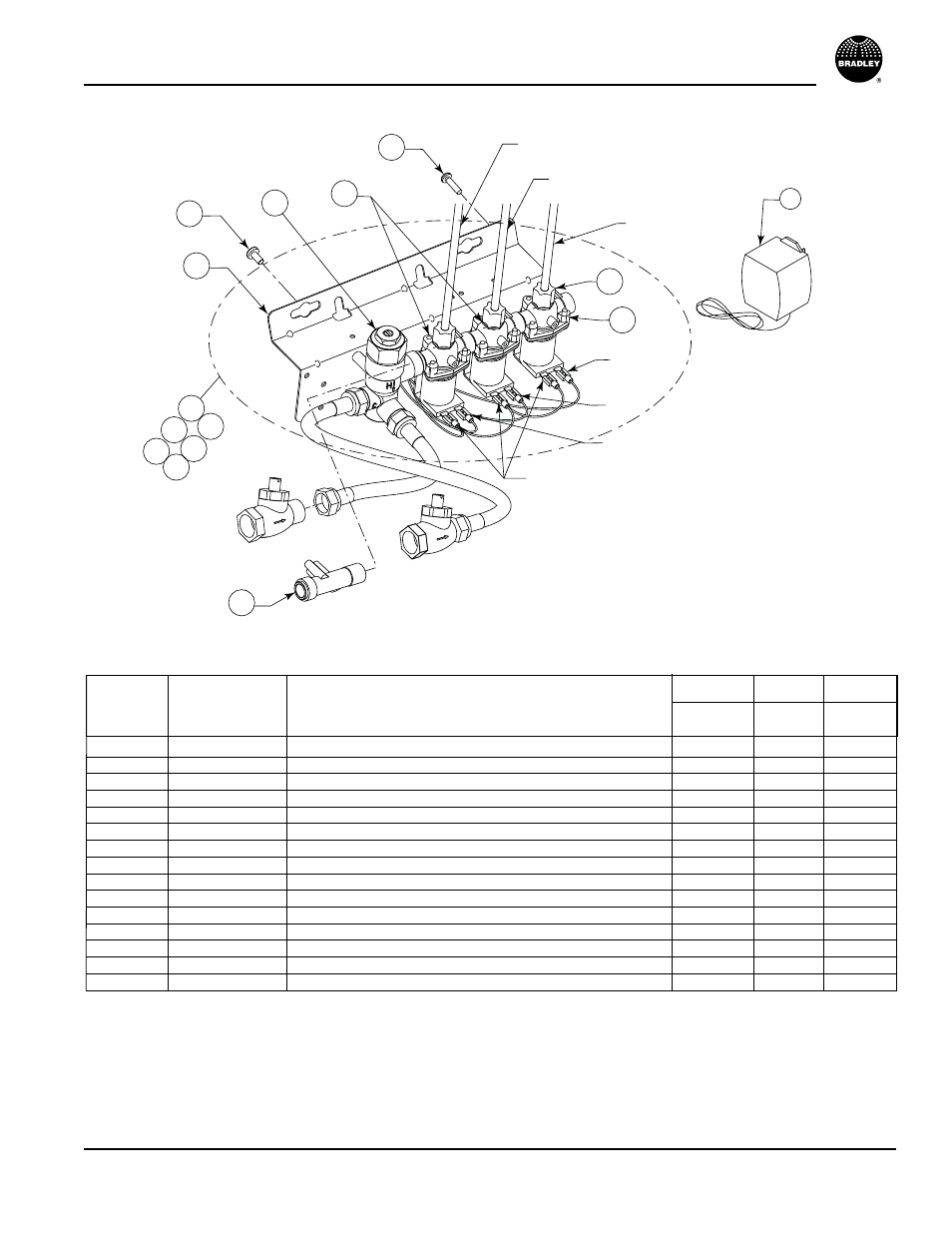

Parts List — Solenoid Assembly and Valve Parts
Red Supply Tube
(From Sprayhead)
Green Supply Tube
(From Sprayhead)
Black Supply Tube
(From Sprayhead)
Black Spade Terminal
Green Spade Terminal
Red Spade Terminal
White Jumper Terminals
1
2
3
6
4
5
9
7
12
11
8
13
14
10
Tri-Fount Shown
15
Corner Tri Quad
Item Part No. Description Qty Qty Qty
1 S45-2084 IR TMA Dual Valve Assembly (includes 7-13) 1 — —
2 S45-2085 IR TL Dual Valve Assembly (includes 8-14) 1 — —
3 S45-2090 IR TMA Tri Valve Assembly (includes 7-13) — 1 —
4 S45-2091 IR TL Tri Valve Assembly (includes 8-14) — 1 —
5 S45-2162 IR TMA Quad Valve Assembly (includes 7-13) — — 1
6 S45-2163 IR TL Quad Valve Assembly (includes 8-14) — — 1
7 S01-520 Vernatherm Valve, 4 GP 1 1 1
8 140-928 Bracket, Ganged Valve 1 1 1
9 P18-054 Screw 10-24 x 3/8 PN 2 2 2
10 S07-068A Solenoid Valve, 24 VAC, through 1 2 3
11 S07-068 Solenoid Valve, 24 VAC, closed 1 1 1
12 110-231 Compression Nut, 1/4" 2 3 4
13 160-447 Screw 8-16 x 5/8 PN 2 3 4
14 S39-685 Adapter, Valve Inlet 1 1 1
15 S83-152 Transformer 1 1 1
