Bradley MF2922 - Manual (Page 17)

Parts and Service Guide
Terreon ® Multi-Fount Washfountains
Bradley Corporation • 215-1447 Rev. F; EN 07-005A 17 1/30/2008

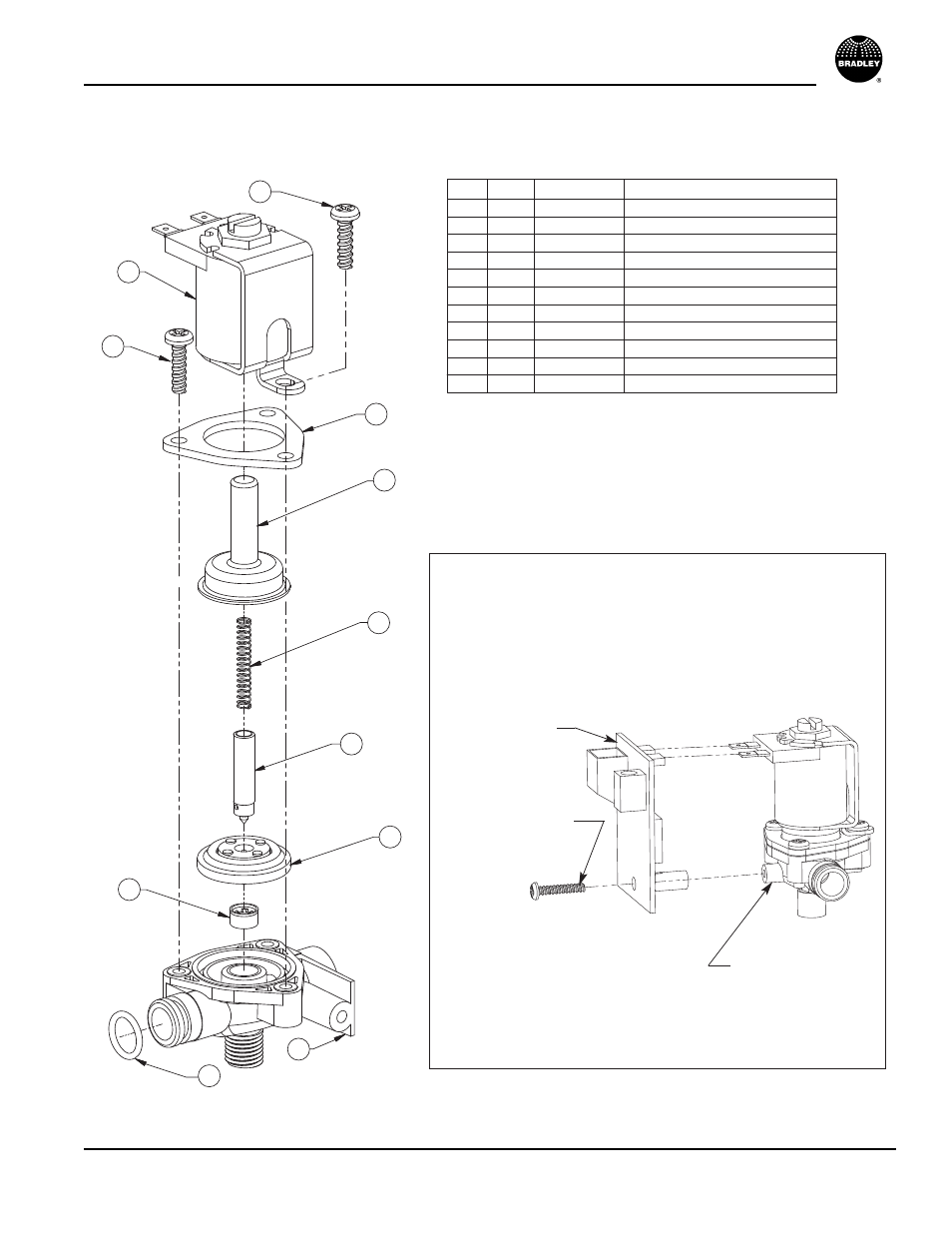

Battery Infrared Valve (BIR3) — Assembly —
Solenoid Valve S07-073 (closed body) and S07-073A (thru body)
VALVE ASSEMBLY
CLOSED BODY
(S07-073)
THRU BODY
(S07-073A)
SOLENOID VALVE W/CIRCUIT BOARD
CLOSED BODY
(S07-083)
THRU BODY
(S07-083A)
CIRCUIT BOARD
(S83-178)
PAN-HEAD SCREW
6-19 x 3/4"
(160-451)
1
2
3
4
5
6
7
8
9
8 DESCRIPTION QTY. PART NO. REF.
1 1 118-307 VALVE BODY, 1/4" CLOSED
2 1 269-983 DIAPHRAGM
3 1 192-017 ARMATURE
4 1 135-093 SPRING
5 1 269-1729 ARMATURE HOUSING
6 1 269-1730 CLAMP, ARMATURE HOUSING
7 1 269-1731 COIL, SOLENOID VALVE
8 3 160-447 SCREW, #8 X 5/8
9 1 125-165 O-RING, #2-013
1 1 118-307A VALVE BODY, 1/4" THRU
10
10 1 125-160 FLOW RESTRICTOR, .5 GPM
Parts not sold separately. Hand Tuned.
