Det-Tronics GP16XX Standard Gas Panel - Manual (Page 8)

1.1 95-8671 6
The buttons along the bottom (SETUP, FAULT, EVENT
LOGS, SILENCE, RESET) allow the user to interact with
the system to perform various tasks.
Their functions are as follows:
SETUP opens the Setup screen (Figure 6) for configuring
devices on the system.
FAUlT
is solid yellow when a fault is present. When
pressed, the Event Log screen is opened (Figure 9).
EVENT lOGS
opens the Event Log screen, displaying
all alarms and events (Figure 9).
SIlENCE
turns the sounder off during faults and alarms.
RESET resets all latched outputs that are no longer
active.
Point Display
The Point Display reports the current status of a selected
device, and it is accessed within the Main screen by
touching an active channel (Figure 5). The available
information includes Low Alarm, High Alarm, Fault,
Calibration Active, and Calibration Fault.
SETUP SCREEN
Device setup is initiated from the Setup screen
(Figure 6). Touching a channel in the Setup screen
opens the Setup Login screen (Figure 7), where a
user ID and password must be entered in order to
begin the setup procedure.
Setup login Screen
The Setup Login screen prevents unauthorized setup
of the system. Once the username and password are
entered correctly, the Device Setup screen becomes
accessible and devices can be setup for use.
NOTE
The default user ID is "ADMIN" and "DEC" is the
password.

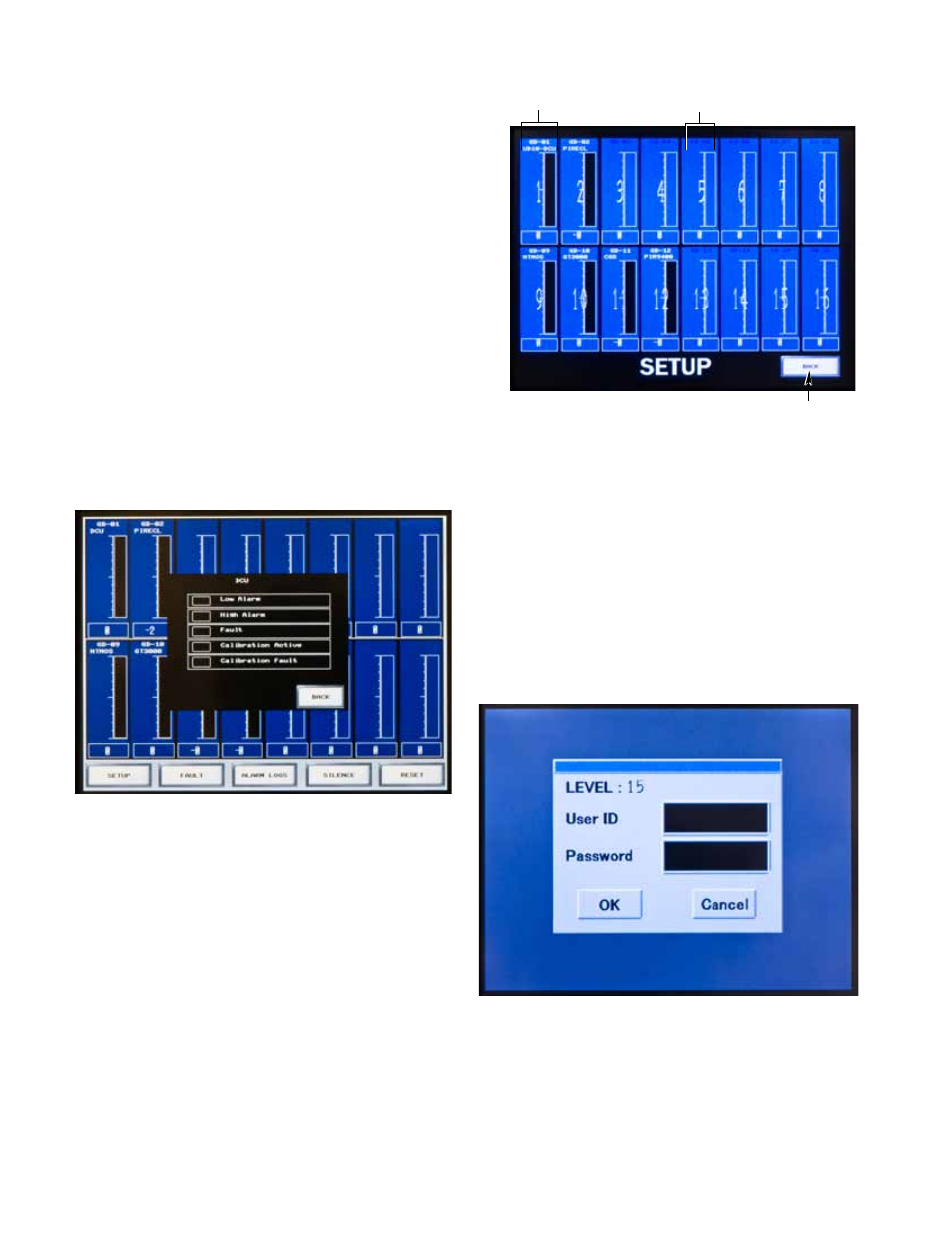

Figure 5—Point Display
Figure 6—Setup Screen
CONFIGURED
CHANNEL (Tagname
& Device ID
are bolded white)
UNCONFIGURED
CHANNEL (Tagname
& Device ID
are grayed out)
RETURN TO THE
MAIN SCREEN
Figure 7—Setup Login Screen
