4.2.3. Exhaust Connections
The LCC/LCD Exhaust port is located on the left side of the oven (Figure 7). Table 4 lists
the requirements for the exhaust stack for the LCC/LCD Oven.
Table 4. Exhaust Connection Requirements.
LCC/LCD1-16 Models LCC/LCD1-51Models
Size 1.88” x 2.88” (4.8 cm x 7.3 cm)
Flow 35 cfm (991.5 lpm) 73 CFM (2067 lpm)
Temperature LCC and LLC series:
500 °F (260°C)
LCC and LLC series:
500 °F (260°C)
LCD and LLD series:
662 °F (350°C)
LCD and LLD series:
662 °F (350°C)
4.2.4. Wiring & Power Connections

The oven must be hardwired directly to the disconnect switch on
the equipment panel (Figure 9).
Danger!
All grounding and safety equipment must be in compliance with
applicable codes, ordinances and accepted safe practices.

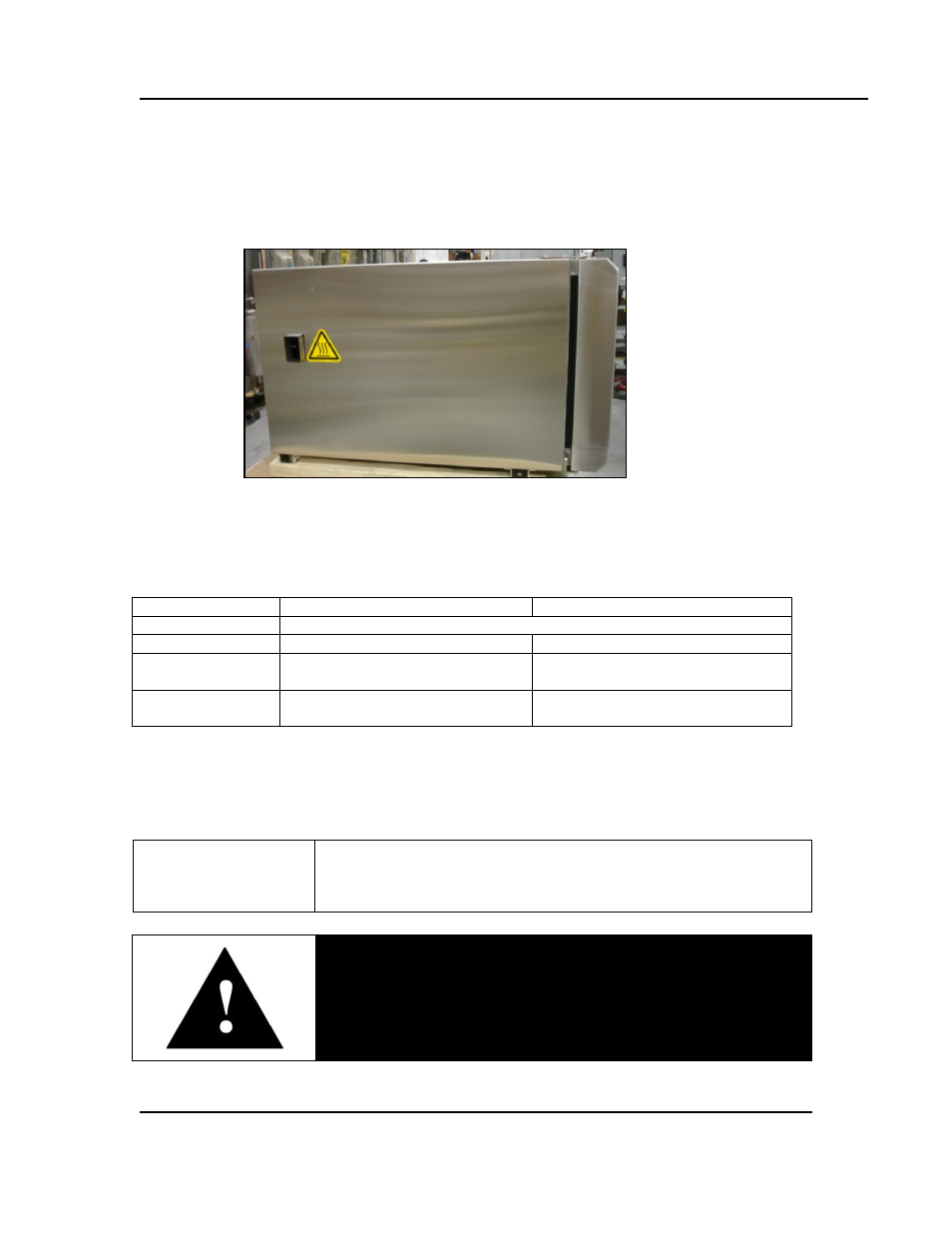

Figure 7. Exhaust Port on the Left Side of the LCC/LCD Oven.
