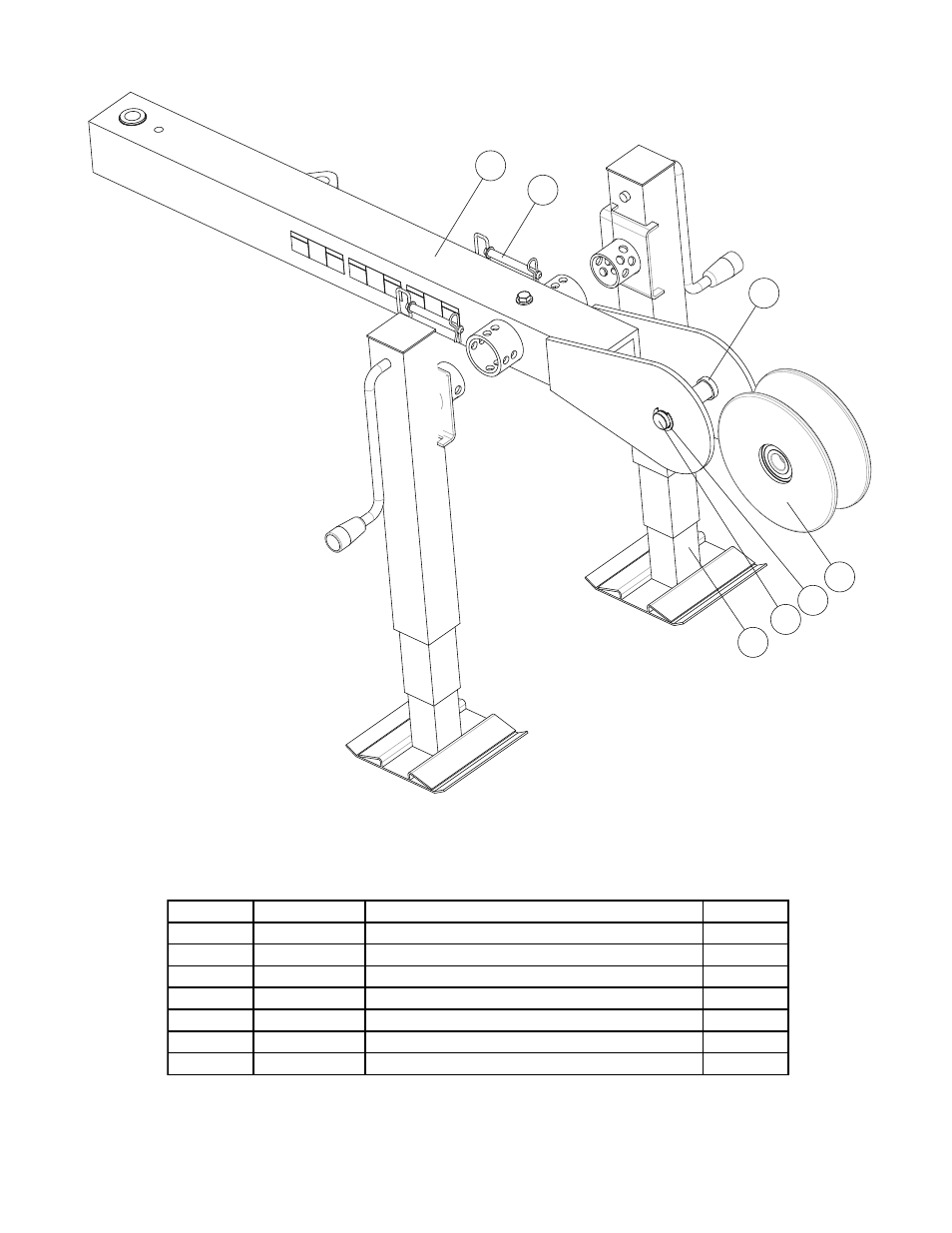

I. ARM, BOOM PIVOT ExTENSN APS-75

2

1

3

4

5

6

7

ITEM

PART NO

DESCRIPTION

QTY

1

02289141

PIN,HITCH .50" DIAM 4.0" GRIP

2

2

02290577

RING,RETAINING 1.188 EXT(1000)

2

3

08763155

JACK,505 BOOM ARMS-‐WELD

2

4

08771158

SHEAVE,MAIN ROLLER-‐NYL APS-‐75

1

5

08771170

SHAFT,SHEAVE-‐MAIN RLR APS-‐75

1

6

08771224

ARM,BOOM-‐PIVOT END-‐ASSY-‐APS75

1

7

08771258

TUBE,SPACER-‐MAIN ROLLER APS75

2

ARM,BOOM PIVOT EXTENSN APS-‐75

08771155
