14
• Tension Limiting status is displayed in the upper right hand corner of the Main
Screen (Figure 2)
• If Tension Limiting is turned ON, and the set tension limit is exceeded
during a pull, the controller will disable the pump by forcing it to neutral. The
Screen will display a red message instructing the user to return the joystick
to Neutral. Press the button labeled RESET to return to the main screen.
(Figure 8) NOTE: The system will not reset unless the joystick is in the
Neutral position.
E. RECORDING PULL DATA
The APS75 Electronic Controls allow the
user to record pull data, including time of
pull, pull distance, and pulling tensions.
Data can be downloaded to a computer
or exported via a USB flash drive. The
Electronic Display holds 16MB of onboard
flash memory, which is space for over 100
hours of pull data. Once full, the Recorder
will overwrite the oldest data in its memory.
(Figure 9)
• Press and hold RECORD button until
Record screen is displayed.
• Record status is displayed at the top of the RECORD screen as "RECORD
OFF" or "RECORD ON".
• To begin recording a new pull, scroll to START NEW and press SELECT.
• To continue recording a pull that has been interupted, select
CONTINUE PREV.
• Press RETURN to return to the Main screen.
• If the Record function is turned OFF, RECORDING OFF will be displayed
in a red block on the Main screen. If the Recording function is turned ON,
RECORDING will be displayed on the Main screen, along with the sample
rate at which points are being recorded (Figure 2)
• At the end of a pull, select STOP RECORDING to close the file.
F. ExPORTING DATA
Pull Data can be exported from the
APS75 Control Panel through a USB
port located in the Mobile Joystick
docking station. (Figure 10) Please see
the included addendum for additional
details for exporting and viewing data.

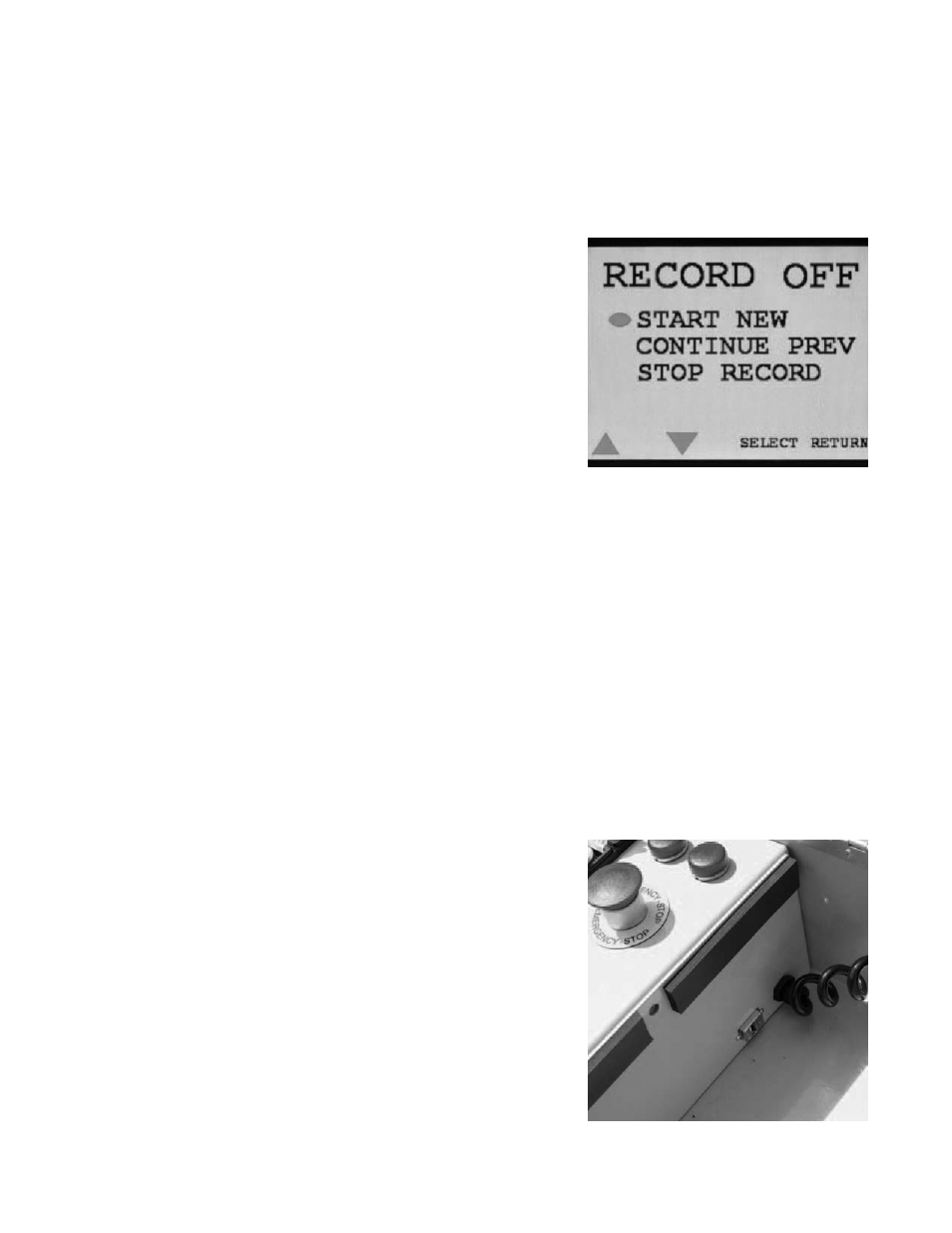

Figure 9. Record Screen
Figure 10. USB Port
