F. TRLR, APS-75 7500LB CABLE TRLR
ITEM
PART NO
DESCRIPTION
QTY
1
02264100
JACK,SDEWND-‐PIPE MNT-‐2,000 15"
1
2
02265001
RING,ADJUSTABLE TOW -‐ PAINTED
1
3
02289571
SPROCKET,IDLER HB40A17
1
4
02290186
LINK,HALF #40-‐1/2PITCH SINGLE
1
5
02290302
SPROCKET, 60BS20 X 1.00 BORE
1
6
02290304
SPROCKET, 40BS46 X 3/4 BORE
1
7
02290305
CHAIN,#60-‐3/4PTCH 70 PTCHS SGL
1
8
02290306
CHAIN,#40-‐1/2PTCH 76 PTCHS SGL
1
9
02290588
LINK,HALF #60-‐3/4PITCH SINGLE
1
10
08771134
GUARD,CHAIN-‐TKUP REEL APS-‐75
1
11
08771135
GUARD,LVLWIND SPRKT APS-‐75
1
12
08771139
FAIRLEAD,CAPSTAN MOUNT APS-‐75
1
13
08771147
FAIRLEAD,MIDWAY GUIDE APS-‐75
1
14
08771165
GUARD,REAR-‐CAPSTAN SHLD APS-‐75
1
15
08771180
GUARD,FRONT-‐CAPSTAN SHD APS-‐75
1
16
08771189
SHAFT,IDLER LEVELWIND APS-‐75
1
17
08771190
GUARD,CHAIN-‐COVER APS-‐75
1
18
08771207
CLUSTER,SPKT-‐TKUPREEL APS-‐75
1

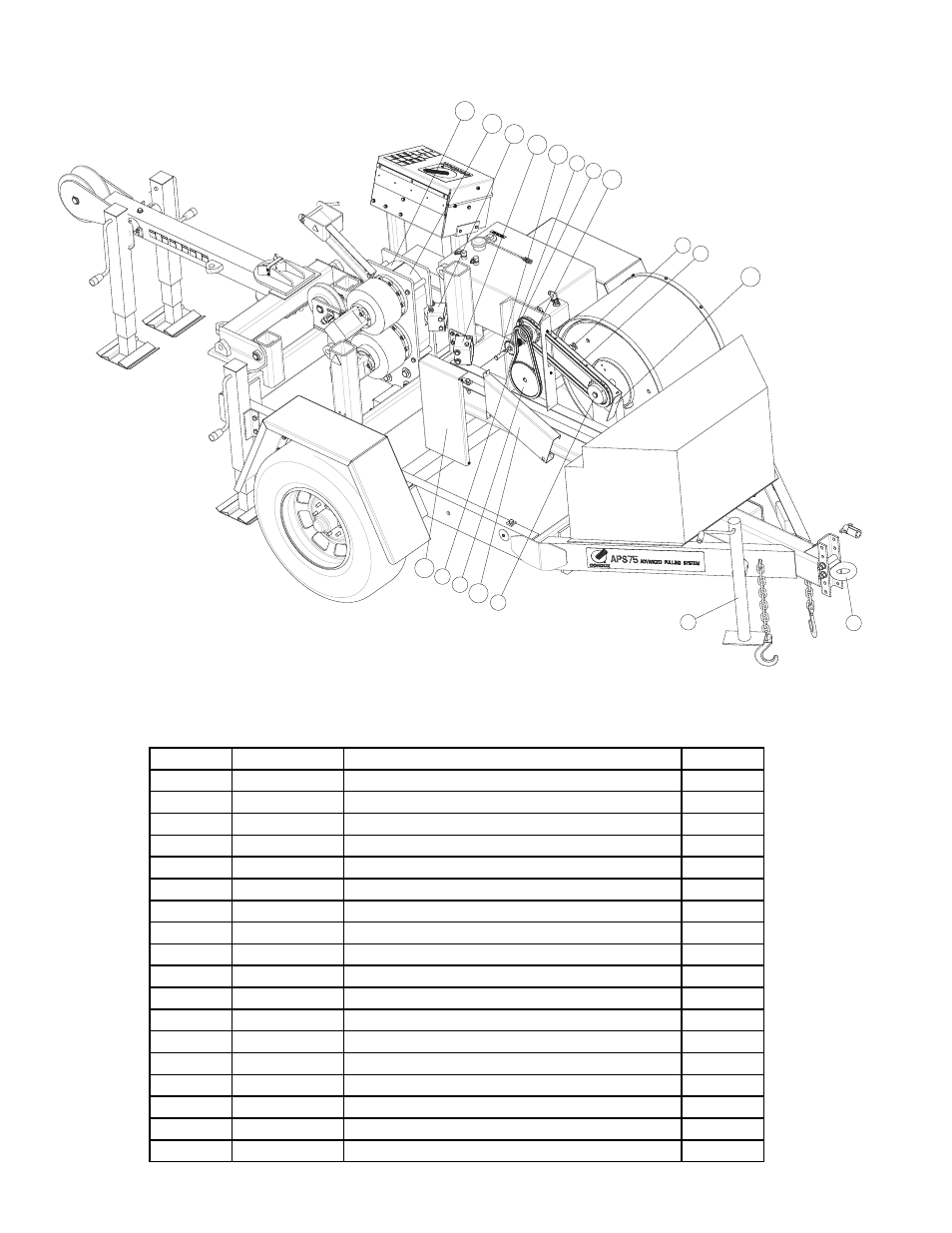

TRLR,APS-‐75 7500LB CABLE TRLR
08771000-‐2
10
11
1
2
12
13
14
15
17
8
7
5
6
18
3
16
4
9
