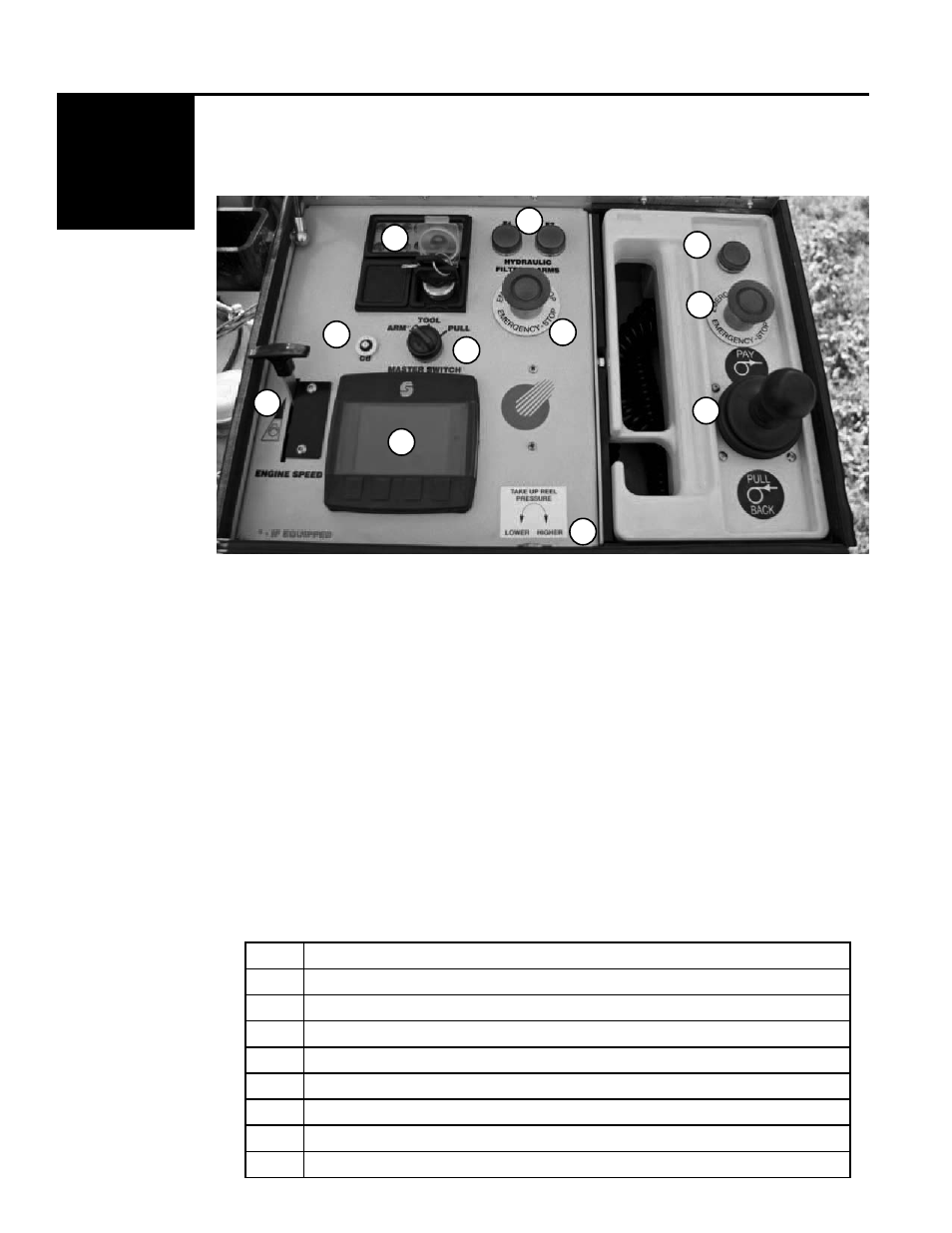

Versatile Control Panel
The Electronic Control and Monitoring system is an integral part of the APS75
Underground Pulling Trailer. In addition to monitoring pulling tensions, pull distance,
hydraulic pressures, and fuel levels, it also also allows the operator to record pull
data and set tension limits.
A. ENGINE SPEED THROTTLE.
Three detent settings for low, mid, and high speed. Engine runs no load at about
1000, 2200, and 3500 rpm, respectively
B. FUSE
15A fuse to protect control panel electronics
C. MASTER SWITCH
A three position switch - From left:
1. ARM* - This position can only be used with the optional hydraulic arm control.
see section 7.A on page 15 for detailed instructions on using this feature
2. TOOL - Engages 2000 psi, 7gpm tool circuit.
3. PULL - Switch will light when in this position. The machine will ONLY pull cable
when the Master Switch is in this position.
D. ENGINE MODULE
Engine module includes ignition key and engine indicator lights:
Engine Protection - On while engine is running properly
Fuel Indicator-
NOT USED
Oil Pressure - Turns on when oil pressure is low
Battery Recharge - Turns on in case of battery recharge failure
Coolant Over Temp - Turns on when coolant temp is above safe level
Red Light - Not Defined for this system
Red Light - Not Defined for this system
Glow Plug Indicator - Remains on while glowplugs are heating
Air Filter Indicator - Turn on in case of air filter obstruction
